SHARP(CHINA)INVESTMENT CO., LTD
2. Outdoor unit

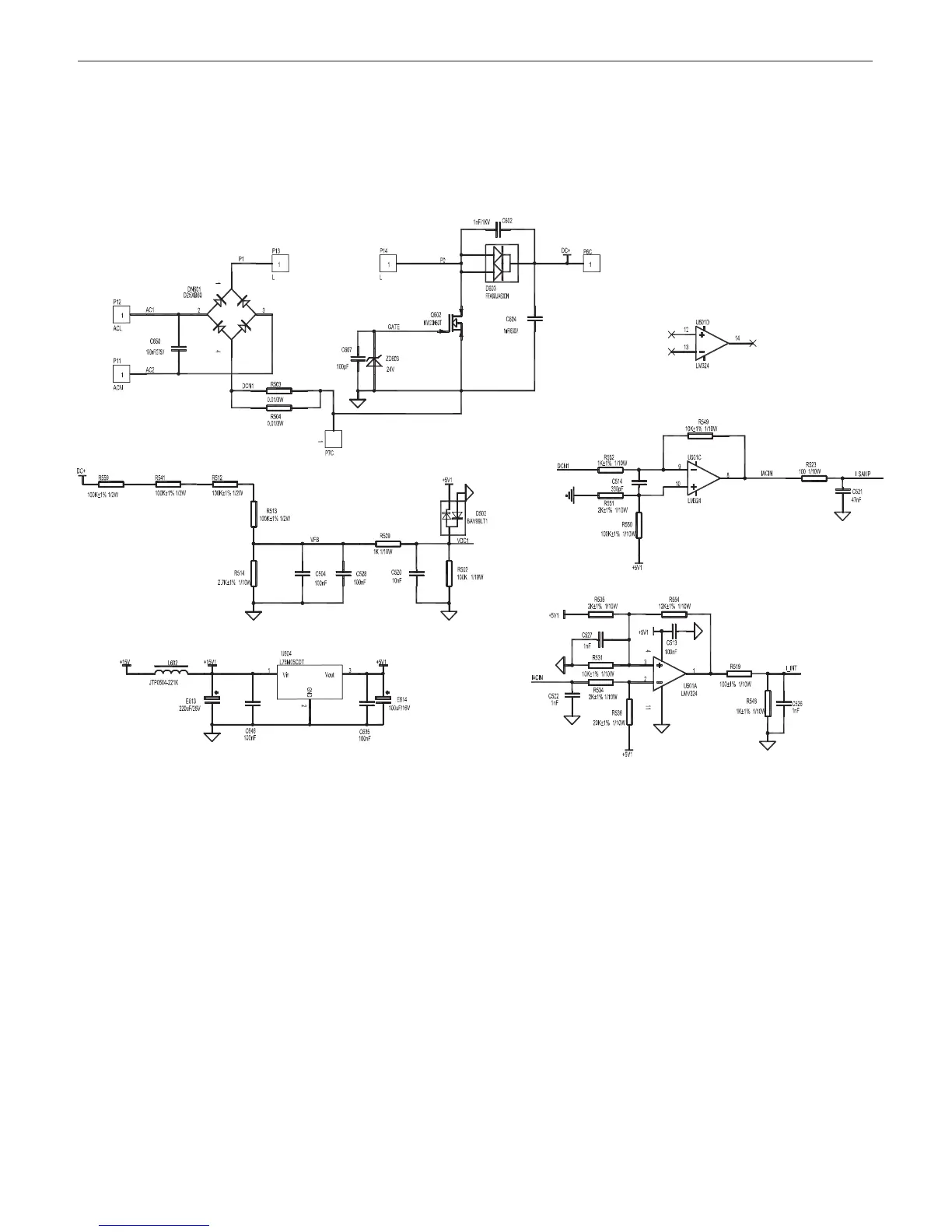

2.1. Electronic control circuit diagram
inverter modul board
AE-X9PSR/AE-X12PSR
2-8
