CHAPTER 4. REFRIGERATION CYCLE

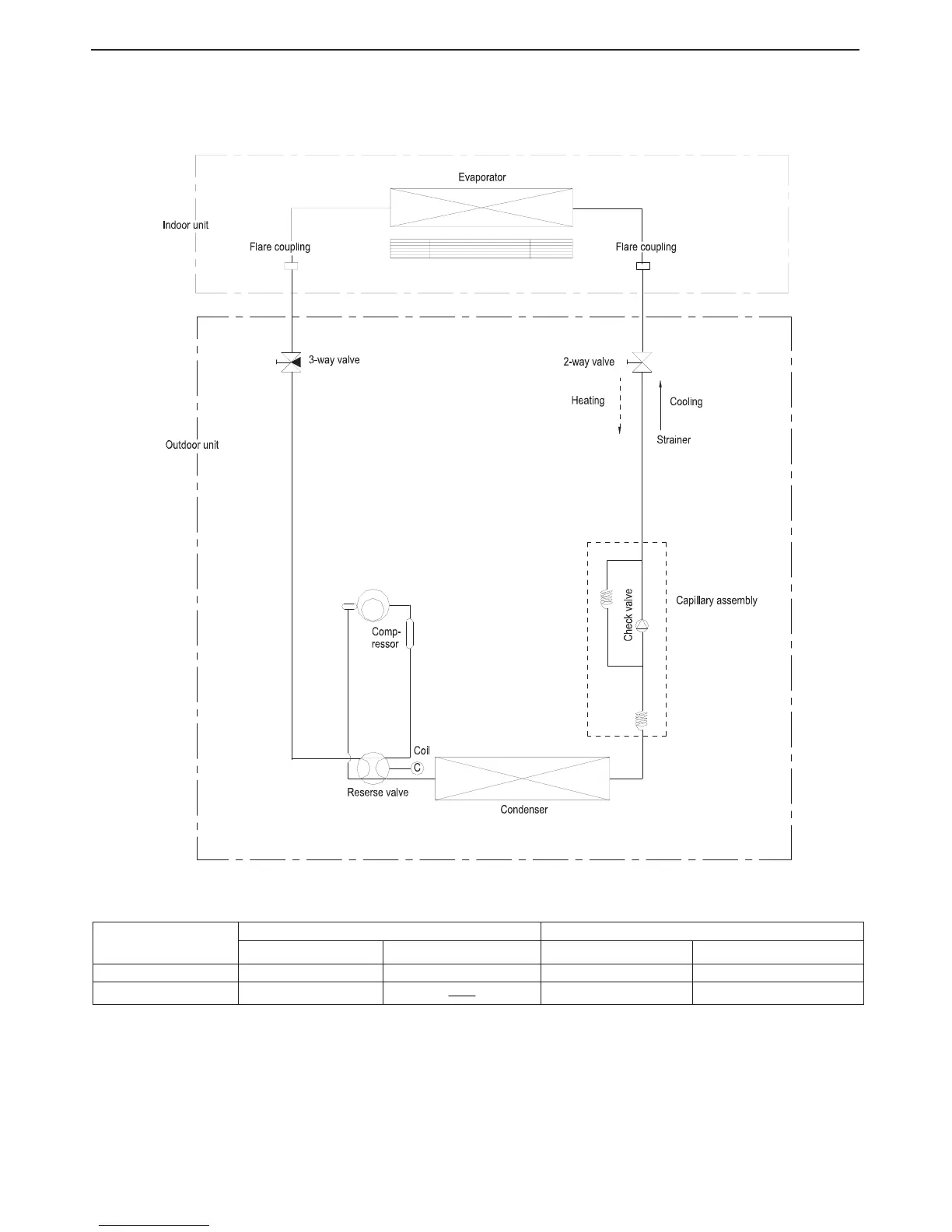

[1] SCHEMATIC DIAGRAM
[2] STANDARD CONDITION
Indoor side Outdoor side
Dry-bulb Temp. (°C) Relative Humidity (%) Dry-bulb Temp. (°C) Relative Humidity (%)
Cooling 27 47 35 40
Heating 20 7 87
[3] TEMPERATURE AT EACH PART AND PRESSURE IN 3-WAY VALVE
NOTE
1)Indoor fan speed: Hi
2)Vertical adjustment louver "front”, Horizontal adjustment louver "level"
3)Indoor air temp. : Cooling 27°C, Heating 20°C
4)Power source : 230V, 50Hz
5)Compressor speed : Rated frequency
