AYXPC18LR
2 – 7

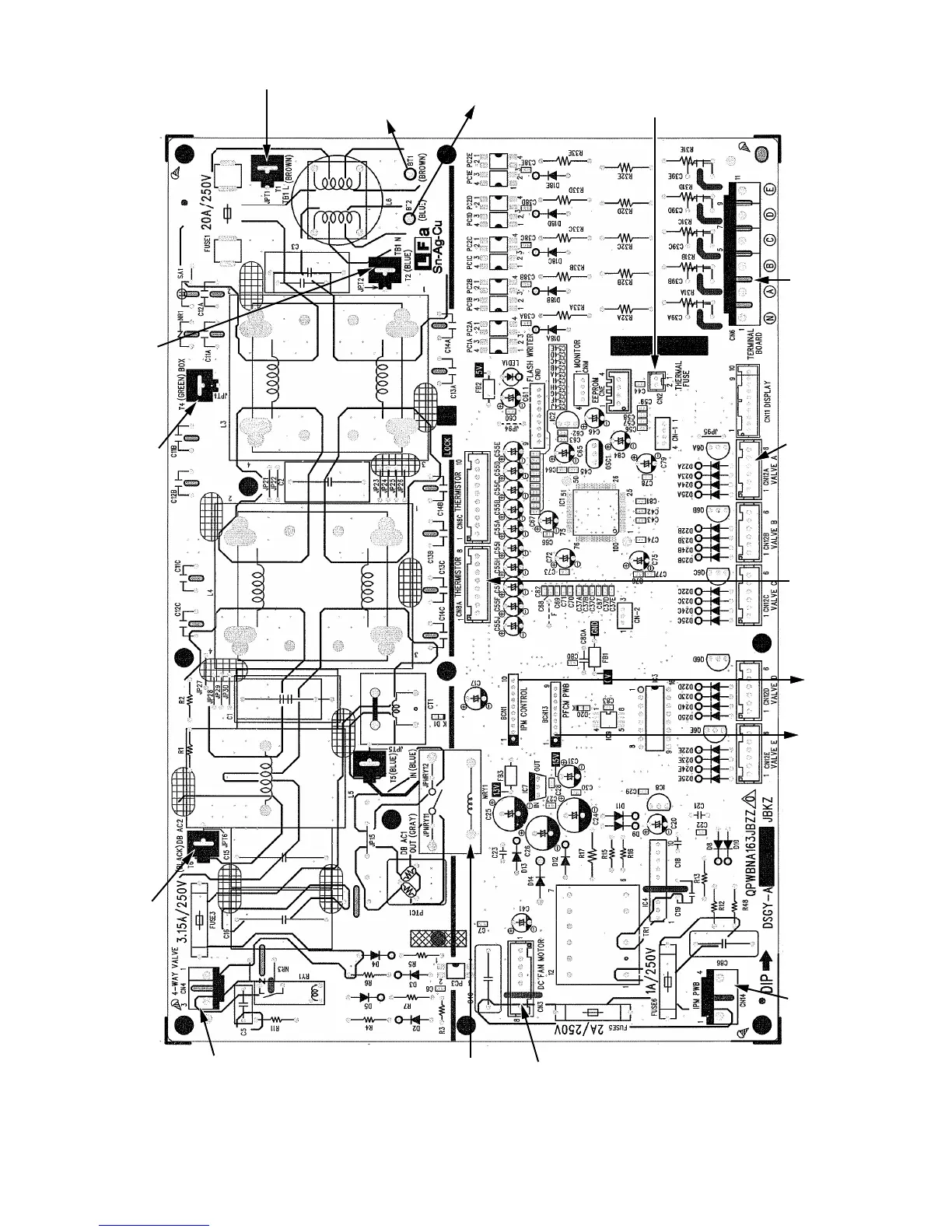

CONTROL BOARD P.W.B.
from TERMINAL BOARD "L" (POWER SUPPLY)
from TERMINAL BOARD "N" (POWER SUPPLY)
from TERMINAL BOARD
(THERMAL FUSE)
from TERMINAL BOARD
to TERMINAL BOARD "1"
to TERMINAL BOARD "N"
from DC FAN MOTOR
from 4WAY VALVE
from EXPANSION VALVE
from THERMISTOR
to IPM P.W.B.
to PFCM P.W.B.
from IPM P.W.B. "CN114"
from PFCM P.W.B. "AC1"
from PFCM P.W.B. "AC2"
from PCONTROL BOX
