AYXPC18LR
5 – 5

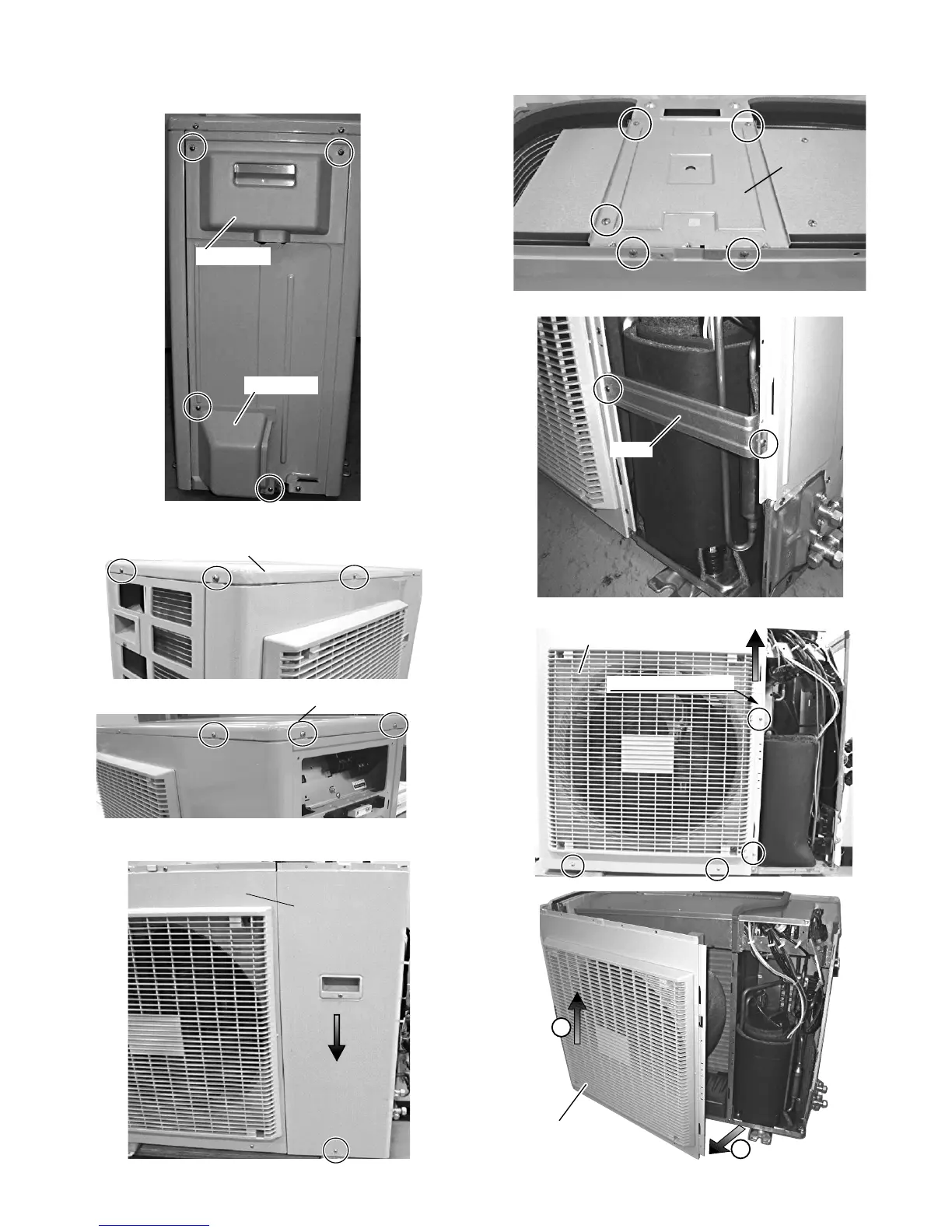

[2] OUTDOOR UNIT
1. Remove the 4 screws fixing the side cover and valve cover then
remove them..
2. Remove the 6 screws fixing the top plate, then remove it.
3. Remove the 1 screw fixing the front panel R and slide the front
panel R down, then remove it.
4. Remove the 5 screws fixing the motor angle T, then remove it.
5. Remove the 2 screws fixing the angle, then remove it.
6. Remove the 4 screws fixing the front panel L, then remove it.
Side cover
Valve cover
The hook is removed
Front panel L
To Next Page
