[3] REFRIGERANT PIPE INSTALLATION WORKS

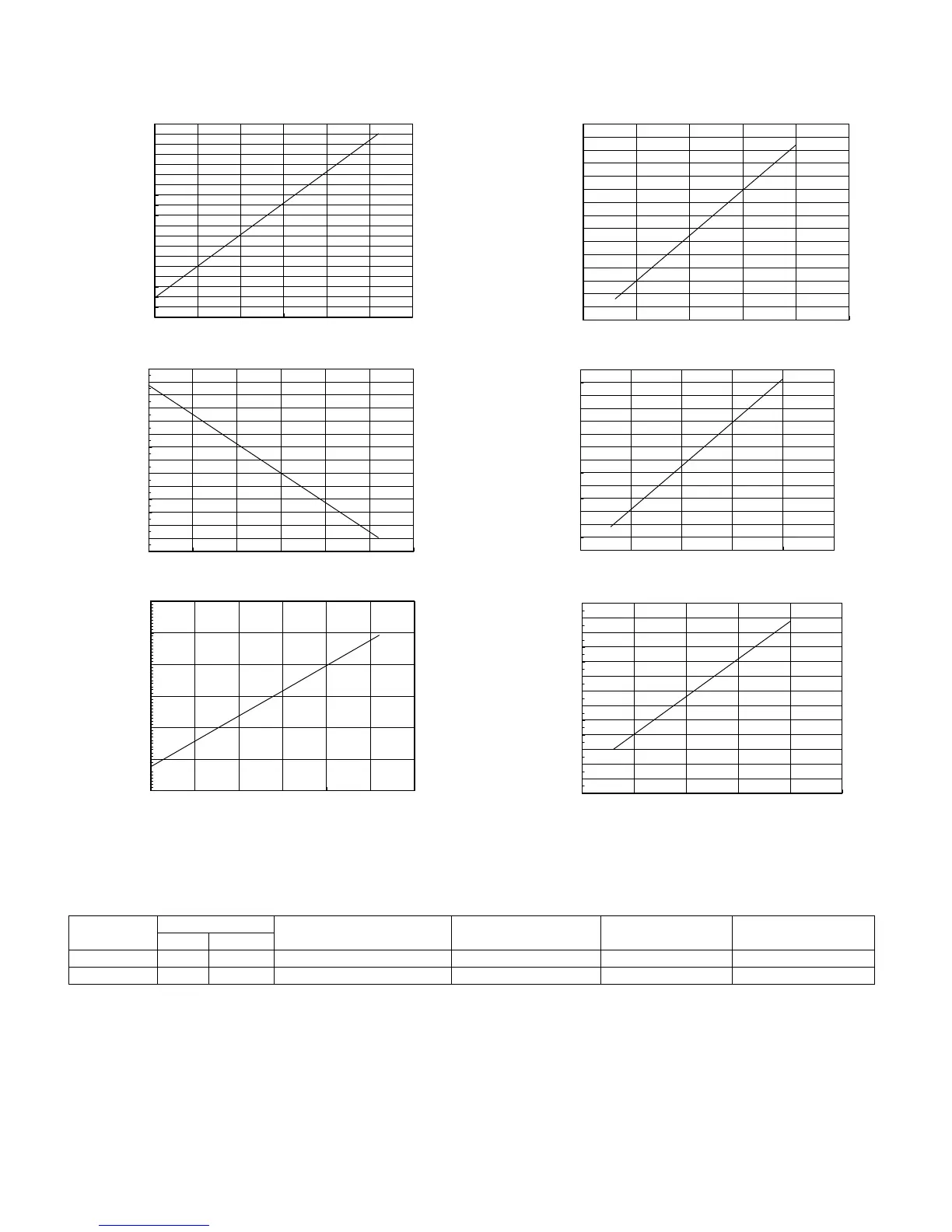

Refrigerant pipe length and level difference between the indoor and outdoor units.
Outside air temp.( ºC )
Outlet air temp.(
ºC
)
Outside air temp.( ºC )
Outside air temp.( ºC )
5.8
6.2
6.6
7.0
7.4
7.8
8.2
8.6
20 25 30 35 40 45 50
Cooling capacity(kW)
1600
1700
1800
1900
2000
2100
2200
2300
2400
2500
20 25 30 35 40 45 50
Input(W)
10.0
11.0
12.0
13.0
14.0
15.0
16.0
20 25 30 35 40 45 50
Outside air temp.( ºC)
Outside air temp.( ºC)
Outside temp.( ºC)
Outlet air temp.(
(ºC)
3.0
3.8
4.6
5.4
6.2
7.0
7.8
8.6
-10 -5 0 5 10 15
Heating capacity(kW)
1450
1550
1650
1750
1850
1950
2050
2150
-10 -5 0 5 10 15
Input (᳑)
32.0
34.0
36.0
38.0
40.0
42.0
44.0
-10 -5 0 5 10 15
MODEL PIPE SIZE STANDARD PERMISSIBLE
LENGTH
PERMISSIBLE LEVEL
DIFERENCE
CHARGE LESS
LENGTH
ADDITIONAL
CHARGE
GAS LIQUID
AY-XPC18LR 1/2" 1/4" 20m 10m 10m 20g
AY-XP24LR 5/8" 1/4" 30m 10m 10m 20g
