BD-HP90S
3 – 2

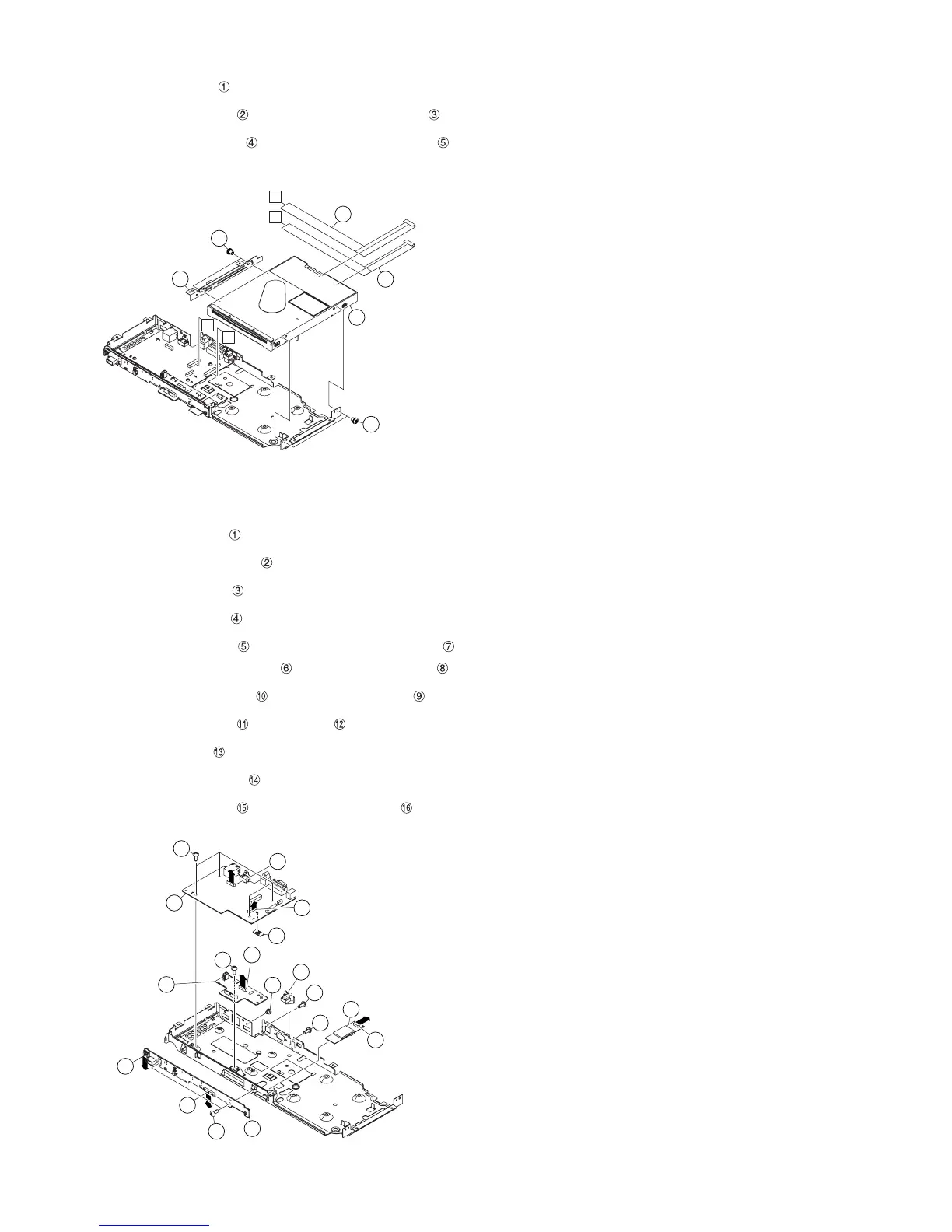

5. Removing the BD DRIVE Unit
1. Disconnect the 2 FFCs .
2. Remove the 2 lock screws and detach the BD DRIVE Unit .
3. Remove the 2 lock screws and detach the Drive Angle-L
from BD DRIVE Unit.
6. Removing the OPERATION Unit, LED Unit, Wire-
less LAN Unit and MAIN Unit
1. Detach the RC SW Knob .
2. Disconnect the USB connector .
3. Disconnect the connector .
4. Remove the 1 lock screw .
5. Remove the 2 lock screws and detach the OPERATION Unit
by pulling out the B to B connector ,and detach the LED Unit .
6. Detach the Wireless LAN Unit pulling out the connector .
7. Remove the 2 lock screws , 1 lock screw .
8. Detach the DC Holder .
9. Disconnect the 2 connectors .
10.Remove the 4 lock screws and detach the MAIN Unit .
FFC
1
FFC
BD DRIVE Unit
Drive Angle-L
1
3
a
b
b
a
4
5
2
USB connector
B to B connector
OPERATION Unit
Wireless LAN Unit
connector
5
4
DC Holder
9
7
11
11
13
12
3
LED Unit
10
connector
MAIN Unit
14
15
connector
14
RC SW Knob
1
16
6
connector
8
2
To Next Page
