NOTE
When you insert or remove a USB memory
device, be sure to turn the main power off.
*
NOTE
Some optical and/or HDMI cables may not fit in the compartment.•
16

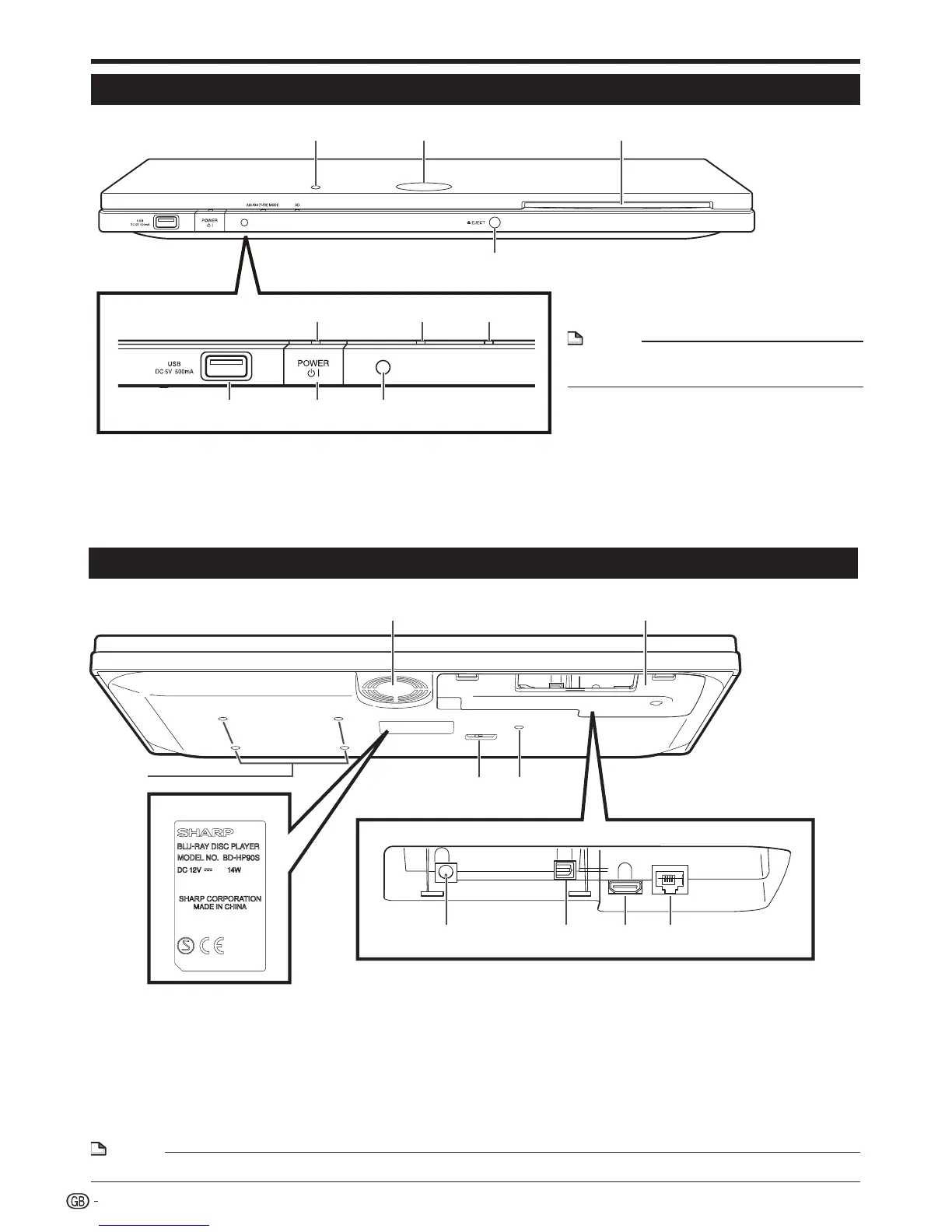

Main Unit (Front)
Major Components
1
5
8910
6 7
2 3
4
POWER B (On/Standby) indicator
(p. 25)
AQUOS PURE MODE indicator
(pp. 25, 27)
3D indicator (pp. 25, 27)
5
6
7
USB terminal (p. 34)
POWER B (Power) (p. 25)
Remote control sensor “Front”
(p. 19)
8
9
10
Remote control sensor “Top” (p. 19)
BD/DVD/CD mode indicator (p. 25)
Disc slot (p. 29)
EJECT (p. 29)
1
2
3
4
Main Unit (Rear)
1
3
4
5 6 7 8
2
9
DC IN terminal (p. 25)
OPTICAL DIGITAL AUDIO OUT terminal (p. 21)
HDMI OUT terminal (p. 20)
ETHERNET terminal (p. 22)
Screw holes for VESA 75 Mount
Screw size: M4 (Maximum length = Mount plate thickness + 6 mm)
Recommended tightening torque for M4 screws: 1.2±0.1N·m (12.2±1kgf·cm)
5
6
7
8
9
Cooling fan
The cooling fan operates while the
power to the Player is on.
Terminal cover (p. 18)
Selector switch for Remote control
sensor (p. 19)
Screw hole for installing the vertical
stand (p. 19)
1
2
3
4
Model label
