CD-C410W/C415W/C420W,CP-C410/C415/SR410
– 12 –
SW714 TUNING UP ON—OFF
SW715 TUNING DOWN ON—OFF
SW717 POWER ON—OFF
SW718 CLOCK ON—OFF
SW719 TIMER/SLEEP ON—OFF
SW721 MEMORY/SET ON—OFF
SW722 CD ON—OFF
SW723 TUNER ON—OFF
SW724 TAPE ON—OFF
SW725 AUX ON—OFF
SW961 AC VOLTAGE SELECTOR 110—127—
220—230-240
SWM 3 FOOL PROOF ON—OFF
SWM 4 F.A.S. ON—OFF
SWM 5 CAM ON—OFF
SW1 OPEN/CLOSE ON—OFF
SW2 MECHA UP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW301 SPAN SELECTOR 50/9-100/10
SW701 RANDOM/DEMO ON—OFF
SW702 VOLUME DOWN ON—OFF
SW703 X-BASS ON—OFF
SW704 VOLUME UP ON—OFF
SW705 OPEN/CLOSE ON—OFF
SW706 DISC SKIP ON—OFF
SW709 REC./PAUSE ON—OFF
SW710 UP ON—OFF
SW711 STOP ON—OFF
SW712 PLAY ON—OFF
SW713 DOWN ON—OFF
• The indicated voltage in each section is the one measured by
Digital Multimeter between such a section and the chassis
with no signal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
REF. NO DESCRIPTION POSITION POSITIONREF. NO DESCRIPTION

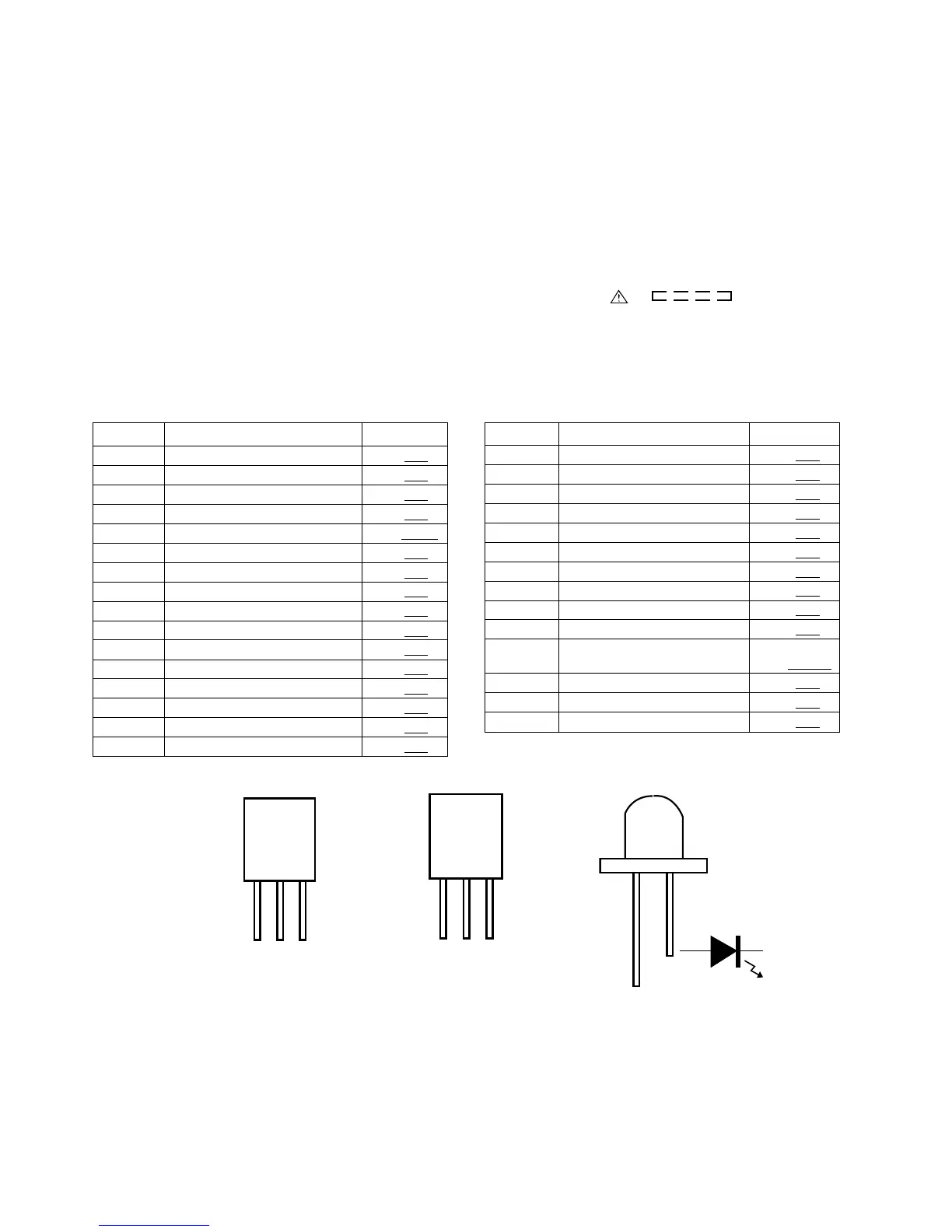

Figure 12 TYPES OF TRANSISTOR AND LED
KRC104 M
KRC107 M
KTA1266 GR
KTA1273 Y
KTC3199 GR
KTC3203 Y
2SA1015 GR
2SB561 C
2SC1845 F
2SC380 O
2SK246 GR
KRC102 M
2SD2012 Y
To Next Page
