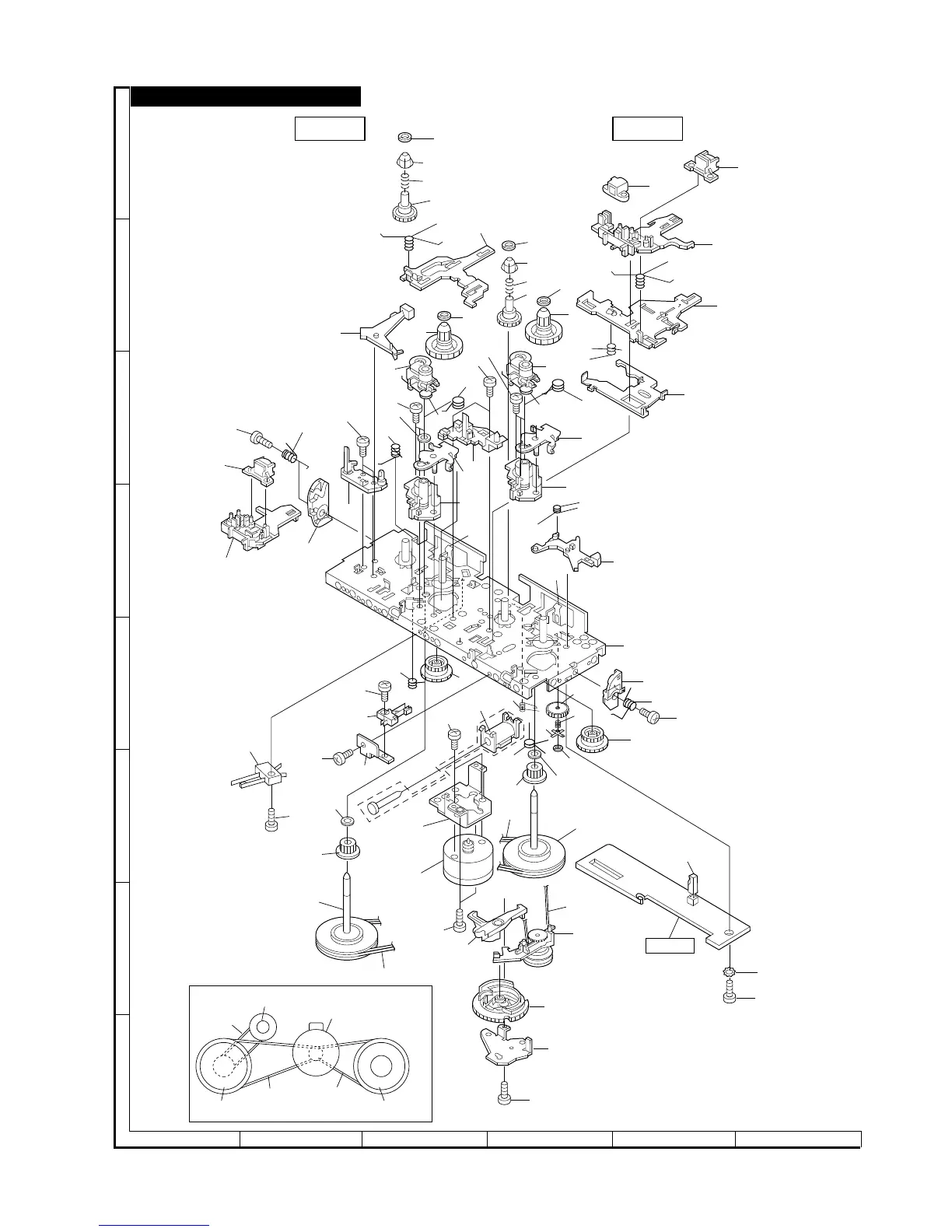

Figure 8 TAPE MECHANISM EXPLODED VIEW
A
B
C
D
E
F
G
H
1
23456
– 8 –
CD-C410W/CD-C415W/CD-C420W
8
504
504
504
504
6
6
39
23
56
24
25
34
3
7
7
38
18
4
506
33
55
17
22
2
37
38
27
20
42
19
21
26
20
13
35
502
30
507
SOLM2
28
1
52
53
506
9
502x2
501x2
503x2
503x2
503x3
44
10
16
11
29
43
45
503
505
13
SWM5
MM1
PWB-D
14
32
15
504
41
TAPE1 TAPE2
502
5
39
55
36
36
503x3
40
SWM3
SWM4
31
31
12
12
57
58
57
58
509
503
510
508
45
43
44
10
98
MOTOR
BELT CONNECTION
