CD-C470H,C470E,C480H/CP-C470H,C470E,C480H
– 18 –
SW723 REC/PAUSE ON—OFF
SW724 TUNING UP/TIME ON—OFF
SW725 VOLUME UP ON—OFF
SW726 X-BASS ON—OFF
SW727 4-SP SURROUND ON—OFF
[CD-C470H/C480H ONLY]
SW728 STOP ON—OFF
SW729 FWD ON—OFF
SW730 FF ON—OFF
SW731 MEMORY SET ON—OFF
SW732 TUNING DOWN/TIME ON—OFF
SW733 VOLUME DOWN ON—OFF
SW734 EQUALIZER/DEMO ON—OFF
SW735 3D SURROUND
[CD-C480H ONLY]
ON—OFF
SW736 REVERSE MODE ON—OFF
SW737 REV ON—OFF
SW738 REW ON—OFF
SW739 EDIT NORMAL ON—OFF
SW740 EDIT HIGH ON—OFF
SWM 1 T1 CrO2 ON—OFF
SWM 2 T2 CrO2 ON—OFF
SWM 3 REC FWD ON—OFF
SWM 4 REC RVS ON—OFF
SWM 5 F.A.S. ON—OFF
SWM 6 CAM ON—OFF
SW1 OPEN/CLOSE ON—OFF
SW2 MWCHA UP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW701 ON/STAND-BY ON—OFF
SW702 CLOCK ON—OFF
SW703 TIME/SLEEP ON—OFF
SW704 DISC 1 ON—OFF
SW705 DISC 2 ON—OFF
SW706 DISC 3 ON—OFF
SW707 DISC SKIP ON—OFF
SW708 OPEN/CLOSE ON—OFF
SW709 CD ON—OFF
SW710 TUNER/BAND ON—OFF
SW711 TAPE ON—OFF
SW712 VIDEO ON—OFF
SW713 EON [CD-C470H/C480H ONLY] ON—OFF
SW714 PTY/TI SEARCH ON—OFF
[CD-C470H/C480H ONLY]
SW715 ASPM [CD-C470H/C480H ONLY] ON—OFF
SW716 DISPLAY MODE ON—OFF
[CD-C470H/C480H ONLY]
SW717 CENTER MODE/PHANTOM ON—OFF
SW719 CENTER MODE/NORMAL ON—OFF
SW721 DOLBY PRO LOGIC/BYPASS ON—OFF
• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.

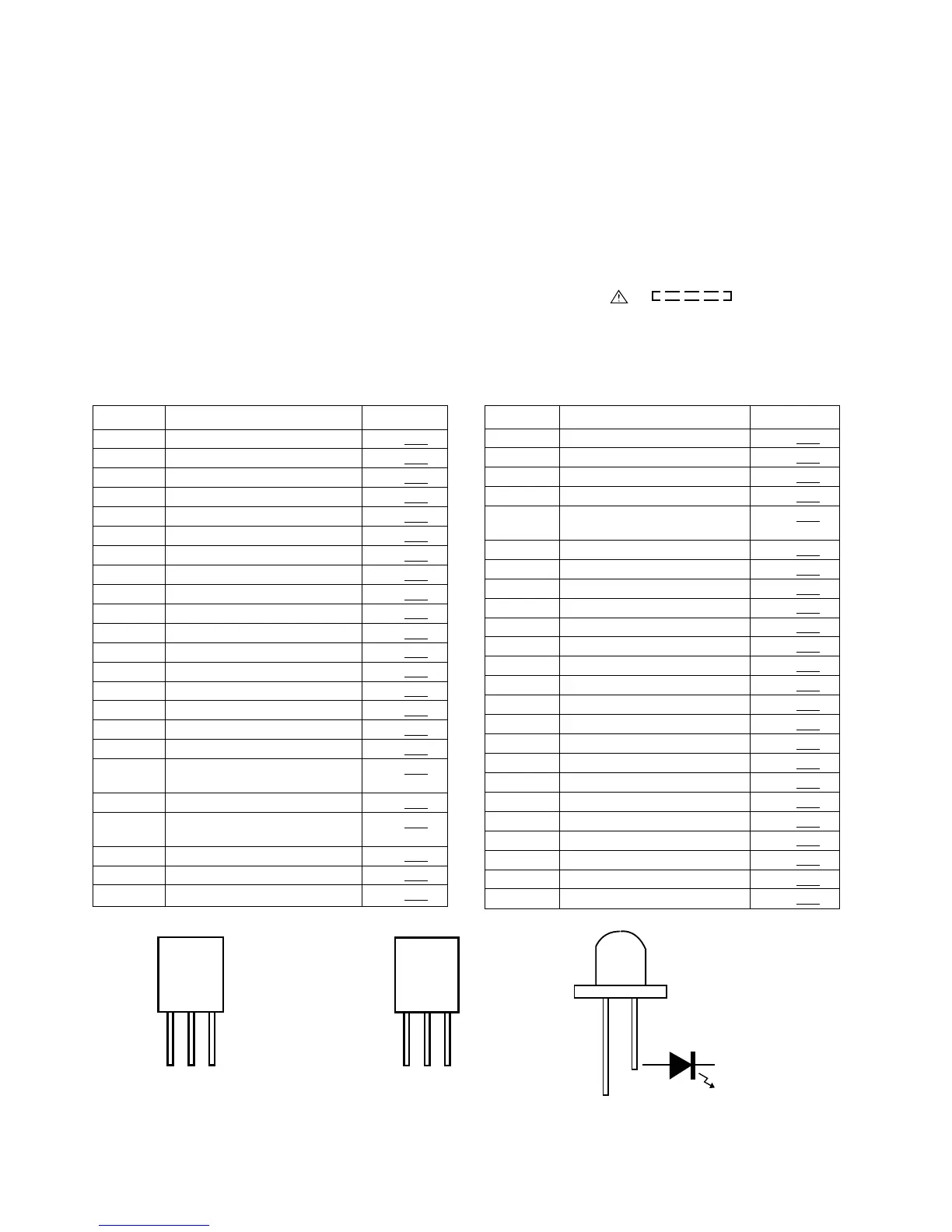

REF. NO DESCRIPTION POSITION POSITIONREF. NO DESCRIPTION
Figure 18 TYPES OF TRANSISTOR AND LED
ECB
(S)(G)(D)
(1) (2) (3)
FRONT
VIEW
2SA2878 A
2SK246 GR
2SC2236 Y
2SC380 O
KRC102 M
KRC104 M
KRA107 M
KRC107 M
KTA1266 GR
KTC3199 GR
KTC3203 Y
2SD2012
2SC1845 F
KTA1271 Y
KTA1273 Y
To Next Page
