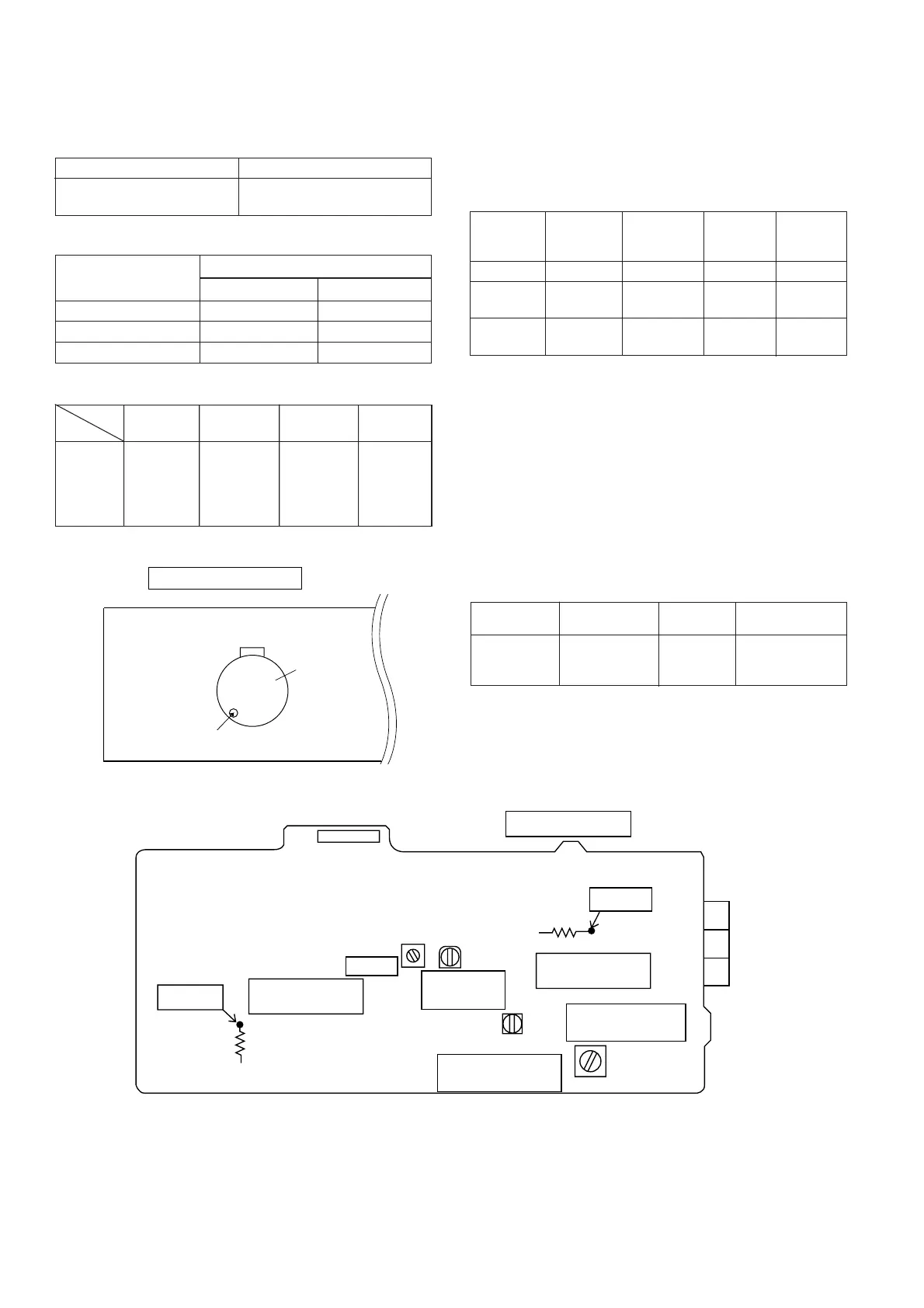

CD-C811W/821W
– 10 –
MECHANISM SECTION
• Driving Force Check
Torque Meter
Specified Value
Play: TW-2412 Tape 1: Over 80 g
Tape 2: Over 80 g
• Torque Check
Torque Meter
Tape 2
Play: TW-2111 30 to 60 g. cm 30 to 60 g.cm
Fast forward: TW-2231 — 60 to 120 g.cm
Rewind: TW-2231 — 60 to 120 g.cm
Specified
Value
Adjusting
Point
Instrument
Connection
Test Tape
Normal MTT-111 Variable 3,000 ± Speaker
speed resistor in 30 Hz terminal
motor (Load
(MM1) resistance:
8 ohms)
ADJUSTMENT
Specified Value
Tape 1
• Tape Speed
Figure 10-1 ADJUSTMENT POINTS
TAPE MECHANISM
MM 1
Motor
Variable resistor in motor
Figure 10-2 ADJUSTMENT POINTS
• FM
Notes:
1: Description of the "FM IF Adjustment" is not carried on this
Manual. It is because the IF coil in the FM front end section
has been best adjusted in the factory so that its further
adjustment is not needed at the field. When replacing the
FM front end assembly, no adjustment is needed either.
2: The parts in the FM front end section are prepared in a
complete unit, so you can't obtain each part individually
Adjusting
Parts
Instrument
Connection
Frequency
Display
Frequency
• FM Mute Level
Signal generator: 1 kHz, 40 kHz dev., FM modulated
98.00 MHz 98.00 MHz VR351 Input: Antenna
(25 dBµV) Output: Speaker
Terminal
TP302
R357
T351
VR351
FM MUTE
LEVEL
R336
TP301
FE301
IC303
T306
T302
SO301
ANTENNA
TERMINAL
TUNER PWB
CNP303
AM IF
AM BAND
COVERAGE fL
AM
TRACKING fH
TUNER SECTION
fL: Low-range frequency
fH: High-renge frequency
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
Test Stage
Frequency
Frequency
Display
Setting/
Adjusting
Parts
Instrument
Connection
IF 450 kHz 1,602 kHz T351 *1
AM Band — 531 kHz (fL): T306 *2
Coverage 1.1 ± 0.1 V
AM 990 kHz 990 kHz (fH): T302 *1
Tracking
*1. Input: Antenna, Output: TP302
*2. Input: Antenna, Output: TP301
To Next Page
