CD-DD4500
A
B
C
D
E
F
G
H
1
23456

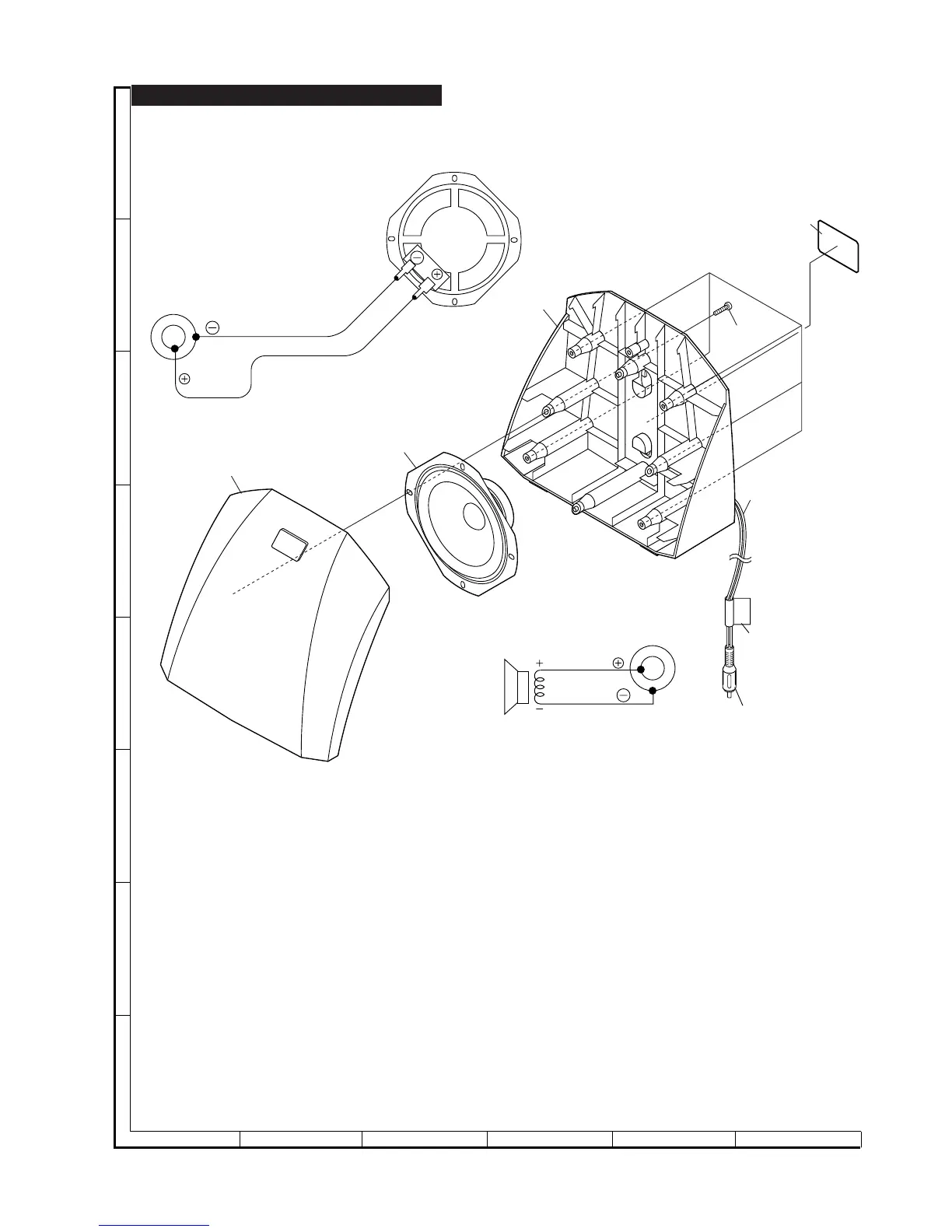

Figure 14 SPEAKER EXPLODED VIEW (3/3)
– 14 –
GBOXS2008AWM1/GBOXS4008AWM1
SURROUND
904x6
SP1,2
901
902
903
905
SP1,2
SP1,2
BLACK WITH
BROKEN WHITE
TAG
LABEL
RCA PIN
