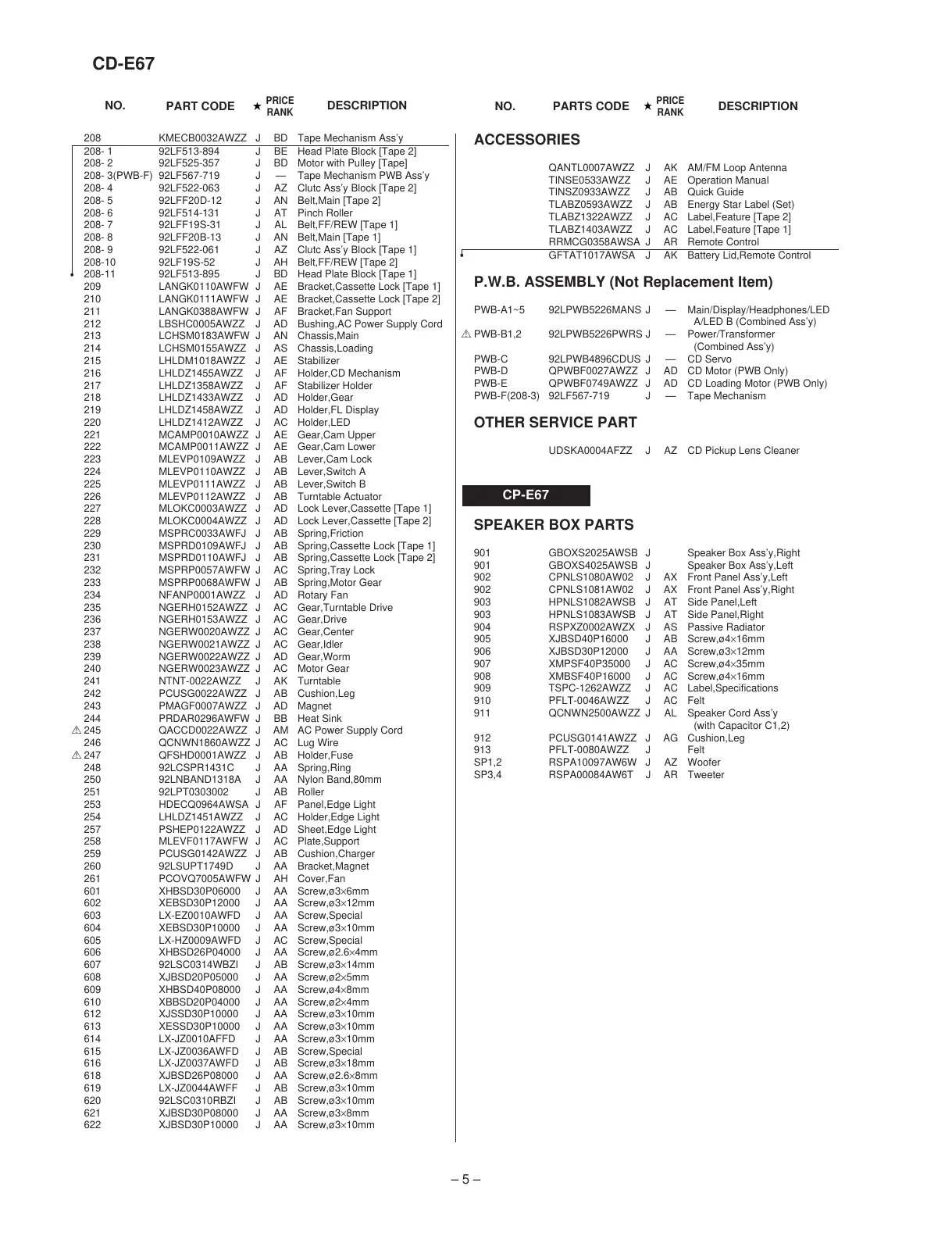

CD-E67
– 5 –
CP-E67
208 KMECB0032AWZZ J BD Tape Mechanism Ass’y
208- 1 92LF513-894 J BE Head Plate Block [Tape 2]
208- 2 92LF525-357 J BD Motor with Pulley [Tape]
208- 3(PWB-F) 92LF567-719 J — Tape Mechanism PWB Ass’y
208- 4 92LF522-063 J AZ Clutc Ass’y Block [Tape 2]
208- 5 92LFF20D-12 J AN Belt,Main [Tape 2]
208- 6 92LF514-131 J AT Pinch Roller
208- 7 92LFF19S-31 J AL Belt,FF/REW [Tape 1]
208- 8 92LFF20B-13 J AN Belt,Main [Tape 1]
208- 9 92LF522-061 J AZ Clutc Ass’y Block [Tape 1]
208-10 92LF19S-52 J AH Belt,FF/REW [Tape 2]
208-11 92LF513-895 J BD Head Plate Block [Tape 1]
209 LANGK0110AWFW J AE Bracket,Cassette Lock [Tape 1]
210 LANGK0111AWFW J AE Bracket,Cassette Lock [Tape 2]
211 LANGK0388AWFW J AF Bracket,Fan Support
212 LBSHC0005AWZZ J AD Bushing,AC Power Supply Cord
213 LCHSM0183AWFW J AN Chassis,Main
214 LCHSM0155AWZZ J AS Chassis,Loading
215 LHLDM1018AWZZ J AE Stabilizer
216 LHLDZ1455AWZZ J AF Holder,CD Mechanism
217 LHLDZ1358AWZZ J AF Stabilizer Holder
218 LHLDZ1433AWZZ J AD Holder,Gear
219 LHLDZ1458AWZZ J AD Holder,FL Display
220 LHLDZ1412AWZZ J AC Holder,LED
221 MCAMP0010AWZZ J AE Gear,Cam Upper
222 MCAMP0011AWZZ J AE Gear,Cam Lower
223 MLEVP0109AWZZ J AB Lever,Cam Lock
224 MLEVP0110AWZZ J AB Lever,Switch A
225 MLEVP0111AWZZ J AB Lever,Switch B
226 MLEVP0112AWZZ J AB Turntable Actuator
227 MLOKC0003AWZZ J AD Lock Lever,Cassette [Tape 1]
228 MLOKC0004AWZZ J AD Lock Lever,Cassette [Tape 2]
229 MSPRC0033AWFJ J AB Spring,Friction
230 MSPRD0109AWFJ J AB Spring,Cassette Lock [Tape 1]
231 MSPRD0110AWFJ J AB Spring,Cassette Lock [Tape 2]
232 MSPRP0057AWFW J AC Spring,Tray Lock
233 MSPRP0068AWFW J AB Spring,Motor Gear
234 NFANP0001AWZZ J AD Rotary Fan
235 NGERH0152AWZZ J AC Gear,Turntable Drive
236 NGERH0153AWZZ J AC Gear,Drive
237 NGERW0020AWZZ J AC Gear,Center
238 NGERW0021AWZZ J AC Gear,Idler
239 NGERW0022AWZZ J AD Gear,Worm
240 NGERW0023AWZZ J AC Motor Gear
241 NTNT-0022AWZZ J AK Turntable
242 PCUSG0022AWZZ J AB Cushion,Leg
243 PMAGF0007AWZZ J AD Magnet
244 PRDAR0296AWFW J BB Heat Sink
1 245 QACCD0022AWZZ J AM AC Power Supply Cord
246 QCNWN1860AWZZ J AC Lug Wire
1 247 QFSHD0001AWZZ J AB Holder,Fuse
248 92LCSPR1431C J AA Spring,Ring
250 92LNBAND1318A J AA Nylon Band,80mm
251 92LPT0303002 J AB Roller
253 HDECQ0964AWSA J AF Panel,Edge Light
254 LHLDZ1451AWZZ J AC Holder,Edge Light
257 PSHEP0122AWZZ J AD Sheet,Edge Light
258 MLEVF0117AWFW J AC Plate,Support
259 PCUSG0142AWZZ J AB Cushion,Charger
260 92LSUPT1749D J AA Bracket,Magnet
261 PCOVQ7005AWFW J AH Cover,Fan
601 XHBSD30P06000 J AA Screw,ø3×6mm
602 XEBSD30P12000 J AA Screw,ø3×12mm
603 LX-EZ0010AWFD J AA Screw,Special
604 XEBSD30P10000 J AA Screw,ø3×10mm
605 LX-HZ0009AWFD J AC Screw,Special
606 XHBSD26P04000 J AA Screw,ø2.6×4mm
607 92LSC0314WBZI J AB Screw,ø3×14mm
608 XJBSD20P05000 J AA Screw,ø2×5mm
609 XHBSD40P08000 J AA Screw,ø4×8mm
610 XBBSD20P04000 J AA Screw,ø2×4mm
612 XJSSD30P10000 J AA Screw,ø3×10mm
613 XESSD30P10000 J AA Screw,ø3×10mm
614 LX-JZ0010AFFD J AA Screw,ø3×10mm
615 LX-JZ0036AWFD J AB Screw,Special
616 LX-JZ0037AWFD J AB Screw,ø3×18mm
618 XJBSD26P08000 J AA Screw,ø2.6×8mm
619 LX-JZ0044AWFF J AB Screw,ø3×10mm
620 92LSC0310RBZI J AB Screw,ø3×10mm
621 XJBSD30P08000 J AA Screw,ø3×8mm
622 XJBSD30P10000 J AA Screw,ø3×10mm
ACCESSORIES
QANTL0007AWZZ J AK AM/FM Loop Antenna
TINSE0533AWZZ J AE Operation Manual
TINSZ0933AWZZ J AB Quick Guide
TLABZ0593AWZZ J AB Energy Star Label (Set)
TLABZ1322AWZZ J AC Label,Feature [Tape 2]
TLABZ1403AWZZ J AC Label,Feature [Tape 1]
RRMCG0358AWSA J AR Remote Control
GFTAT1017AWSA J AK Battery Lid,Remote Control
P.W.B. ASSEMBLY (Not Replacement Item)
PWB-A1~5 92LPWB5226MANS J — Main/Display/Headphones/LED
A/LED B (Combined Ass’y)
1 PWB-B1,2 92LPWB5226PWRS J — Power/Transformer
(Combined Ass’y)
PWB-C 92LPWB4896CDUS J — CD Servo
PWB-D QPWBF0027AWZZ J AD CD Motor (PWB Only)
PWB-E QPWBF0749AWZZ J AD CD Loading Motor (PWB Only)
PWB-F(208-3) 92LF567-719 J — Tape Mechanism
OTHER SERVICE PART
UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner
SPEAKER BOX PARTS
901 GBOXS2025AWSB J Speaker Box Ass’y,Right
901 GBOXS4025AWSB J Speaker Box Ass’y,Left
902 CPNLS1080AW02 J AX Front Panel Ass’y,Left
902 CPNLS1081AW02 J AX Front Panel Ass’y,Right
903 HPNLS1082AWSB J AT Side Panel,Left
903 HPNLS1083AWSB J AT Side Panel,Right
904 RSPXZ0002AWZX J AS Passive Radiator
905 XJBSD40P16000 J AB Screw,ø4×16mm
906 XJBSD30P12000 J AA Screw,ø3×12mm
907 XMPSF40P35000 J AC Screw,ø4×35mm
908 XMBSF40P16000 J AC Screw,ø4×16mm
909 TSPC-1262AWZZ J AC Label,Specifications
910 PFLT-0046AWZZ J AC Felt
911 QCNWN2500AWZZ J AL Speaker Cord Ass’y
(with Capacitor C1,2)
912 PCUSG0141AWZZ J AG Cushion,Leg
913 PFLT-0080AWZZ J Felt
SP1,2 RSPA10097AW6W J AZ Woofer
SP3,4 RSPA00084AW6T J AR Tweeter
