NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PART CODE
PRICE
RANK
DESCRIPTION

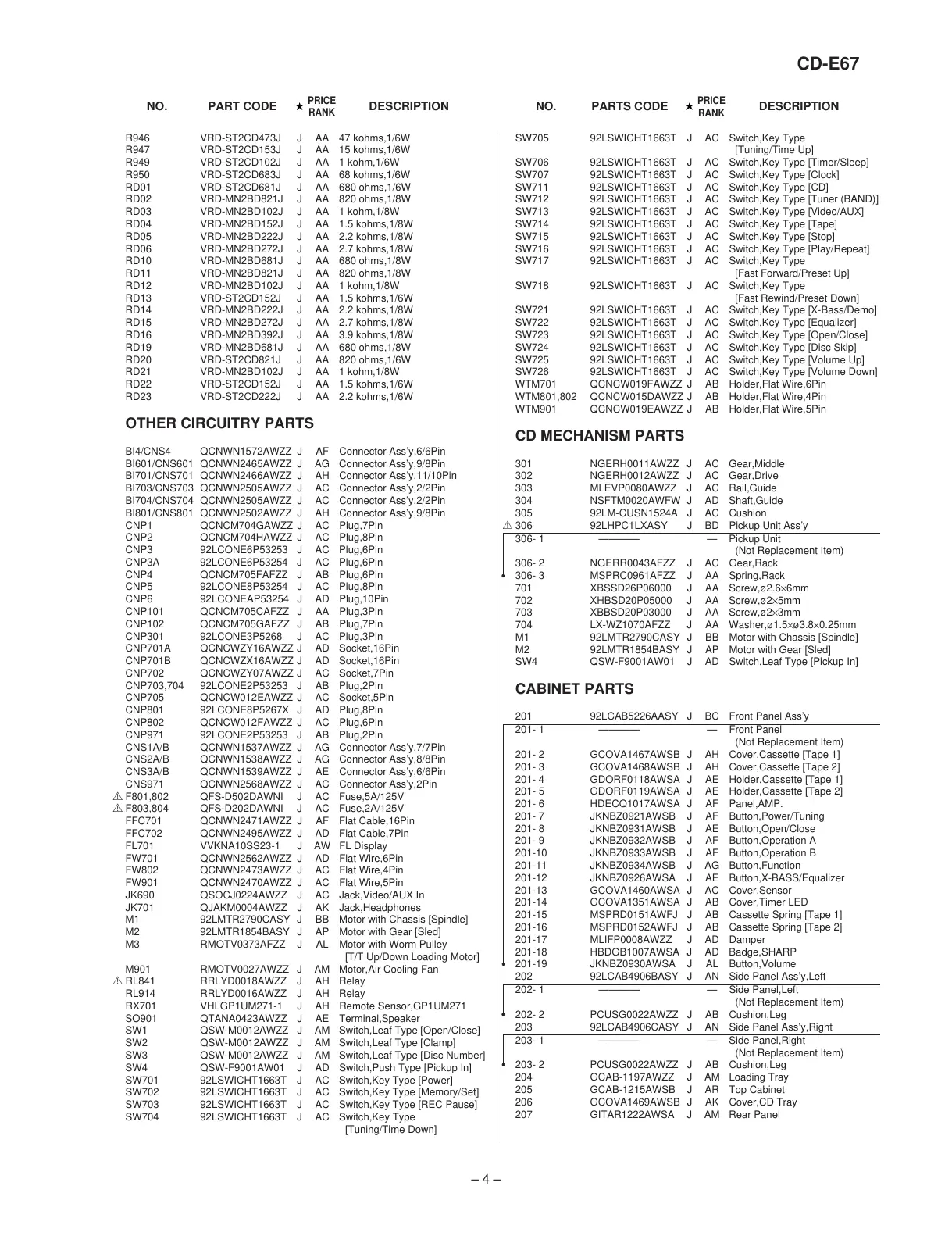

CD-E67
– 4 –
R946 VRD-ST2CD473J J AA 47 kohms,1/6W
R947 VRD-ST2CD153J J AA 15 kohms,1/6W
R949 VRD-ST2CD102J J AA 1 kohm,1/6W
R950 VRD-ST2CD683J J AA 68 kohms,1/6W
RD01 VRD-ST2CD681J J AA 680 ohms,1/6W
RD02 VRD-MN2BD821J J AA 820 ohms,1/8W
RD03 VRD-MN2BD102J J AA 1 kohm,1/8W
RD04 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RD05 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RD06 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RD10 VRD-MN2BD681J J AA 680 ohms,1/8W
RD11 VRD-MN2BD821J J AA 820 ohms,1/8W
RD12 VRD-MN2BD102J J AA 1 kohm,1/8W
RD13 VRD-ST2CD152J J AA 1.5 kohms,1/6W
RD14 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RD15 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RD16 VRD-MN2BD392J J AA 3.9 kohms,1/8W
RD19 VRD-MN2BD681J J AA 680 ohms,1/8W
RD20 VRD-ST2CD821J J AA 820 ohms,1/6W
RD21 VRD-MN2BD102J J AA 1 kohm,1/8W
RD22 VRD-ST2CD152J J AA 1.5 kohms,1/6W
RD23 VRD-ST2CD222J J AA 2.2 kohms,1/6W
OTHER CIRCUITRY PARTS
BI4/CNS4 QCNWN1572AWZZ J AF Connector Ass’y,6/6Pin
BI601/CNS601 QCNWN2465AWZZ J AG Connector Ass’y,9/8Pin
BI701/CNS701 QCNWN2466AWZZ J AH Connector Ass’y,11/10Pin
BI703/CNS703 QCNWN2505AWZZ J AC Connector Ass’y,2/2Pin
BI704/CNS704 QCNWN2505AWZZ J AC Connector Ass’y,2/2Pin
BI801/CNS801 QCNWN2502AWZZ J AH Connector Ass’y,9/8Pin
CNP1 QCNCM704GAWZZ J AC Plug,7Pin
CNP2 QCNCM704HAWZZ J AC Plug,8Pin
CNP3 92LCONE6P53253 J AC Plug,6Pin
CNP3A 92LCONE6P53254 J AC Plug,6Pin
CNP4 QCNCM705FAFZZ J AB Plug,6Pin
CNP5 92LCONE8P53254 J AC Plug,8Pin
CNP6 92LCONEAP53254 J AD Plug,10Pin
CNP101 QCNCM705CAFZZ J AA Plug,3Pin
CNP102 QCNCM705GAFZZ J AB Plug,7Pin
CNP301 92LCONE3P5268 J AC Plug,3Pin
CNP701A QCNCWZY16AWZZ J AD Socket,16Pin
CNP701B QCNCWZX16AWZZ J AD Socket,16Pin
CNP702 QCNCWZY07AWZZ J AC Socket,7Pin
CNP703,704 92LCONE2P53253 J AB Plug,2Pin
CNP705 QCNCW012EAWZZ J AC Socket,5Pin
CNP801 92LCONE8P5267X J AD Plug,8Pin
CNP802 QCNCW012FAWZZ J AC Plug,6Pin
CNP971 92LCONE2P53253 J AB Plug,2Pin
CNS1A/B QCNWN1537AWZZ J AG Connector Ass’y,7/7Pin
CNS2A/B QCNWN1538AWZZ J AG Connector Ass’y,8/8Pin
CNS3A/B QCNWN1539AWZZ J AE Connector Ass’y,6/6Pin
CNS971 QCNWN2568AWZZ J AC Connector Ass’y,2Pin
1 F801,802 QFS-D502DAWNI J AC Fuse,5A/125V
1 F803,804 QFS-D202DAWNI J AC Fuse,2A/125V
FFC701 QCNWN2471AWZZ J AF Flat Cable,16Pin
FFC702 QCNWN2495AWZZ J AD Flat Cable,7Pin
FL701 VVKNA10SS23-1 J AW FL Display
FW701 QCNWN2562AWZZ J AD Flat Wire,6Pin
FW802 QCNWN2473AWZZ J AC Flat Wire,4Pin
FW901 QCNWN2470AWZZ J AC Flat Wire,5Pin
JK690 QSOCJ0224AWZZ J AC Jack,Video/AUX In
JK701 QJAKM0004AWZZ J AK Jack,Headphones
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
M3 RMOTV0373AFZZ J AL Motor with Worm Pulley
[T/T Up/Down Loading Motor]
M901 RMOTV0027AWZZ J AM Motor,Air Cooling Fan
1 RL841 RRLYD0018AWZZ J AH Relay
RL914 RRLYD0016AWZZ J AH Relay
RX701 VHLGP1UM271-1 J AH Remote Sensor,GP1UM271
SO901 QTANA0423AWZZ J AE Terminal,Speaker
SW1 QSW-M0012AWZZ J AM Switch,Leaf Type [Open/Close]
SW2 QSW-M0012AWZZ J AM Switch,Leaf Type [Clamp]
SW3 QSW-M0012AWZZ J AM Switch,Leaf Type [Disc Number]
SW4 QSW-F9001AW01 J AD Switch,Push Type [Pickup In]
SW701 92LSWICHT1663T J AC Switch,Key Type [Power]
SW702 92LSWICHT1663T J AC Switch,Key Type [Memory/Set]
SW703 92LSWICHT1663T J AC Switch,Key Type [REC Pause]
SW704 92LSWICHT1663T J AC Switch,Key Type
[Tuning/Time Down]
SW705 92LSWICHT1663T J AC Switch,Key Type
[Tuning/Time Up]
SW706 92LSWICHT1663T J AC Switch,Key Type [Timer/Sleep]
SW707 92LSWICHT1663T J AC Switch,Key Type [Clock]
SW711 92LSWICHT1663T J AC Switch,Key Type [CD]
SW712 92LSWICHT1663T J AC Switch,Key Type [Tuner (BAND)]
SW713 92LSWICHT1663T J AC Switch,Key Type [Video/AUX]
SW714 92LSWICHT1663T J AC Switch,Key Type [Tape]
SW715 92LSWICHT1663T J AC Switch,Key Type [Stop]
SW716 92LSWICHT1663T J AC Switch,Key Type [Play/Repeat]
SW717 92LSWICHT1663T J AC Switch,Key Type
[Fast Forward/Preset Up]
SW718 92LSWICHT1663T J AC Switch,Key Type
[Fast Rewind/Preset Down]
SW721 92LSWICHT1663T J AC Switch,Key Type [X-Bass/Demo]
SW722 92LSWICHT1663T J AC Switch,Key Type [Equalizer]
SW723 92LSWICHT1663T J AC Switch,Key Type [Open/Close]
SW724 92LSWICHT1663T J AC Switch,Key Type [Disc Skip]
SW725 92LSWICHT1663T J AC Switch,Key Type [Volume Up]
SW726 92LSWICHT1663T J AC Switch,Key Type [Volume Down]
WTM701 QCNCW019FAWZZ J AB Holder,Flat Wire,6Pin
WTM801,802 QCNCW015DAWZZ J AB Holder,Flat Wire,4Pin
WTM901 QCNCW019EAWZZ J AB Holder,Flat Wire,5Pin
CD MECHANISM PARTS
301 NGERH0011AWZZ J AC Gear,Middle
302 NGERH0012AWZZ J AC Gear,Drive
303 MLEVP0080AWZZ J AC Rail,Guide
304 NSFTM0020AWFW J AD Shaft,Guide
305 92LM-CUSN1524A J AC Cushion
1 306 92LHPC1LXASY J BD Pickup Unit Ass’y
306- 1 ———— — Pickup Unit
(Not Replacement Item)
306- 2 NGERR0043AFZZ J AC Gear,Rack
306- 3 MSPRC0961AFZZ J AA Spring,Rack
701 XBSSD26P06000 J AA Screw,ø2.6×6mm
702 XHBSD20P05000 J AA Screw,ø2×5mm
703 XBBSD20P03000 J AA Screw,ø2×3mm
704 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]
CABINET PARTS
201 92LCAB5226AASY J BC Front Panel Ass’y
201- 1 ———— — Front Panel
(Not Replacement Item)
201- 2 GCOVA1467AWSB J AH Cover,Cassette [Tape 1]
201- 3 GCOVA1468AWSB J AH Cover,Cassette [Tape 2]
201- 4 GDORF0118AWSA J AE Holder,Cassette [Tape 1]
201- 5 GDORF0119AWSA J AE Holder,Cassette [Tape 2]
201- 6 HDECQ1017AWSA J AF Panel,AMP.
201- 7 JKNBZ0921AWSB J AF Button,Power/Tuning
201- 8 JKNBZ0931AWSB J AE Button,Open/Close
201- 9 JKNBZ0932AWSB J AF Button,Operation A
201-10 JKNBZ0933AWSB J AF Button,Operation B
201-11 JKNBZ0934AWSB J AG Button,Function
201-12 JKNBZ0926AWSA J AE Button,X-BASS/Equalizer
201-13 GCOVA1460AWSA J AC Cover,Sensor
201-14 GCOVA1351AWSA J AB Cover,Timer LED
201-15 MSPRD0151AWFJ J AB Cassette Spring [Tape 1]
201-16 MSPRD0152AWFJ J AB Cassette Spring [Tape 2]
201-17 MLIFP0008AWZZ J AD Damper
201-18 HBDGB1007AWSA J AD Badge,SHARP
201-19 JKNBZ0930AWSA J AL Button,Volume
202 92LCAB4906BASY J AN Side Panel Ass’y,Left
202- 1 ———— — Side Panel,Left
(Not Replacement Item)
202- 2 PCUSG0022AWZZ J AB Cushion,Leg
203 92LCAB4906CASY J AN Side Panel Ass’y,Right
203- 1 ———— — Side Panel,Right
(Not Replacement Item)
203- 2 PCUSG0022AWZZ J AB Cushion,Leg
204 GCAB-1197AWZZ J AM Loading Tray
205 GCAB-1215AWSB J AR Top Cabinet
206 GCOVA1469AWSB J AK Cover,CD Tray
207 GITAR1222AWSA J AM Rear Panel
