Sharp CD-MPX870W - Names of Parts; Front Panel

CD-MPX870W
–2
[6]

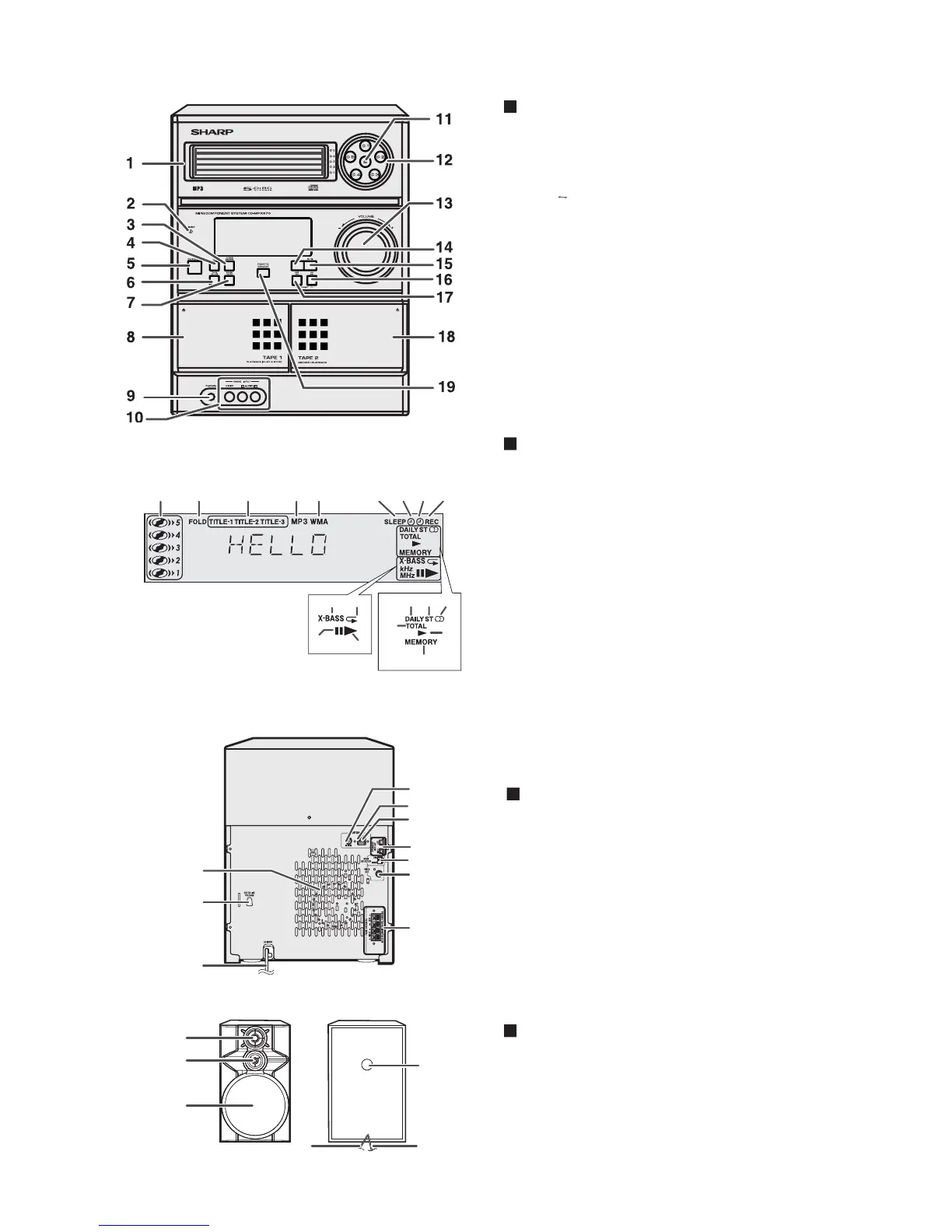

NAMES OF PARTS
Front panel
1. Disc Trays
2. Timer Indicator
3. Tuner (Band) Button
4. CD Button
5. ON/STAND-BY Button
6. Tape (1 2) Button
7. Game/Video Button
8. Tape 1 Cassette Compartment
9. Headphone Jack
10
. Game/ Video Input Jac
ks
11. Disc Tray Open/Close Button
12
. Disc Number Select Buttons
13. Volume Control
14
. CD or Tape Stop Button
15
. CD Play or Repeat,
Tape Play Button
16
. CD Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up, Time Up Button
17
. CD Track Down or F
ast
Reverse, Tape 2 Rewind,
Tuner Preset Down,
Time Down Button
18
. Tape 2 Cassette Compartment
19
. Remote Sensor
Display
1. Disc Number Indicators
2. MP3/WMA Folder Indicator
3. MP3/ WMA Title Indicators
4. MP3 Indicator
5. WMA Indicator
6. Sleep Indicator
7. Timer Play Indicator
8. Timer Recording Indicator
9. Tape 2 Record Indicator
10. MP3/WMA Total Indicator
11
. Daily Timer Indicator
12
. FM Stereo Mode Indicator
13
. FM Stereo Receiving Indicator
14
. Tape Play Indicator
15. Memory Indicator
16
. Extra Bass Indicator
17
. Disc Repeat Play Indicator
18
. Disc Pause Indicator
19
. Disc Play Indicator
Front Speaker
Tweeter
2.
1.
Super Tweeter
3. Woofer
4. Bass Reflex Duct
5. Speaker Wire
6. Speaker Light-Up Wire
1 2 3 4 5 6 7 8 9
11 1213
10
14
15
16 17
18
19
11
2
3
4
56
Rear panel
4
7
8
5
6
10
9
3
1
2
1. Cooling Fan
2. AC Voltage Selector
3. AC Power Cord
4. FM 75 Ohms Antenna Jack
5. AM Antenna Ground Terminal
6. AM Loop Antenna Terminal
7. Speaker Light-up Jacks
8. Span Selector Switch
9. Video out Jack
10. Front Speaker Terminals
1 – 4
