Sharp CD-PC651H

ec )
a
* (Sel GOR Os
PseM ss EN
a: Taek
Surround Surround Centre Front Front
speaker speaker speaker speaker speaker
(Right) (Left) (Right) (Left)
Centre
speaker
Front : Front
speaker \j speaker
(Leit)
(Right)
Surround
Surround
speaker
speaker
(Left)
(Right)
[ Example: When installed on the wall |
Surround epee!
Wall
60 - 90 cm
(23" se 35")

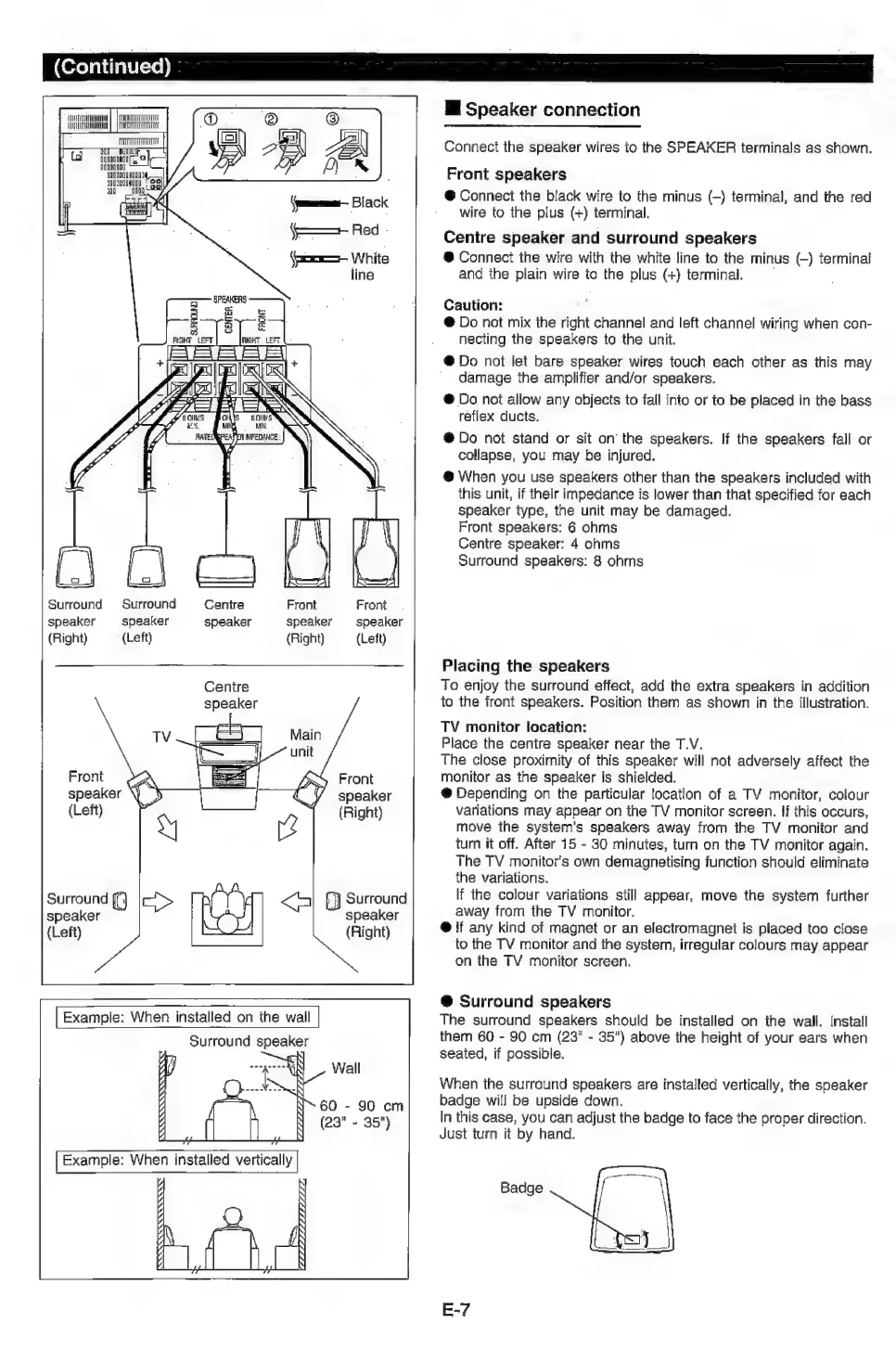

@ Speaker connection
Connect the speaker wires to the SPEAKER terminals as shown.
Front speakers
@ Connect the black wire to the minus (-) terminal, and the red
wire to the plus (+) terminal.
Centre speaker and surround speakers
® Connect the wire with the white line to the minus (-) terminal
and the plain wire to the plus (+) terminal.
Caution:
@ Do not mix the right channel and left channel wiring when con-
necting the speakers to the unit.
@ Do not let bare speaker wires touch each other as this may
damage the amplifier and/or speakers.
@ Do noi allow any objects to fall into or to be placed in the bass
reflex ducts.
@ Do not stand or sit on the speakers. If the speakers fall or
collapse, you may be injured.
@ When you use speakers other than the speakers included with
this unit, if their impedance is lower than that specified for each
speaker type, the unit may be damaged.
Front speakers: 6 chms
Centre speaker: 4 ohms
Surround speakers: 8 ohms
Placing the speakers
To enjoy the surround effect, add the extra speakers in addition
to the front speakers. Position them as shown in the illustration.
TV monitor location:
Place the centre speaker near the T.V.
The close proximity of this speaker will not adversely affect the
monitor as the speaker is shielded.
@ Depending on the particular location of a TV monitor, colour
variations may appear on the TV monitor screen. ff this occurs,
move the system's speakers away from the TV monitor and
turn it off. After 15 - 30 minutes, turn on the TV monitor again.
The TV monitor's own demagnetising function should eliminate
the variations.
If the colour variations still appear, move the system further
away from the TV monitor.
@ if any kind of magnet or an electromagnet is placed too close
to the TV monitor and the system, irregular colours may appear
on the TV monitor screen.
@ Surround speakers
The surround speakers should be installed on the wall. Install
them 60 - 90 cm (23" - 35") above the height of your ears when
seated, if possible.
When the surround speakers are installed vertically, the speaker
badge will be upside down.
In this case, you can adjust the badge to face the proper direction.
Just turn it by hand.
Badge
