Sharp CD-PC651H

(Continued)
32 mm (1-1/4")
1
Min. 22 mm (7/8")
9 mm (3/8")
4
Wall surface
| Bowne
Wall surface Wall mounting screw
ITLATAL ape
ITVAUIL eft]
FATAL (TATED
OLDIDDOD NOAA
nnoopeanoa FOS
000 = __ O08,
Tq Im Wer >
Bs
a)
AC 230 V, 50 Hz
t.
oe
ee
S|
To an AC socket

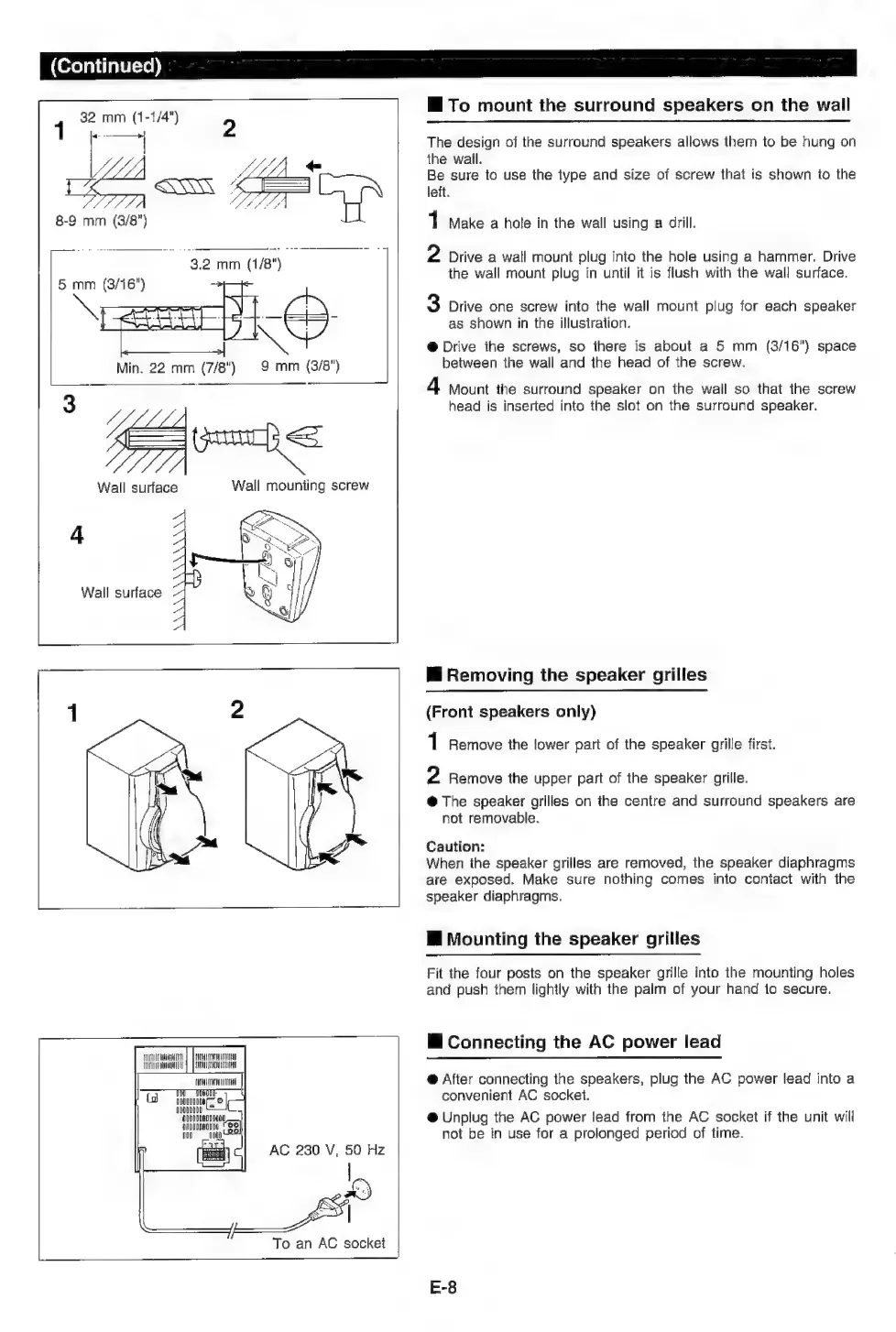

Mi To mount the surround speakers on the wall
The design of the surround speakers allows them to be hung on
the wall.
Be sure to use the type and size of screw that is shown to the
leit.
1 Make a hole in the wall using a drill.
2 Drive a wall mount plug into the hole using a hammer. Drive
the wall mount plug in until it is flush with the wall surface.
3 Drive one screw into the wall mount plug for each speaker
as shown in the illustration.
@ Drive ihe screws, so there is about a 5 mm (3/16") space
between the wall and the head of the screw.
4 Mount the surround speaker on the wall so that the screw
head is inserted into the slot on the surround speaker.
Mi Removing the speaker grilles
(Front speakers only)
1 Remove the lower part of the speaker grille first.
2 Remove the upper part of the speaker grille.
@ The speaker grilles on the centre and surround speakers are
not removable.
Caution:
When ihe speaker grilles are removed, the speaker diaphragms
are exposed. Make sure nothing comes inio contact with the
speaker diaphragms.
Bi Mounting the speaker grilles
Fit the four posts on the speaker grille into the mounting holes
and push them lightly with the palm of your hand to secure.
i Connecting the AC power lead
@ After connecting the speakers, plug the AC power lead into a
convenient AC sockei.
@ Unplug the AC power lead from the AC socket if the unit will
not be in use for a prolonged period of time.
