Sharp CD-PC651H

TATTICCIETATETEATT ATCT
SUUTCCTTUEEACETUNTT | TLATSCTOAET TTI TE
BOON NOOO
DNDIdDONOoO | Ss
00 oi09 -~~
| WUTAGATTT TEU [
in I I
U Ny
nuoennodd/ 2 o}
D000 000
000000080304,
o02090090) ‘2g
3000
BIGHT LEFT

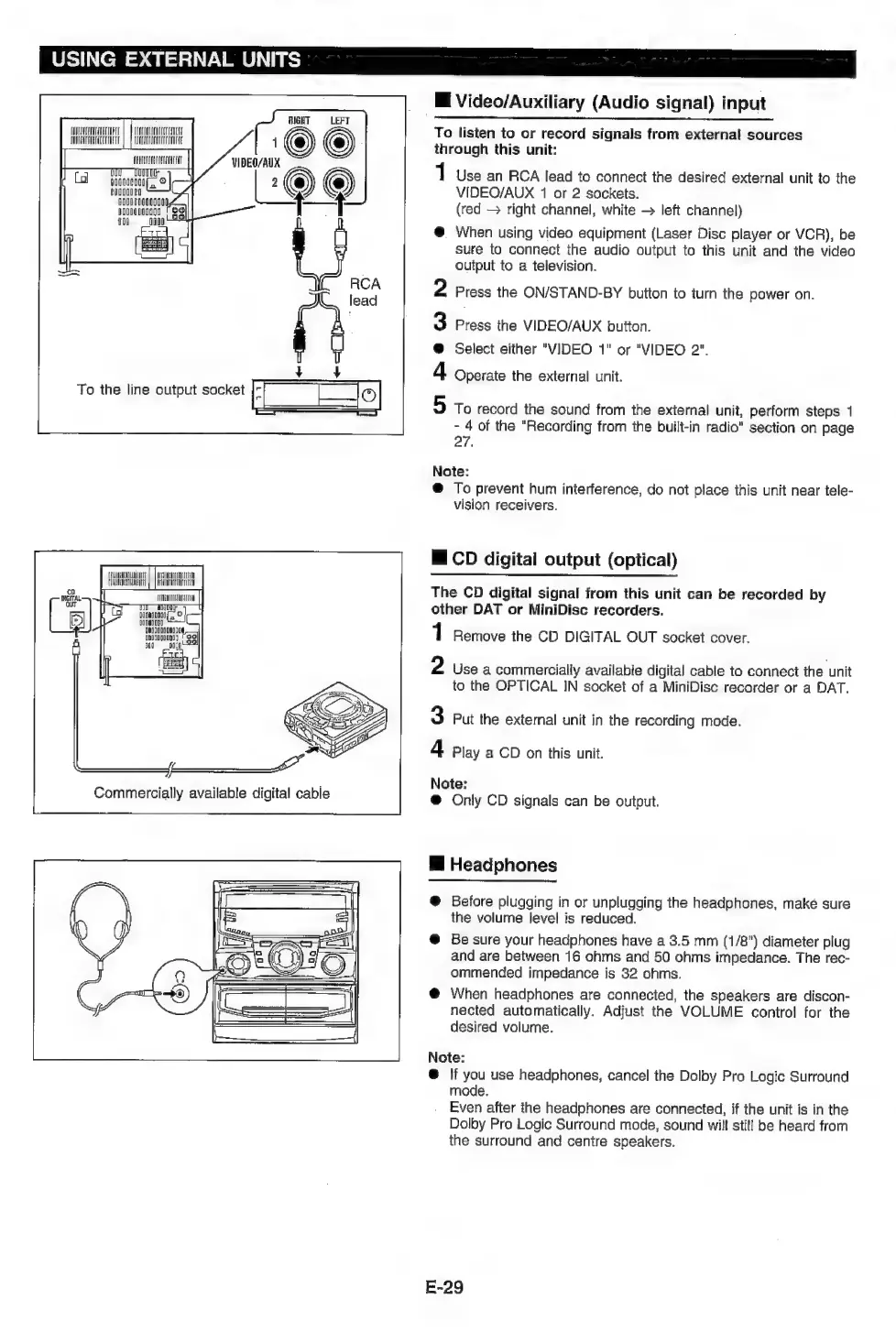

Mi Video/Auxiliary (Audio signal) input
To listen to or record signals from external sources
through this unit:
1 Use an RCA lead to connect the desired external unit to the
VIDEO/AUX 1 or 2 sockets.
(red — right channel, white > left channel)
@ When using video equipment (Laser Disc player or VCR), be
sure to connect ithe audio output to this unit and the video
output to a television.
2 Press the ON/STAND-BY button to turn the power on.
3 Press the VIDEO/AUX button.
@ Select either "VIDEO 1" or "VIDEO 2".
4 Operate the external unit.
5 To record the sound from the external unit, perform steps 1
- 4 of the "Recarding from the built-in radio" section on page
27;
Note:
@ To prevent hum interference, do not place this unit near tele-
vision receivers.
HCD digital output (optical)
The CD digital signal from this unit can be recorded by
other DAT or MiniDisc recorders.
1 Remove the CD DIGITAL OUT socket cover.
2 Use a commercially available digital cable to connect the unit
to the OPTICAL IN socket of a MiniDisc recorder or a DAT.
3 Put the external unit in the recording mode.
4 Play a CD on this unit.
Note:
@ Only CD signals can be output.
i Headphones
@ Before plugging in or unplugging the headphones, make sure
the volume level is reduced.
@ Be sure your headphones have a 3.5 mm (1/8") diameter plug
and are between 16 ohms and 50 ohms impedance. The rec-
ommended impedance is 32 ohms.
@ When headphones are connected, the speakers are discon-
nected automatically. Adjust the VOLUME control for the
desired volume.
Note:
@ If you use headphones, cancel the Dolby Pro Logic Surround
mode.
Even after the headphones are connected, if the unit is in the
Dolby Pro Logic Surround mode, sound will stil! be heard from
the surround and centre speakers.
E-29
