– 9 –
CD-PC671H/651H
Figure 9-1
Figure 9-2
Figure 9-3

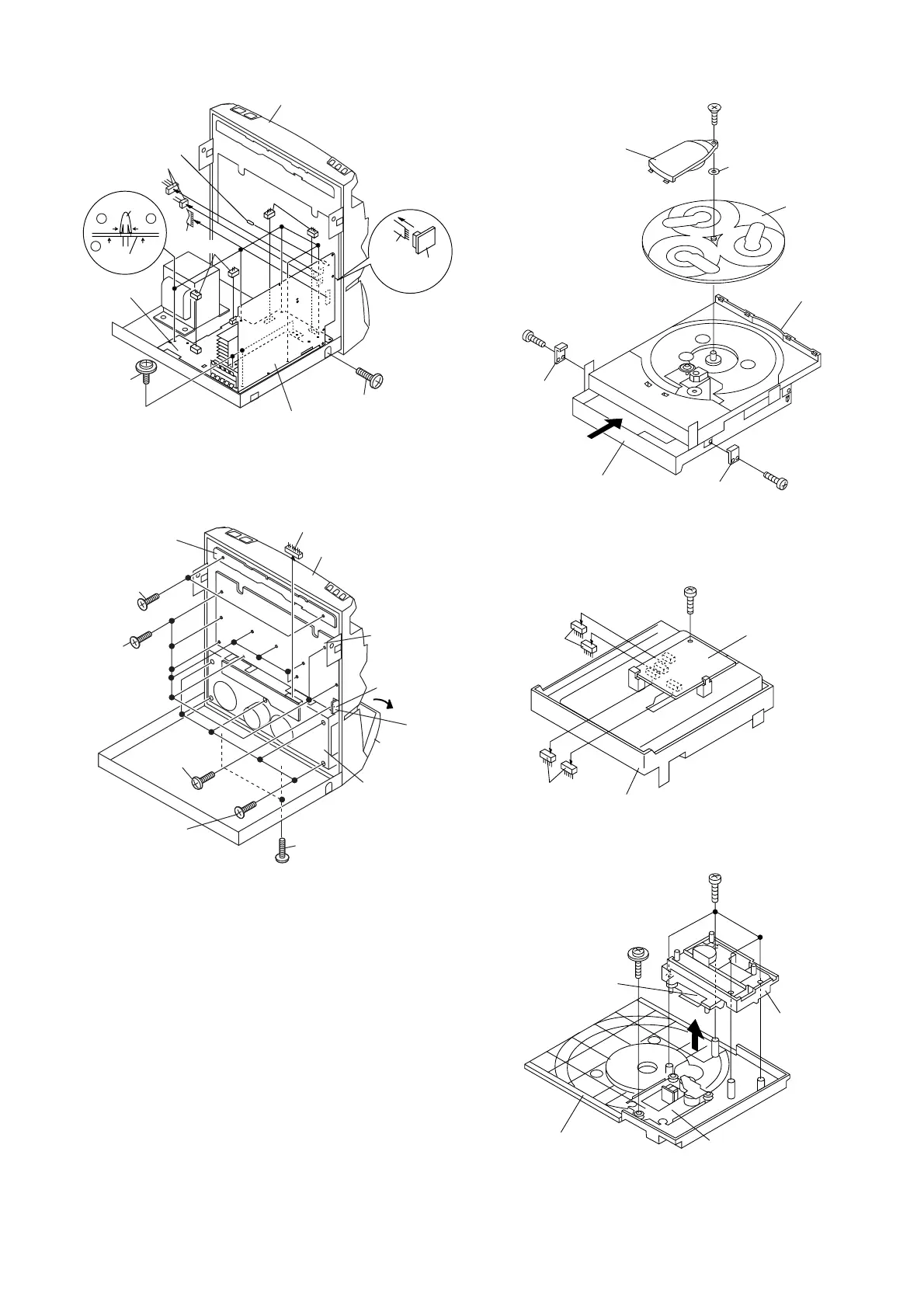

Be careful when installing the CD changer mechanism.
Install the CD changer mechanism on the CD player base after
the shift lever has been set in the highest position.
Figure 9-4
Figure 9-5
( L1 ) x1
ø3 x10mm
( L1 ) x1
ø3 x10mm
( K1 ) x1
ø3 x10mm
Turntable
Disc Tray
( K2 ) x1
( L2 ) x1
( L2 ) x1
CD Player Unit
Washer
( M1 ) x1
ø3 x10mm
( M2 ) x2
( M2 ) x2
CD Player Unit
CD Servo PWB
( N1 ) x4
ø3 x12mm
( P1 ) x1
ø2.6 x10mm
CD Changer
Mechanism
CD Mechanism
Shift Lever
CD Player Base
Front Panel
Display PWB
(H2)x1
Switch PWB
Open
Cassette
Holder
Tape Mechanism
(H1)x2
ø3x10mm
(H1)x10
ø3x10mm
(H1)x1
ø3x10mm
(J1)x6
ø3x10mm
(G1)x2
ø3x10mm
Headphones
PWB
(J2)x1
(F1)x3
ø3x10mm
(E1)x2
(E4)x1
(F3)x5
(E2)x1
Front Panel
(F2)x2
(F2)x2
(F1)x1
ø3x10mm
Push
Push
1 1
2
Pull
POWER
PWB
Main PWB
POWER PWB
(E3)x1
Headphoens
PWB
