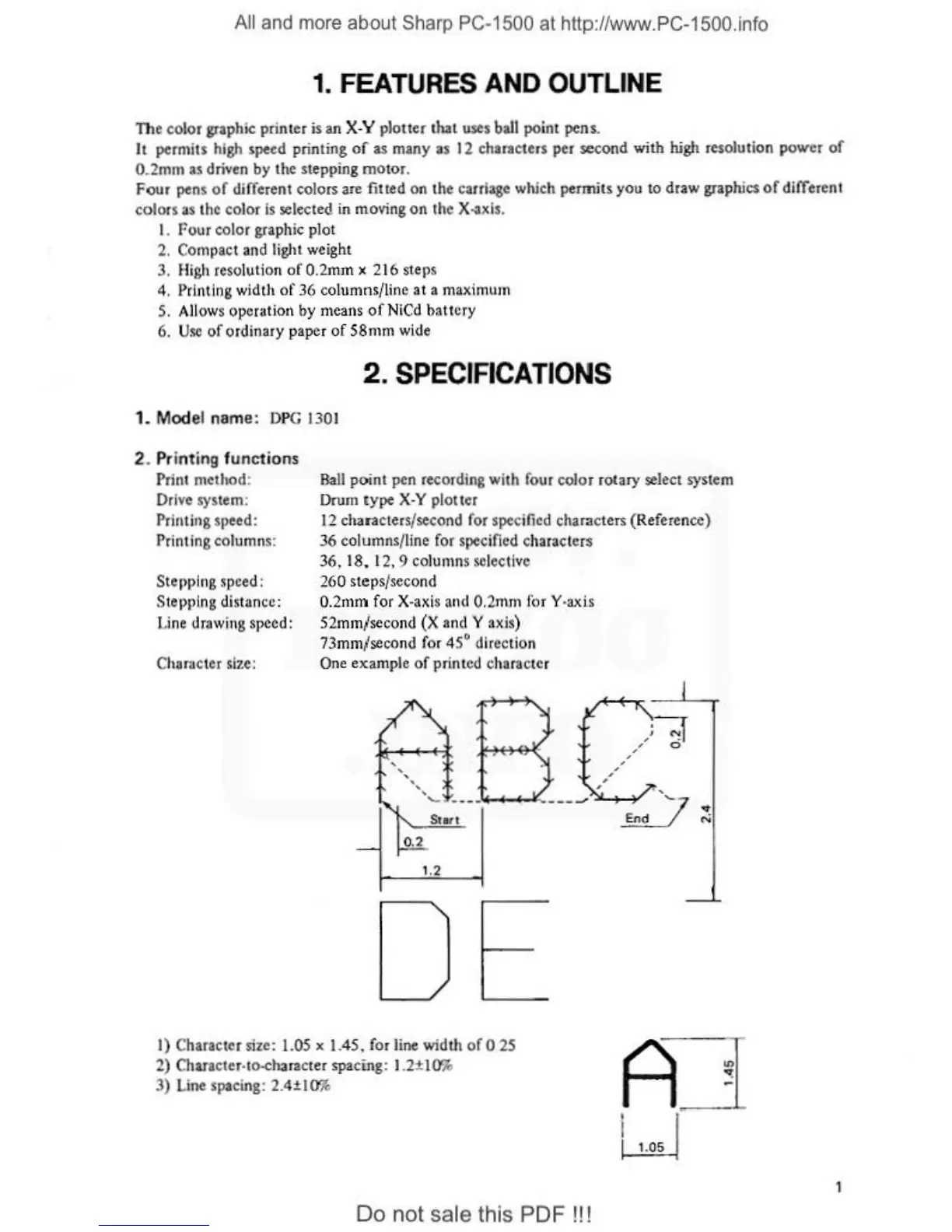

FEATURES
AND
OUTLINE
Th
e
co
lor
graphic printer
is
an
X-Y plotter that uses ball point pens.
It
permits high speed printing
of
as many as 12 characters per second with high resolution power
of
0.2mm a.s driven by the stepping
motor.
Four
pens
or
different colors are fitted on the carriage which
pe
rmits
you
to draw graphics
or
different
colors
as
the col
or
is
selected in moving on the X'1xis.
I.
Four color graphic plot
2. Compact and light weight
3. Bigh resolution
of
0.2mm x
216
steps
4. Print
ing
width
of
36
columns/line at a maximum
S.
All
ows operation by means
of
Ni
Cd
battery
6.
Use
<>f
ordinary paper
of
S8mm wide
2.
SPECIFICATIONS
1.
Mod
el
name:
DPG
1301
2. Pri
nt
ing f
unc
tio
ns
Print method:
Drive system:
Printing speed:
Printing column
s:
S
tep1
>
ln
g speed:
S1
e1>p
ln
g distance:
Line drawing speed:
Character size:
Ball
point pen recording with four color rotary select system
Drum type
X-Y
plotter
12 characters/second
for specified characters (Reference)
36
columns/line for specified characters
36.
18
. 12. 9 columns select
iv
e
260 steps/second
0.
2m
m for X-axis and 0.2mrn for
Y-ax
is
52mmisecond
(X
and Y axis)
73mm/ second for
45° direction
One
ex
amp
le
or
print
ed
cha
ra
cter
Sl•tt
0.2
1
.2
.......
..-.
......
.....
__
,;
-;f
, 0
,
,
,
,
,
,
,
I)
Character size:
I.OS
x 1.45. forline width
of02S
2)
Character-to.character spacing: 1.2±1(1,\
3)
Line spacing: 2.4±10%
