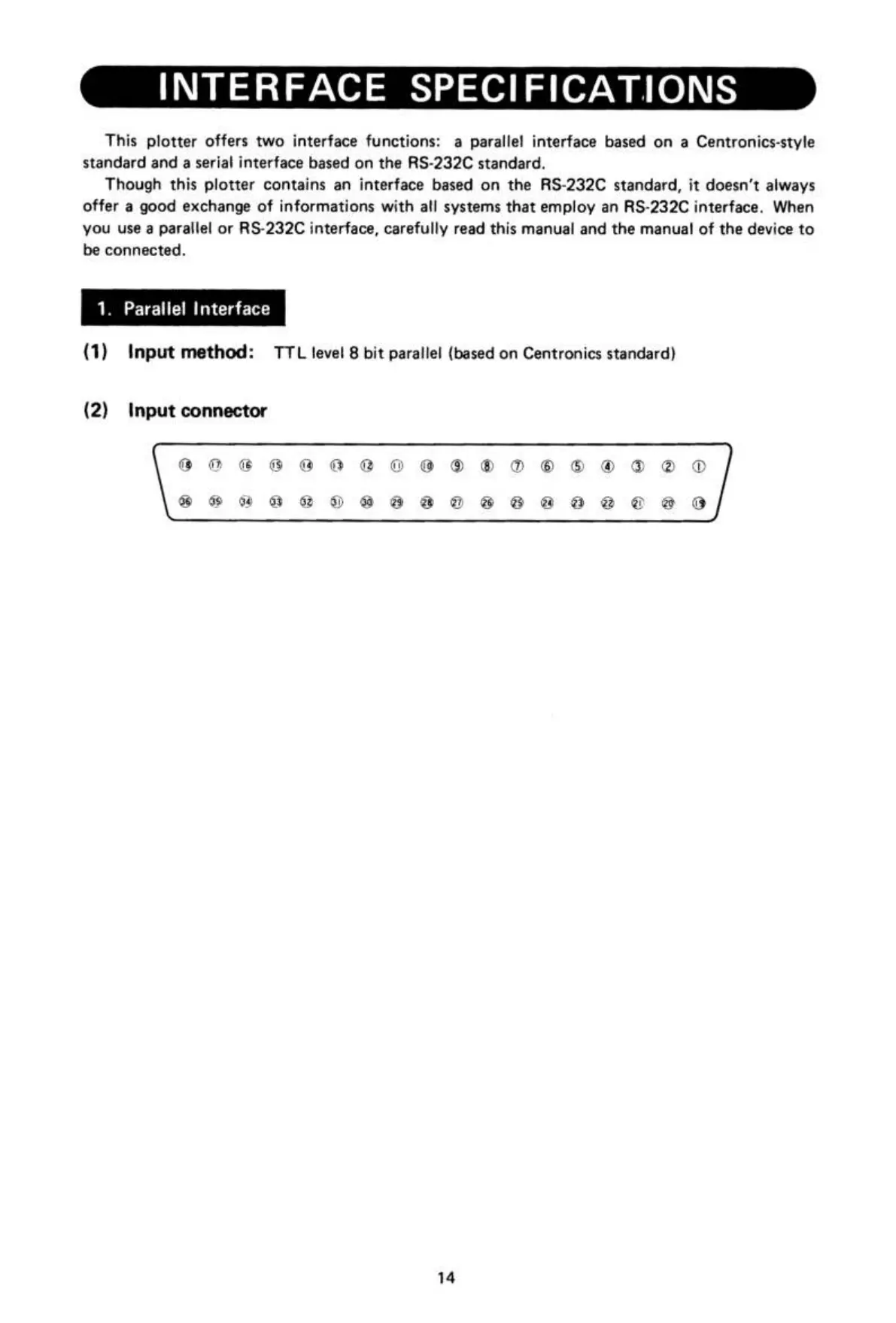

INTERFACE
SPECIFICATIONS
This plotter offers two interface functions: a parallel interface based on a Centronics-style
standard and a serial interface based on the RS-232C standard.
Though this plotter contains an interface based on the RS-232C standard, it doesn’t always
offer a good exchange of informations with all systems that employ an RS-232C interface. When
you use a parallel or RS-232C interface, carefully read this manual and the manual of the device to
be connected.
1. Parallel Interface
(1) Input method: TTL level 8 bit parallel (based on Centronics standard)
(2) Input connector
® ® ¢ 6 ® 8 @ 0 0 ®® ©® @ @ 0 @ O
B ® ¥ @ ® O 9 9 0 ® 6 o e e @ 8
14
