– 13 –
CD-K7000V,CP-C7000

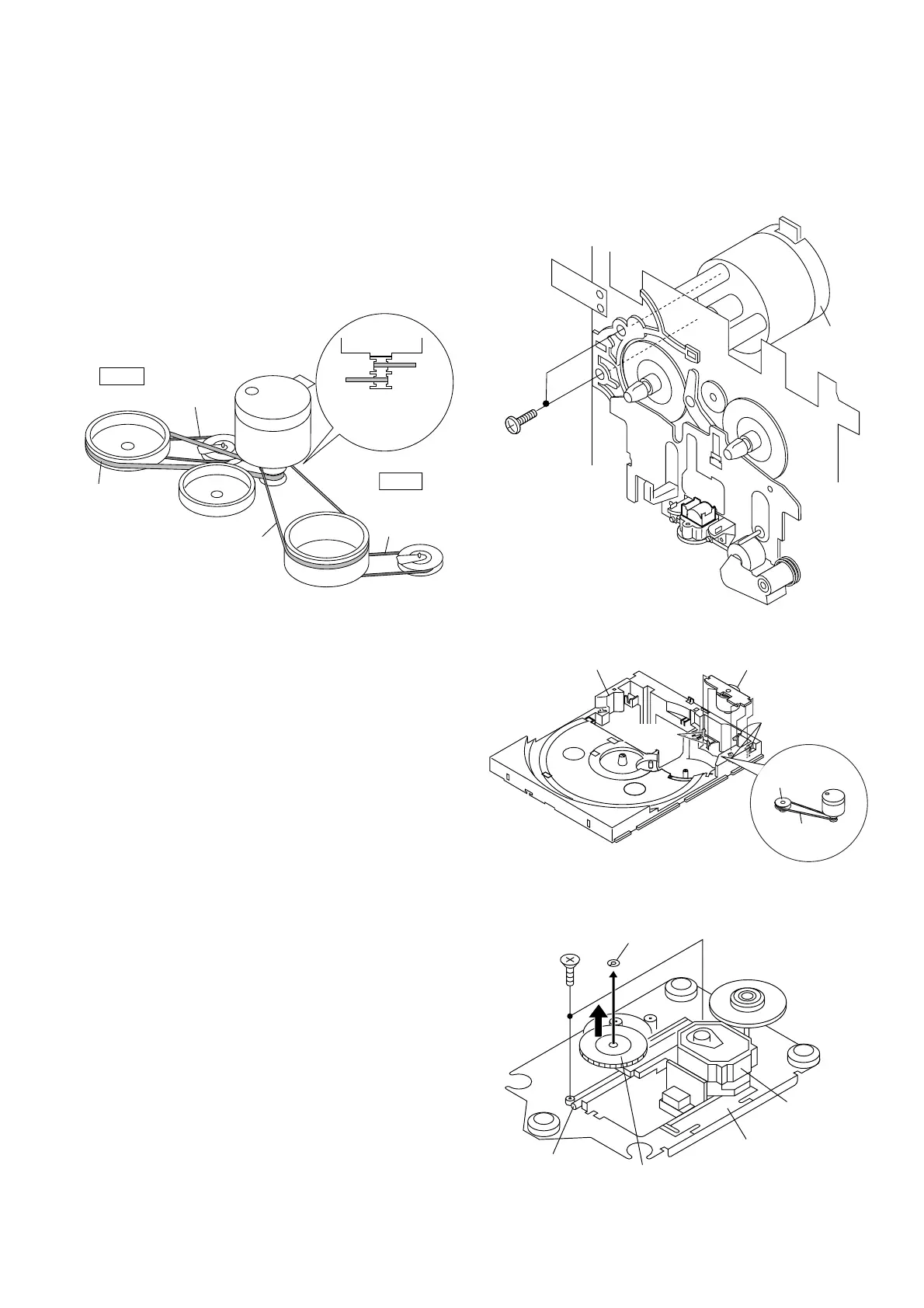

How to remove the pickup (See Fig. 13-4)
1. Remove the stop washer (B1) x 1 pc., to remove the gear
(B2).
2. Remove the screws (B3) x 2 pcs., to remove the shaft (B4).
3. Remove the pickup.
Figure 13-4
CD MECHANISM SECTION
Perform steps 1, 2, 3, 13 and 16 of the disassembly method
to remove the CD mechanism.
How to remove the loading motor
(See Fig. 13-3)
1. Bend the hooks (A1) x 5 pcs., to remove the loading motor.
2. Remove the drive belt (A2) x1.
Figure 13-3
Note
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector to protect the optical pickup from
electrostatic damage.
How to remove the belt (TAPE 2) (See Fig. 13-1)
1. Remove the main belt (D1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (D2) x 1 pc.
How to remove the belt (TAPE 1) (See Fig. 13-1)
1. Remove the main belt (E1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (E2) x 1 pc.
How to remove the motor (See Fig. 13-2)
1. Remove the screws (F1) x 2 pcs., to remove the motor.
Figure 13-1
Figure 13-2
(A1)x3
Loading MotorSlide Chassis
(A1)x2
Pulley
Drive Belt
(A2) x1
Motor
(B3) x2
ø2.6 x6mm
Shaft
(B4) x1
Stop Washer
(B1) x1
Gear
(B2) x1
CD Mechanism
Pickup
TAPE 2
TAPE 1
Main Belt
(E1)x1
TAPE 2
Main Belt
(D1)x1
TAPE 1
(D1)x1
FF/REW
Belt
(D2)x1
FF/REW
Belt
(E2)x1
(E1)x1
Motor
Motor
(F1) x2
Ø2.6x5mm
Motor
