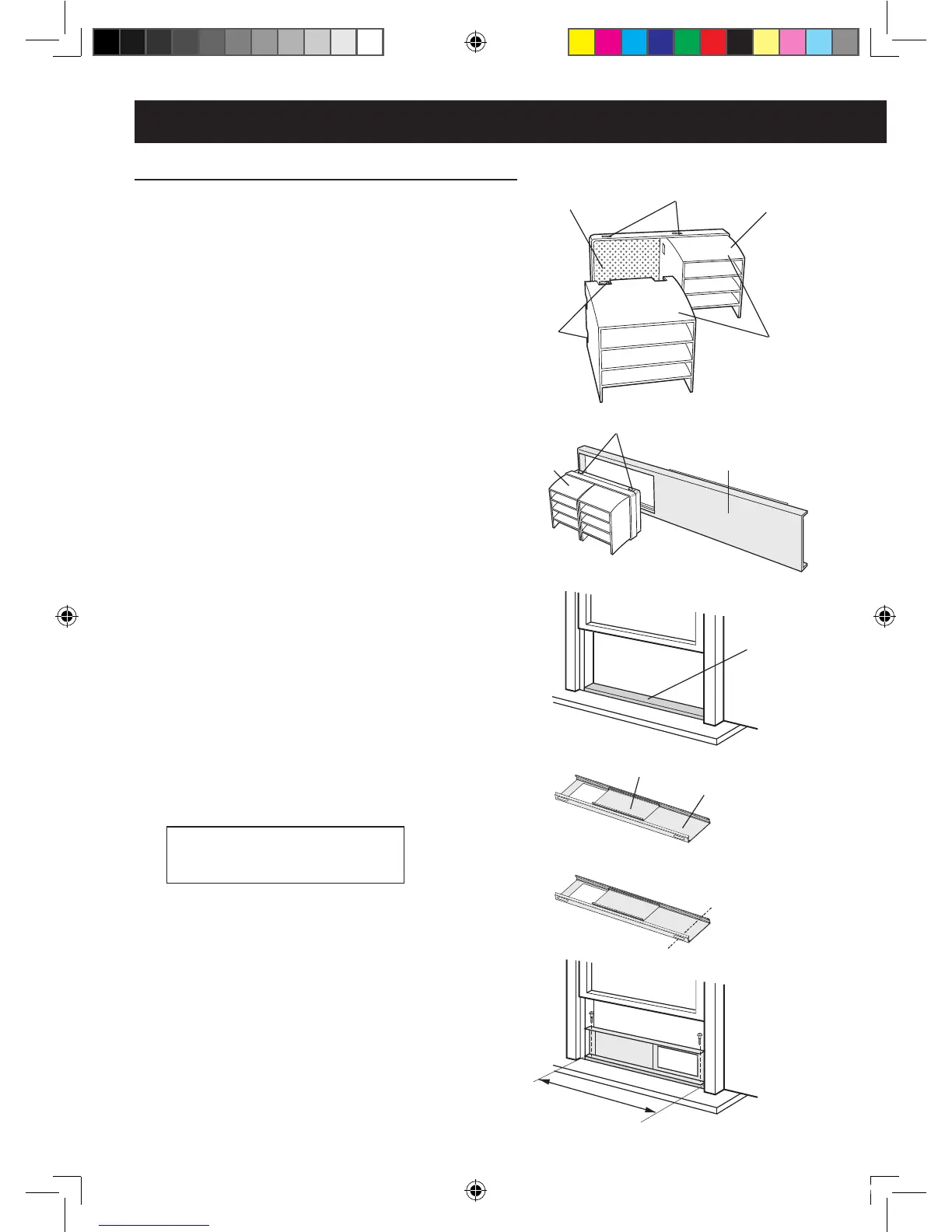

INSTALL WINDOW PANEL
Installation in a double-hung sash window
Hole
Projec-
tion
Insect guard net
Rain guard
"A"
Window panel
Projection
"A"
Foam seal A
21.3" - 28.3"
1
Connect the rain guards to the insect
guard net.
Insert all three projections on each rain
guard into the holes in the insect guard net.
Side “A” will now be at the top, as indicated
in the diagram.
2
Attach the guard combined above to
the window pane
l.
Push the insect guard net rmly to ensure
that its four projections t into the holes in
the window panel.
Side “A” will now be at the top, as indicated
in the diagram.
3
Cut the foam seal A to the proper
length and attach it to the window
stool.
4
Attach the window panel to the
window stool.
Make sure that the exhaust cover is attached
to the window panel.
Inner width of the window
21.3"(540mm) - 28.3"(718mm)
Use the window panel.
The window panel cannot be installed in
windows less than 21.3" (540mm) wide, as
you will be unable to shut the exhaust cover.
(1) Cut the window panel to the same width
as the window.
(2) Open the window sash and place the
window panel on the window sill.
(3) Secure the window panel to the window
stool with 2 screws.
Cut
Window panel
Exhaust cover
