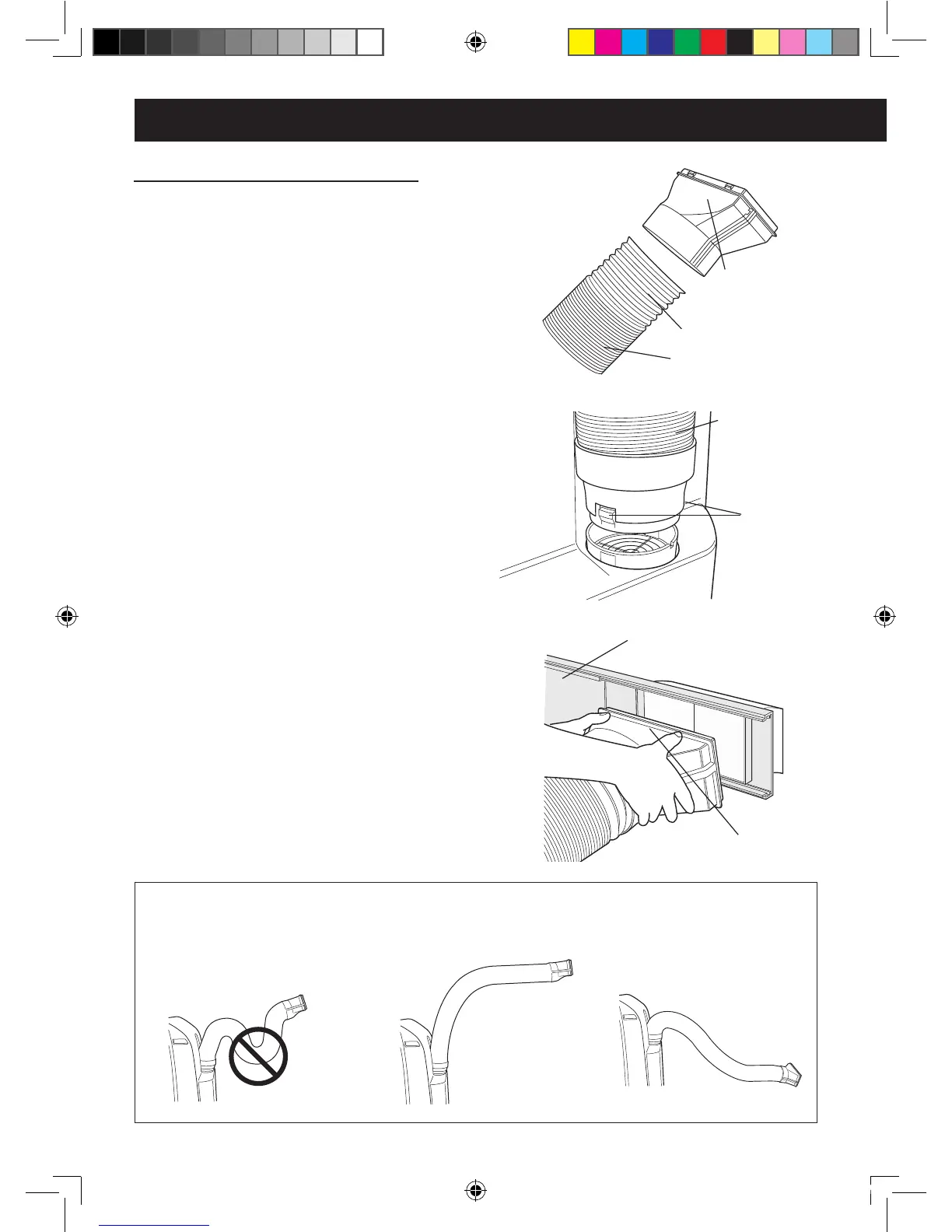

Installation of the exhaust hose
1
Attach the window adapter to the
exhaust hose.
Extend one end of the exhaust hose and
insert it into the window adapter, and turn it
(approx. three times) until it stops.
Make sure they are securely attached.
2
Attach the exhaust hose to the unit.
Insert the two projections into the two holes
on the unit, and rmly attach them to each
other until they click.
3
Slide and open the exhaust cover on
the window panel, and attach the win-
dow adapter.
(Double-hung sash window)
Surface of window adapter marked "TOP"
should be at the top.
(Sliding sash window)
Surface of window adapter marked "TOP"
should be on the window frame side.
The exhaust hose should be as short as possible for operational
efciency;however,itmustnotbetwistedorbent.
Unacceptable
Acceptable
Acceptable
Projection
Hole
INSTALLATION AND REMOVAL OF EXHAUST HOSE
Exhaust hose
Window
adapter
Extend
"TOP"
Exhaust cover
Exhaust hose
To Next Page
