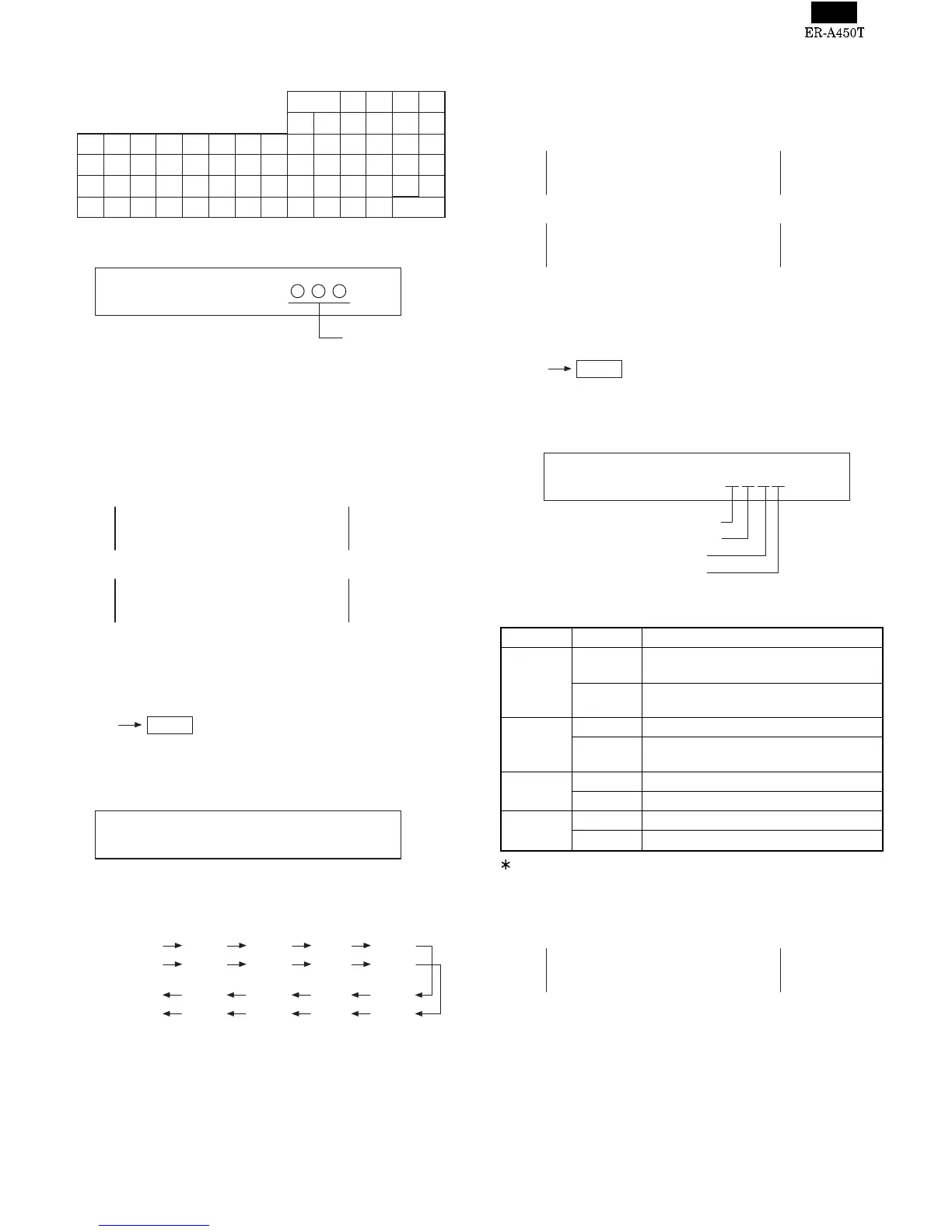

[STANDARD KEYBOARD LAYOUT]
SUMCHECK DATA = A4 + 0E + 04 + 2B + 17 + ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ = 2254
The following message on the front display is displayed.
3) Check items
a) Check of the display in the test and the content of end print.
4) Test termination
This check is terminated automatically.
The test terminates and the test No. and message is printed
[5] Mode switch test
1) Key operation
2) Functional description
Display the following message on the operator display.
When the Mode Switch is moved in the following order, a numerical
value corresponding to each position of the mode switch is displayed
at X.
3) Check items
a) Check of the display in the test and the content of end print.
4) Test termination
The test terminates and the test No. and message is printed
[6] Printer sensor test
1) Key operation
2) Functional description
State of the paper near end sensor is sensed and displayed.
3) Check items
Displayed Description
W (NER)
0 Receipt paper near end sensor:
Detected
1 Receipt paper near end sensor: Not
detected
X (NEJ)
0 Journal paper near end sensor: Detected
1 Journal paper near end sensor: Not
detected
Y (RPES)
0 Receipt paper end sensor: Detected
1 Receipt paper end sensor: Not detected
Z (JPES)
0 Journal paper end sensor: Detected
1 Journal paper end sensor: Not detected
"1" is always display when no sensor is used.
4) Test termination
Press any key. The test terminates and the test No. and message is
printed
44 43 3A 4D 4E
42 37 38 39 30 26
R J 3F 3E 3D 34 33 28 2D 23 2E 2F 25
A4 2B 21 2A 20 29 1F 1E 4C 4B 24 1C 1B
0E 17 18 16 48 15 47 46 0F 05 10 12
04 0D 03 0C 02 0B 01 00 1A 19 06 08
11
1 0 4
Key code
Normal end
Error
1 0 4
1 0 4E-----
105
CA/AT
1 0 5 X
Mode:
x :
PGM2
OFF OP X/ZSRV
0
PGM1
1293
X2/Z2 MGR REGSRV
0
X1/Z1
7654
Normal end
Error
1 0 5
1 0 5E-----
106
CA/AT
1 0 6 WX-YZ
State of JPES
(Journal paper end sensor)
State of RPES
(Receipt paper end sensor)
State of NEJ
(Journal paper near end sensor)
State of NER
(Receipt paper near end sensor)
1 0 6
5 – 3
