Note that when check , or terminates, the termination print-
out occurs irrespective of any errors that have occurred during the
check. (The program terminates normally only when no error print-out
has occurred.)

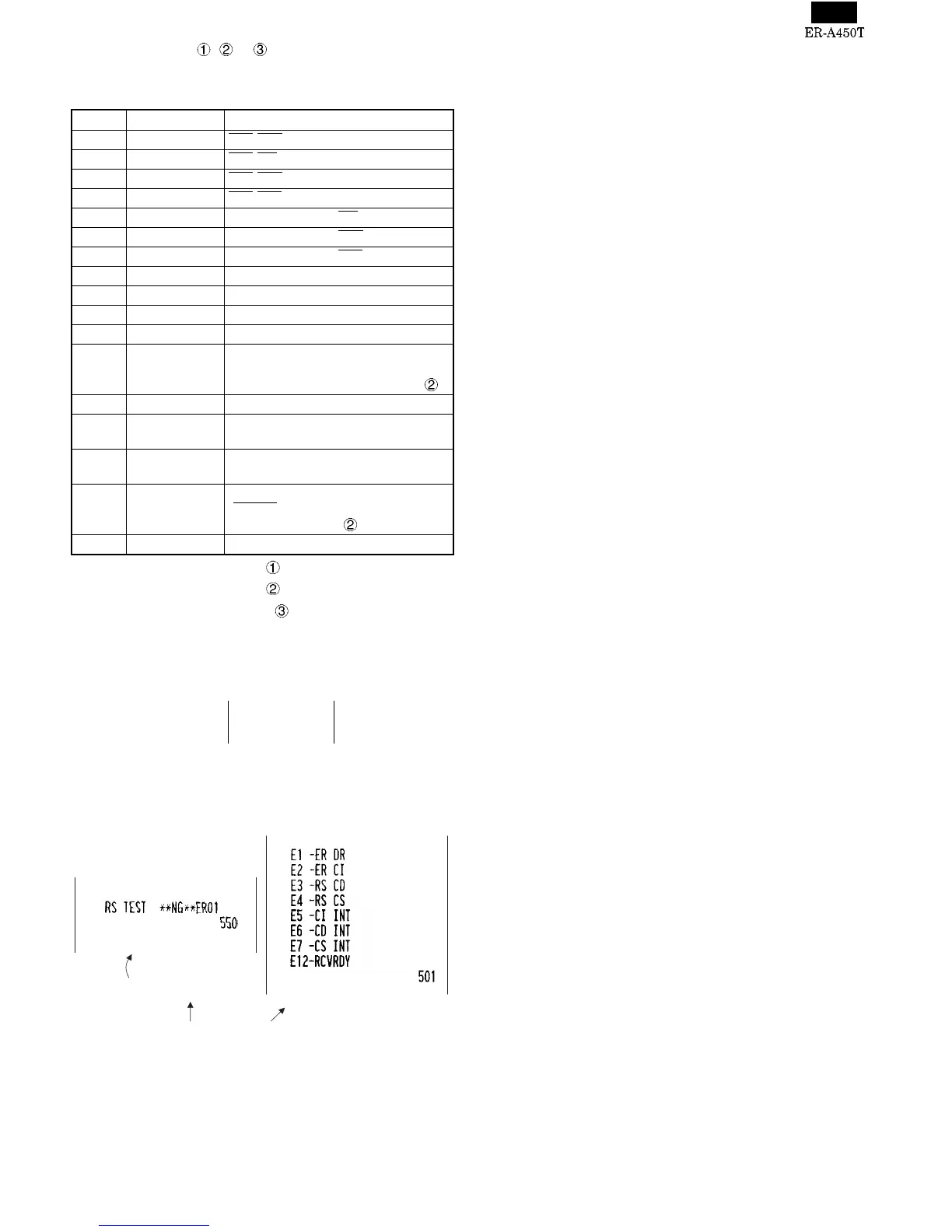

ERROR ERROR PRINT Contents
1E1-ER DR
ERn-DRn ERR
2E2-ER CI
ERn-CIn ERR
3 E3-RS CD
RSn-CDn ERR
4 E4-RS CS
RSn-CSn ERR
5 E5-CI INT Interruption error of
CIn
6 E6-CD INT Interruption error of
CDn
7 E7-CS INT Interruption error of
CSn
8 E8-TXEMP TXEMPn error
9 E9-TXEMP I Interruption error of TXEMPn
10 E10-TXRDY TXRDYn error
11 E11-TXRDY I Interruption error of TXRDYn
12
E12-RCVRDY RCVRDYn error
(Reception is impossible. TRQ1 has
occurred during execution of check
.)
13 E13-RCVRDY I Interruption error of RCVRDY
14
E14-SD RD SDn-RDn ERR
(Data error)
15
E15-SD RD SDn-RDn ERR
(Data error, Flaming error)
16
E16-TIMER TIMERn error
(
TMRQn cannot be set after
termination of check
.)
17 E17-TIMER I Interruption error of TRQ1
Errors that may occur during check
(control signal check): E1∼ E7
Errors that may occur during check
(data transfer check): E8∼ E15
Errors that may occur during check
(timer check): E12, E16 and
E17
4) Test termination
The program automatically terminates when a check is finished.
Termination print-out:
50nn
nn : 01 or 50
Ref.:Print generated when an error occurs
When no communication is established:
(w/o loopback connector)
Diag #550 (ch8) Diag #501 (ch1)
Contents of print
Print of an error
encountered first
The contents of the printout are different even if the error is the same.
5 – 7
