Sharp GF-777 User Manual

UNPLUG THE BOOMBOX AND REMOVE ANY BATTERIES!!

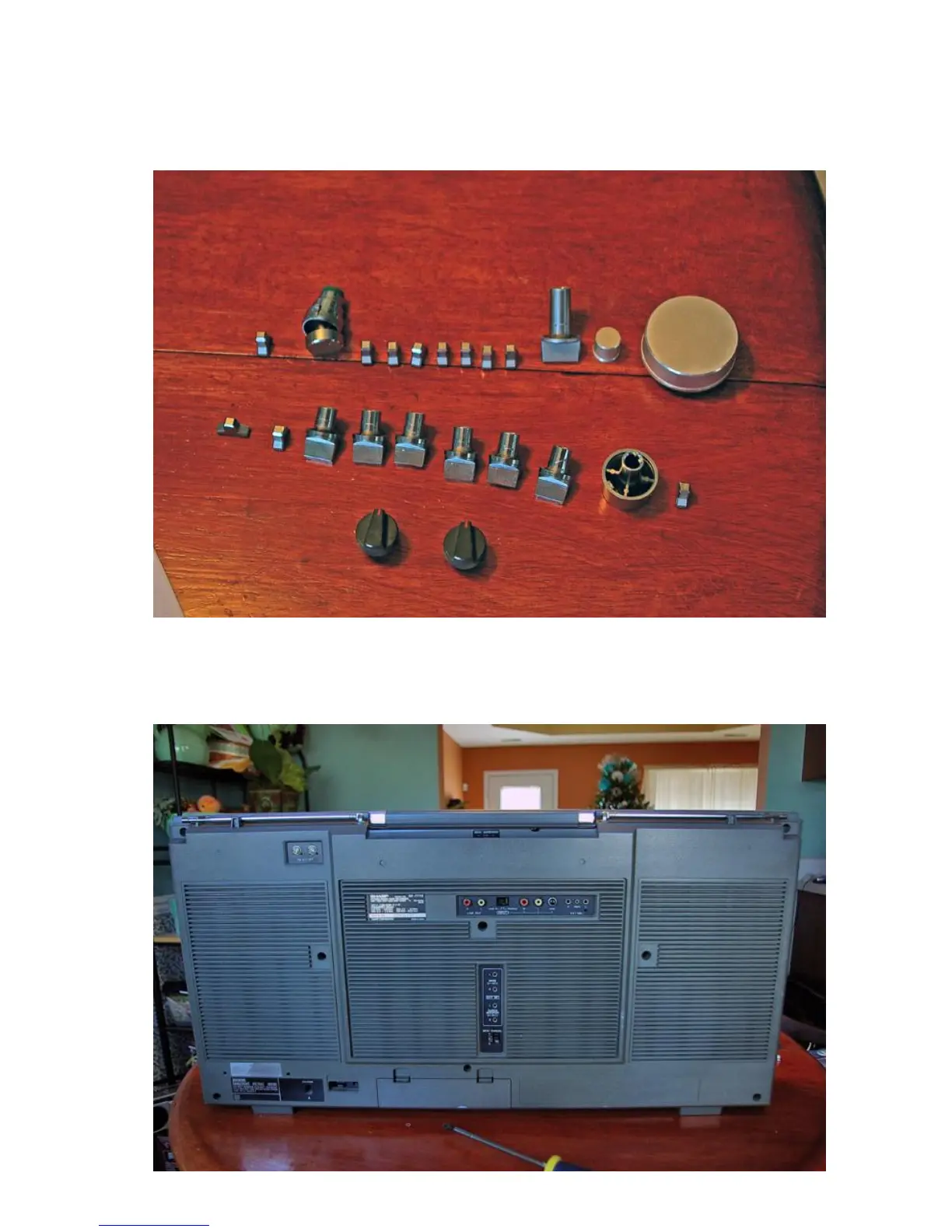

Remove all of the knobs and switch covers on the front side of the boombox. I like to line them up in
the order I took them off of the boombox.
Turn the boombox around and remove the screws holding the boombox together. If you do this part
right, all of the screws will stay in their respective holes. Just in case the threads are slightly different
for each screw, you lessen the possibility of wearing out the threaded posts.

Sharp GF-777 Specifications

General

Country	Japan
Manufacturer	Sharp
Model	GF-777
Type	Portable Stereo System
Speakers	4 (2 woofers, 2 tweeters)
Power Output	20W (10W per channel)
Tape Decks	2
Radio	AM/FM
Inputs	Microphone
Power Source	AC 110/220V, 50/60Hz or 10 x D batteries
Frequency Range	FM: 88 - 108 MHz, AM: 530 - 1605 kHz
Outputs	Headphones
