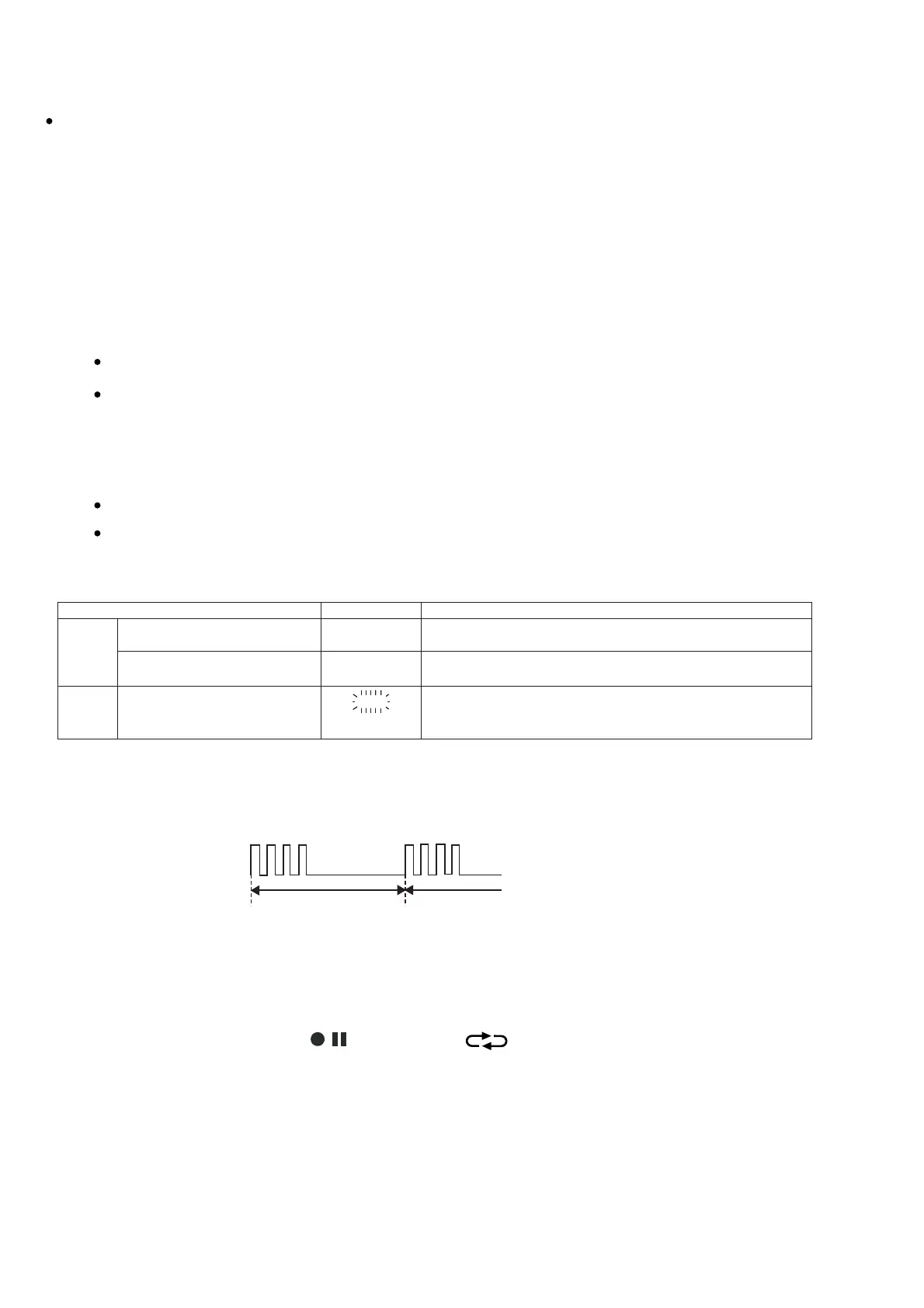

GX-CD5100W
2 – 5
[5] CD SECTION
Adjustment
Since this CD system incorporates the following automatic adjustment
functions, readjustment is not needed when replacing the pickup. Therefore,
different PWBs and pickups can be combined freely.
Each time a disc is changed, these adjustments are performed automatically.
Therefore, playback of each disc can be performed under optimum conditions.
Items adjusted automatically
Standard Specification of Stereo System Error Message Display contests
1) Offset adjustment (The offset voltage between the head amplifier output and
the VREF reference voltage is compensated inside the IC.)
Focus offset adjustment
Tracking offset adjustment
2) Tracking balance adjustment
3) Gain adjustment (The gain is compensated inside the IC so that the loop
gain at the gain crossover frequency will be 0 dB.)
Focus gain adjustment
Tracking gain adjustment
Error Contents Display Notes
TUNER
CD 'ER-CD01'
'NO DISC'
PU-IN SW Detection NG
PLL Unlock.
Pickup Mechanism Error
Focus Not Match/IL Time Over
PLL Unlock.
FM
87.50
MHz
FLASHING
TIMER
LED
1 FRAME
OFF OFF
(REPEAT)
FLASHING
+B PROTECTION is condition when irregular process occur on power supply line.
BEFORE TRANSPORTING THE UNIT
The following process need to be taken after set tapering/parts replacement.
1. Press the ON/STAND-BY button to enter stand-by mode.
2. While pressing down the TAPE 2 button and the button, press the
SIMBA MODE/DEMO button.
3."CLEAR AL" appears.
4. Unplug the AC cord and the unit is ready for transporting.
+B PROTECTION display
In case +B PROTECTION had occurred, the unit will automatically shut down and timer standby
LED will be flashing as below.
To Next Page
