GX-CD5100W
7 – 2
Although a CD is inserted and the cover is closed,
"NO DISC" is displayed.

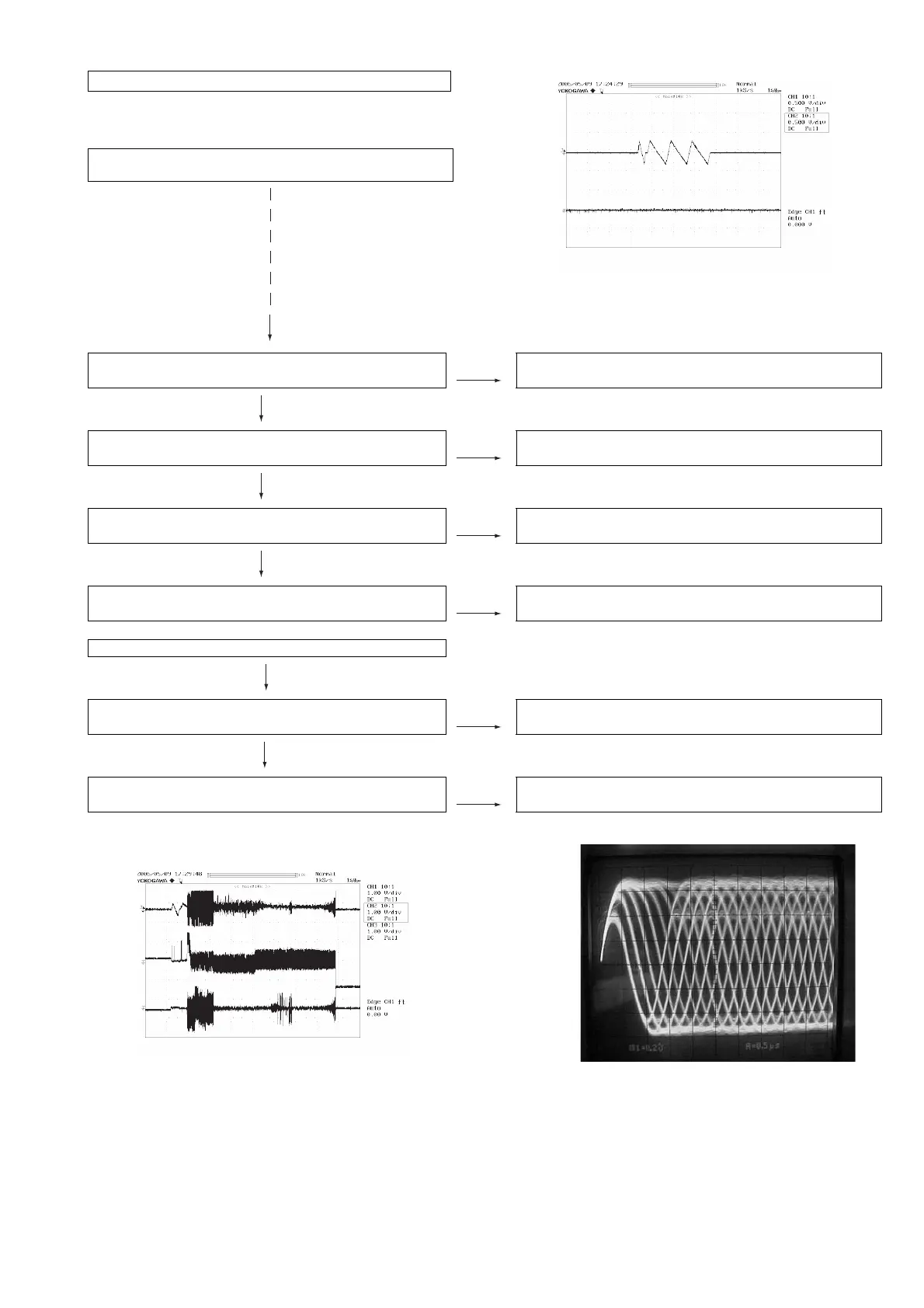

(1) Focus-RF system check.
Push Open/Close Button without inserting a disc, and try starting
the playback operation.
Figure 1
FDO
TDO
1. Does the pickup move to the PICKUP-IN Switch (NSW1)
position ?
No Sled motor (NM2).
Yes
2. Does the focus (lens) move up and down ?
(Waveform drawing Figure 1)
No Check the focus peripheral circuit.
Yes
3. Is the laser lit ? No Check the laser diode driver Q1 peripheral circuit.
Yes
4. Is the turntable rotating ? No Spindle motor (NM1).
When a disc is loaded, start playback operation.
1. Is focus servo activated ?
(Waveform drawing Figure 2)
No Pins 5~9, 11, 18 and 19 on IC1
Check the laser diode driver Q1 peripheral circuit.
Yes
2. Is the RF waveform normal ?
(Waveform drawing Figure 3)
No If the level is not normal.
Figure 2
FDO
TE
RFOUT
Figure 3
RFOUT
To Next Page
