Sharp HT-DV40H - Chapter 5. Circuit Description

HT-DV40H
5 – 1
CHAPTER 5. CIRCUIT DESCRIPTION

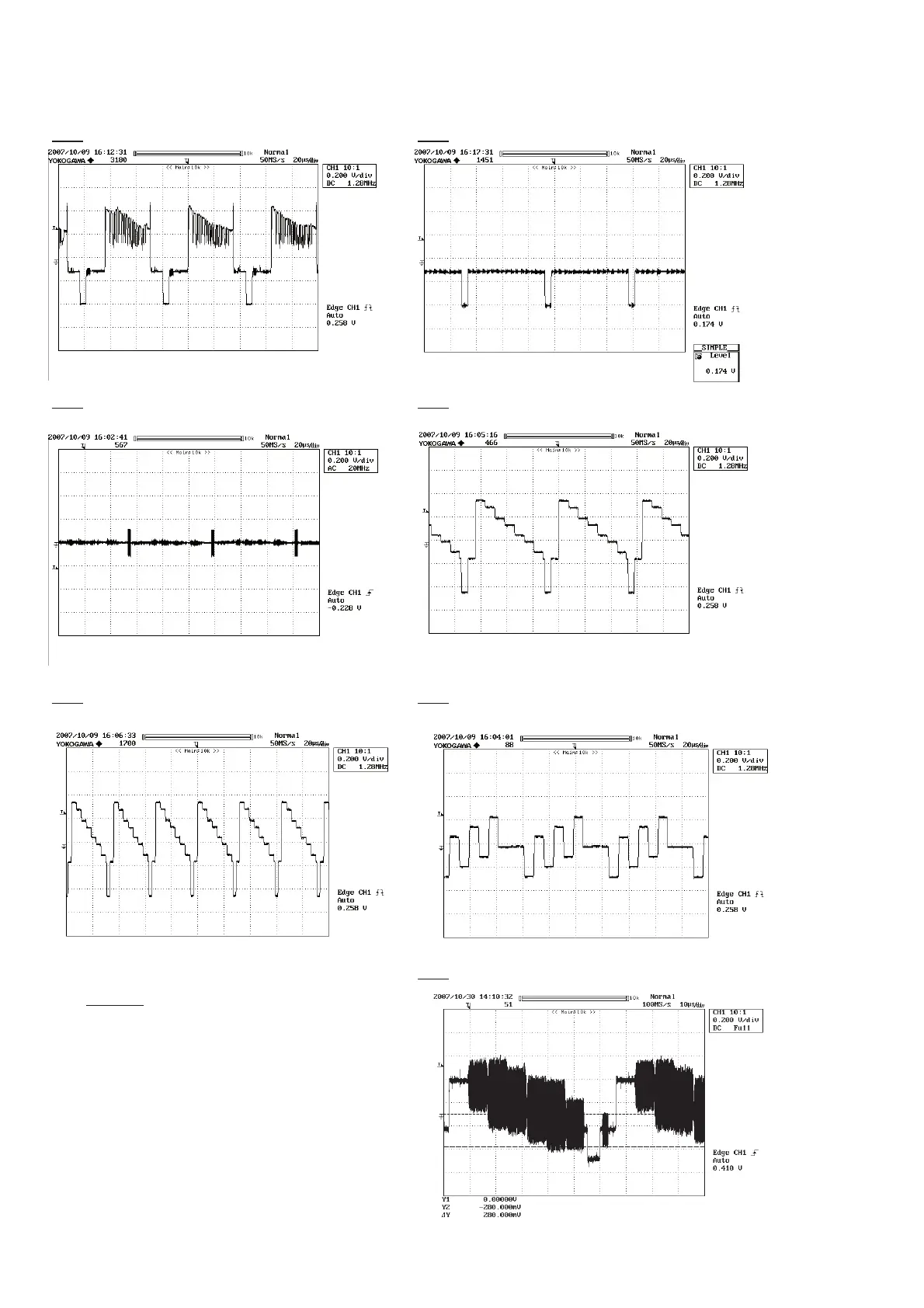

[1] Waveform of CD / DVD Circuit
WF2 S-VIDEO - Y OUTPUT
WF3 S-VIDEO OUT - C OUT WF4 COMPONENT VIDEO OUT - Y Output
(Interlace mode)
WF5 COMPONENT VIDEO OUT - Y Output WF6 COMPONENT VIDEO OUT - Pb/Cb Output
(P-Scan mode) (Interlace mode)
WF1 VIDEO OUT
VIDEO OUT
WF7
* NOTE:
WF1 ~ WF3 : Power On (stop) Mode.
WF4 ~ WF8 : DVD Test Disc TDV-540A.
(Colour Bar 75%)
