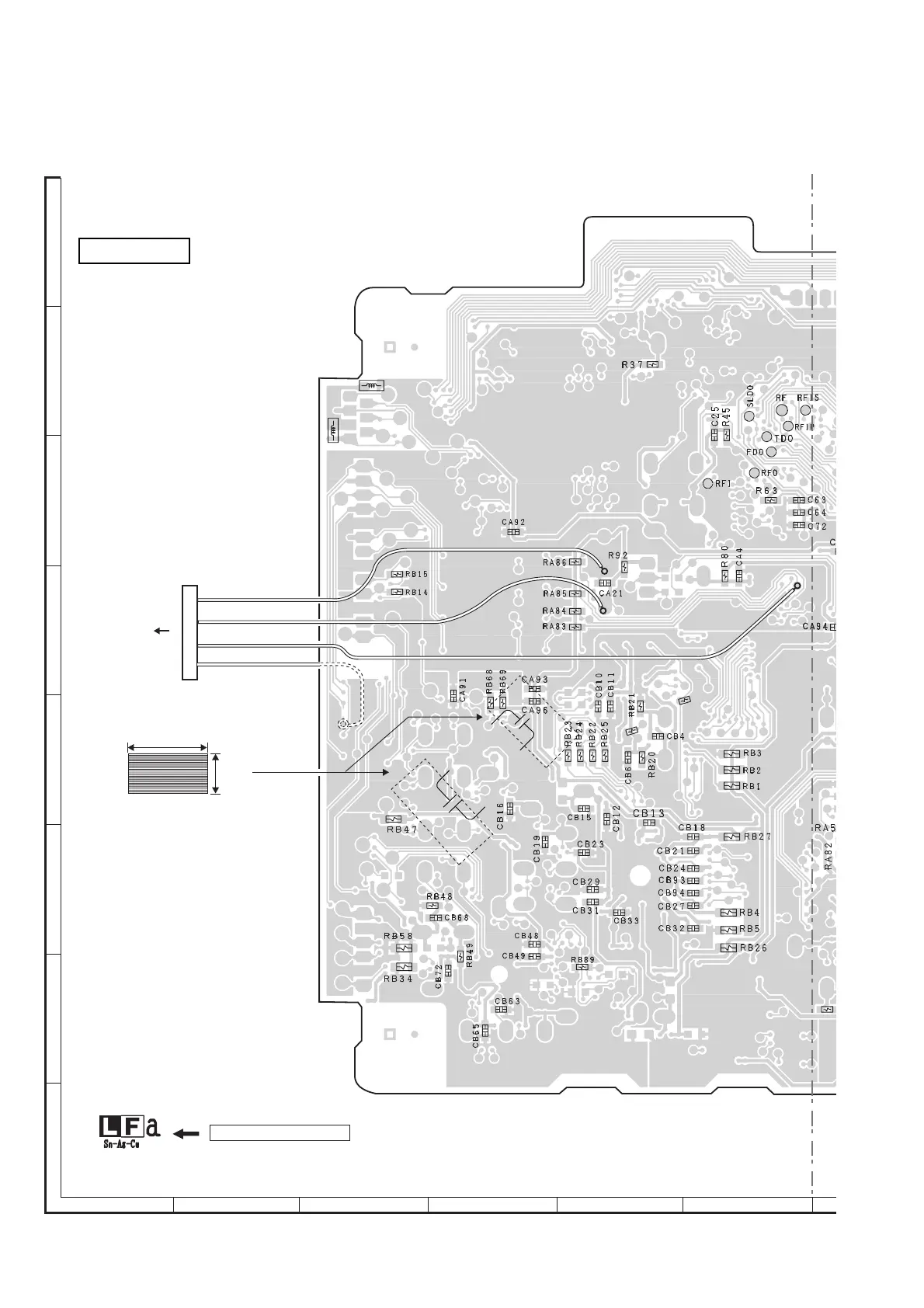

Figure 6-43: WIRING SIDE OF DVD PWB (BOTTOM VIEW) (1/2)
RB95
RB94
20mm
10mm
CB97
CB98
GR
GR
RB1
RC3
BK
BL
BK
BL
RD
TO
VIDEO OUT PWB-B4
(CNP201)
CNS201
Filament tape
Lead-free solder indication
Lead-free solder is used in the DVD PWB.
Refer to "Precautions for handling lead-free solder" for instructions
and precautions.
DVD PWB-C
