Sharp HT-SB147 User Manual

6
660mm
660mm
1
1
2
(4mm)
2
660mm
ARC OPTICAL LINE IN UPGRADE
~AC IN

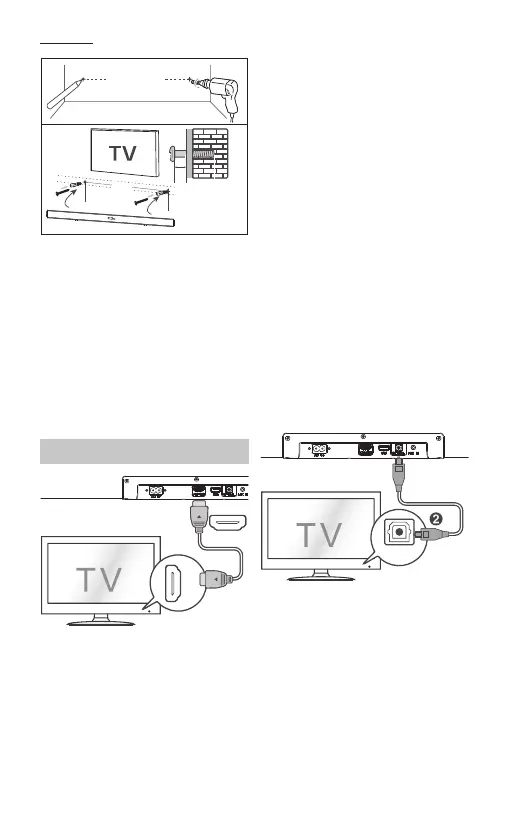

1. Drill 2 parallel holes (Ø 6mm) in the
wall. The distance between the holes
should be 660 mm.
 Firmly  x one plug into each hole
in the wall and then insert screws
into them.
2. Leave a 4mm gap between the wall
and the screw’s head. Lift the unit‘s
integrated wall brackets over the
heads of the screws and slot into
place.
Connections
(ARC/CEC)
HDMI ARC
HDMI ARC input
The ARC (Audio Return Channel) function
allows you to send audio from your ARC-
compliant TV to your sound bar through a
single HDMI connection. To enjoy the ARC
function, please ensure your TV is both
HDMI-CEC and ARC compliant and set up
accordingly. When correctly set up, you
can use your TV remote control to adjust
the volume output (VOL +/- and MUTE) of
the sound bar.
 Connect the HDMI cable (not included)
from unit‘s HDMI (ARC) socket to the
HDMI (ARC) socket on your ARC com-
pliant TV. Then press the remote control
to select HDMI ARC.
TIPS:
• Your TV must support the HDMI-CEC
and ARC function. HDMI-CEC and ARC
must be set to On.
• The setting method of HDMI-CEC and
ARC may di er depending on the TV.
For details about ARC function, please
refer to your TV owner’s manual.
• While in HDMI ARC mode, if there’s no
sound output from the unit (the display
will show “InVALId”), you may need to
activate PCM signal output on your
source device (eg. TV, DVD or Blu-ray
player).
• Only HDMI cables of version 1.4 or
higher can support the ARC function.
OPTICAL
OPTICAL input
• Use the optical cable to connect the
optical input of this soundbar to the
optical output of VCD, CD, VCR, DVD
player.
TIPS:
• While in OPTICAL mode, if there’s no
sound output from the unit (the display
will show “InVALId”), you may need to
activate PCM signal output on your
source device (eg. TV, DVD or Blu-ray
player).

Sharp HT-SB147 Specifications

General

Equalizer	Yes
RMS rated power	150 W
Audio output channels	2.0 channels
Bluetooth version	4.2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired & Wireless
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Soundbar power consumption	25 W
Power consumption (standby)	0.5 W
Certification	CE, REACH/PAH/SCCP
Product color	Black
Audio formats supported	MP3, WAV
Package depth	155 mm
Package width	1010 mm
Package height	124 mm
Package weight	1980 g
Sustainability certificates	RoHS
Number of speakers	2
Subwoofer included	-

Weight and Dimensions

Depth	88 mm
Width	920 mm
Height	63 mm
Soundbar weight	3050 g
