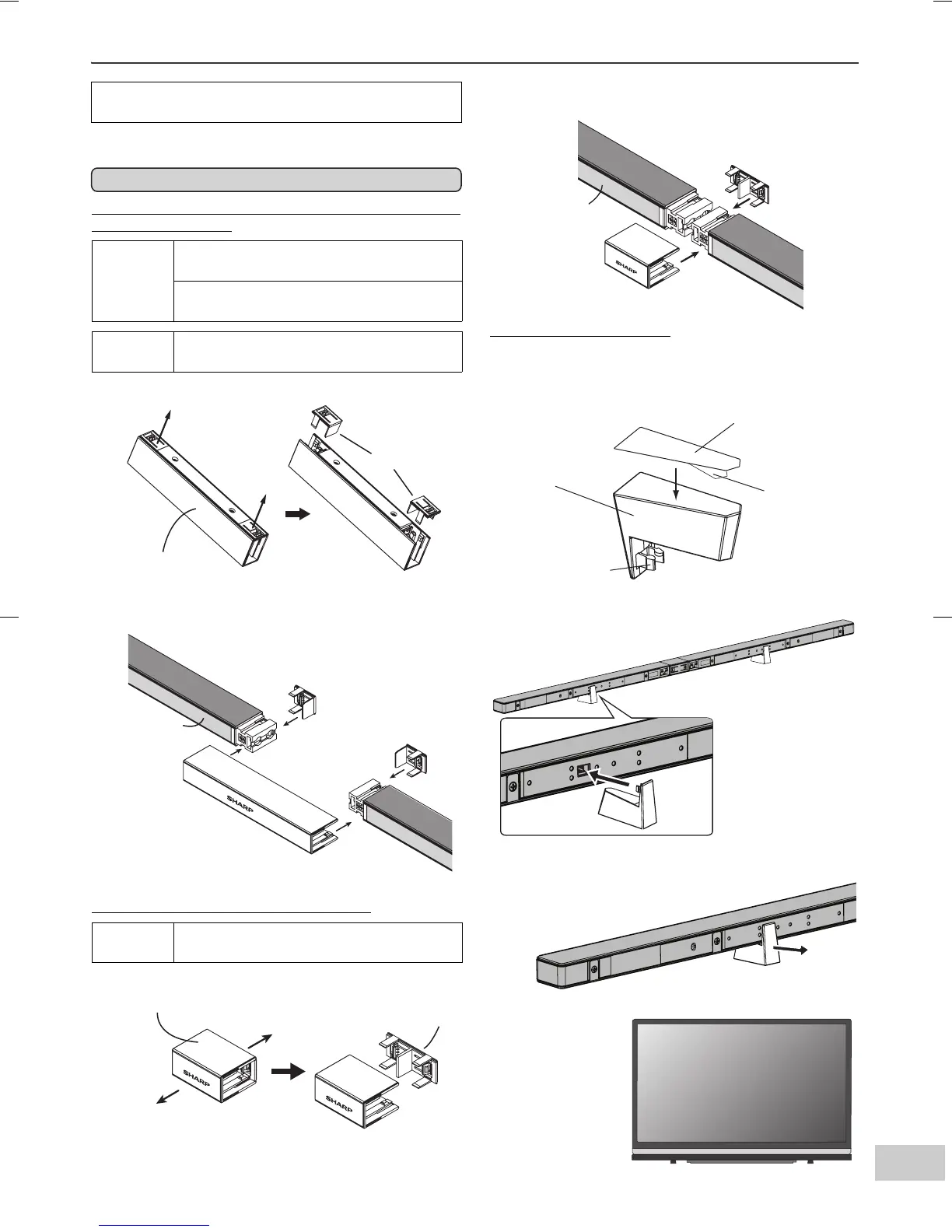

System preparation
Select from three installation methods according to the
preferred position.
1. Using stand (horizontal arrangement)
For 52" (132 cm), 60" (152 cm) or 70" (177 cm) TV
sound bar assembly
1. Pull out both joint covers as below.
2. Place the two sound bars near to each other and slot in
the sound bar joint and its covers as below.
For 46" (117 cm) TV sound bar assembly
1. Pull out the joint cover as below.
2. Place the two sound bars adjacent to each other and
slot in the sound bar joint and its cover as below.
To fix the sound bar stand
1. Peel off the double sided tape separator and attach the
sound bar stand cushion at the bottom surface of the
sound bar stand.
2. Fix the sound bar stand as shown.
Make sure to unplug the AC power lead before
installing the unit or changing the position.
For model
HT-SL75
Use Sound bar cover joint (short : 369 mm
(14 - 17/32")) for 60" (152 cm) TV.
Use Sound bar cover joint (long : 594 mm
(23 - 3/8")) for 70" (177 cm) TV.
For model
HT-SL70
Use Sound bar cover joint (long : 188 mm
(7 - 13/32")) for 52" (132 cm) TV.
For model
HT-SL70
Use Sound bar cover joint (short : 55 mm
(2 - 5/32")) for 46" (117 cm) TV.
Sound bar joint
Cover
S
O
U
N
D
B
A
R
H
O
M
E T
H
E
AT
E
R
S
Y
S
T
E
M
HT-S
L
7
0
Front side of
the sound bar
Right
Left
SOUND BAR HOME THEATER SYSTEM HT-SL70
SOUND BAR HOME THEATER SYSTEM HT-SL70
Sound bar joint (short)
Cover
S
O
U
N
D
BA
R
H
O
M
E
T
H
E
AT
E
R
S
Y
S
T
E
M
H
T
-
S
L
7
0
Front side of
the sound bar
Right
Left
Sound bar stand cushion
Double
sided
tape
separator
Sound bar
stand
Hook
Note:
Sound bar stand can be removed
by pulling it off backward from
the sound bar.
Suggestion of the
sound bars and
LCD TV horizontal
arrangement.
To Next Page
