HT-SL70
E-1
2011 October 7
HT-SL70 and HT-SL75 Sound Bar Home Theater system consisting of Sound Bar and Subwoofer.
Introduction
Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual
carefully. It will guide you in operating your SHARP product.
Notes:
● This product is recommended for flat panel TV (LCD and plasma).
● For HDMI connection, this product only supports PCM (Pulse Code Modulation) signals.
● This product is controlled via HDMI CEC (Consumer Electronics Control) specification, therefore
for HDMI connection, your TV’s CEC must be enabled. For detail, refer to the operation manual of the TV.
● For TV without HDMI CEC, headphone or RCA (variable output) analogue connection is available.
● For TV without HDMI, headphone or RCA (variable output) connection is required.
● This unit supports HDMI which enables ARC (Audio Return Channel).
The illustrations printed in this operation manual are for the model HT-SL70.

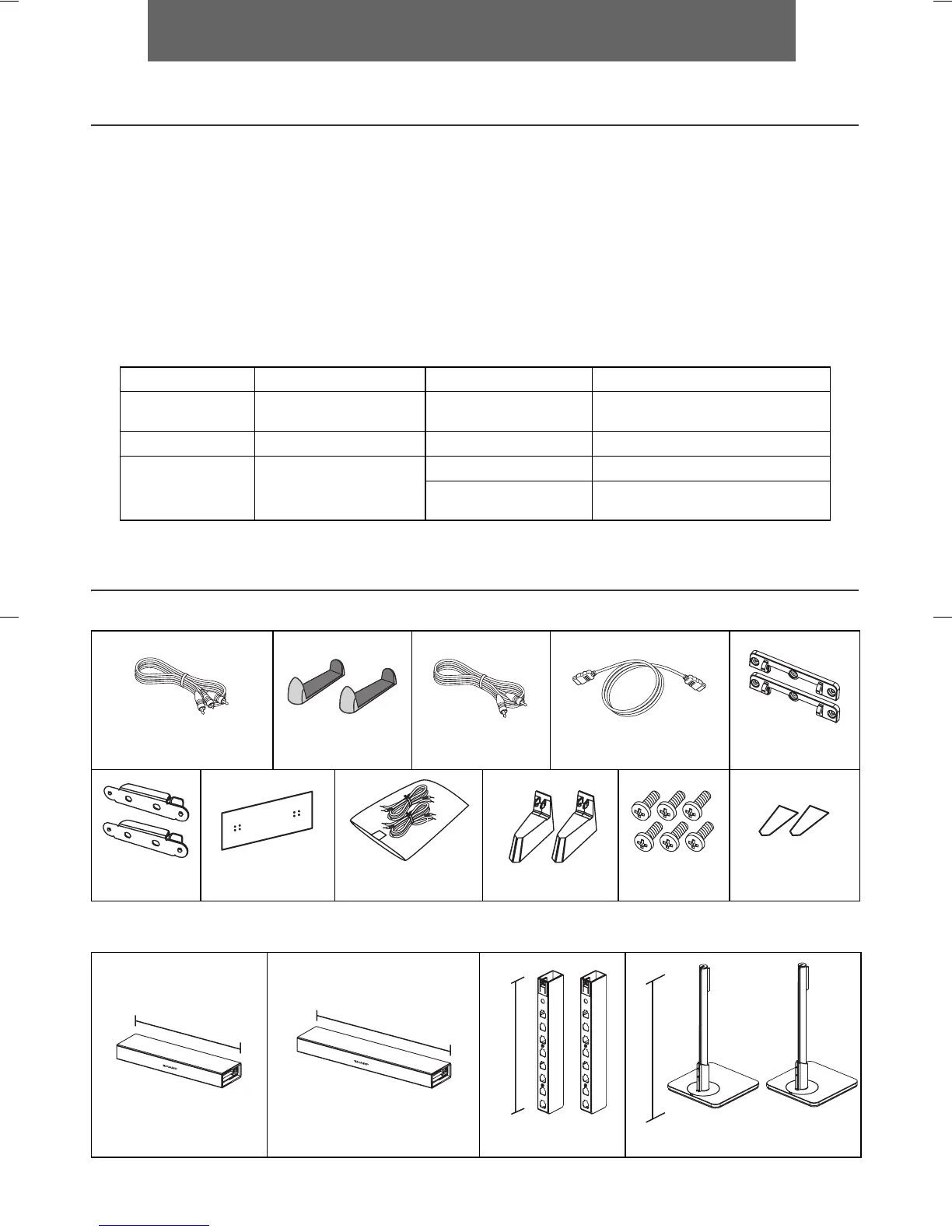

Accessories
The following accessories are included. This product has no remote control.
For HT-SL75 only.
Recommended Connection:
TV Type CEC FUNCTION CONNECTION CONNECTION METHOD
HDMI
(with ARC)
MUST BE ENABLED
HDMI IN
(ARC)
Page 8, Method 1
with HDMI MUST BE ENABLED HDMI IN Page 8, Method 2
HDMI TV without
CEC & ARC or non
HDMI TV
NONE
HEADPHONE OUT Page 9, Method 1
RCA
(VARIABLE OUT)
Page 9, Method 2
RCA to Headphone
Cable (1pin - 2 pins) x 1
Subwoofer Stand
x 2
Audio Cable x 1 HDMI Cable x 1 Wall Mount
Bracket x 2
Wall Mount
Angle x 2
Pattern Paper Speaker Wire Sound Bar Stand
x 2
Screw for
Brackets x 6
Sound Bar Stand
Cushion x 2
Sound Bar Cover Joint
for 60" (152 cm) TV (short) x 1
Sound Bar Cover Joint
for 70" (177 cm) TV (long) x 1
Stand Cover x 2 Stand Base x 2
S
OUND
B
AR HOMETHE
A
TER
S
Y
S
TE
M
H
T
-
S
L
75
369 mm
(14 - 17/32”)
S
OUND BAR HOME
THE
A
TER
S
Y
STE
M
H
T
-
S
L
75
594 mm
(23 - 3/8”)
257 mm (10 - 2/16”)
336 mm (13 - 7/32”)
ENGLISH
To Next Page
