4-4
A7121DC
CN802
Fig. D3
CL1104
CN1201
CN1202
CN1301
CN401
CN403
To
LCD
Module
Main CBA
CN1302
IR Sensor CBA
CN62 CN61
CN101
CN102
DTV Module CBA Unit
CL1107
Function CBA
CN1411
CN1401CN1402
To LCD Module
LVDS CBA
Unit
To
Speaker
CL801
Junction-A
CBA
To Speaker
CL802
Junction-B
CBA
CN801

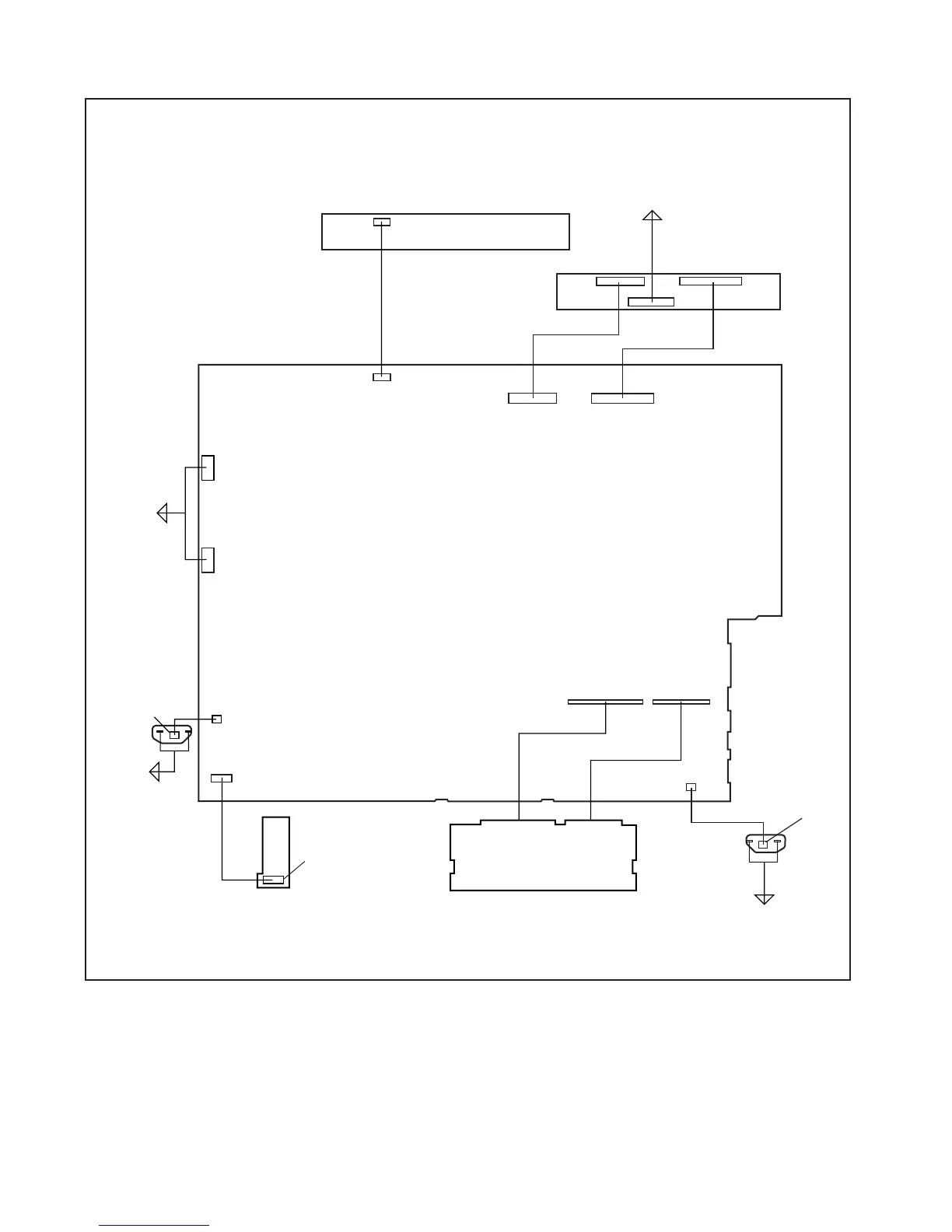

TV Cable Wiring Diagram
