Sharp LC-15AV7U User Manual

9-4
NOTE: CBA AND PWB MEANS PRINTED WIRING BOARD.
A7121SCM2

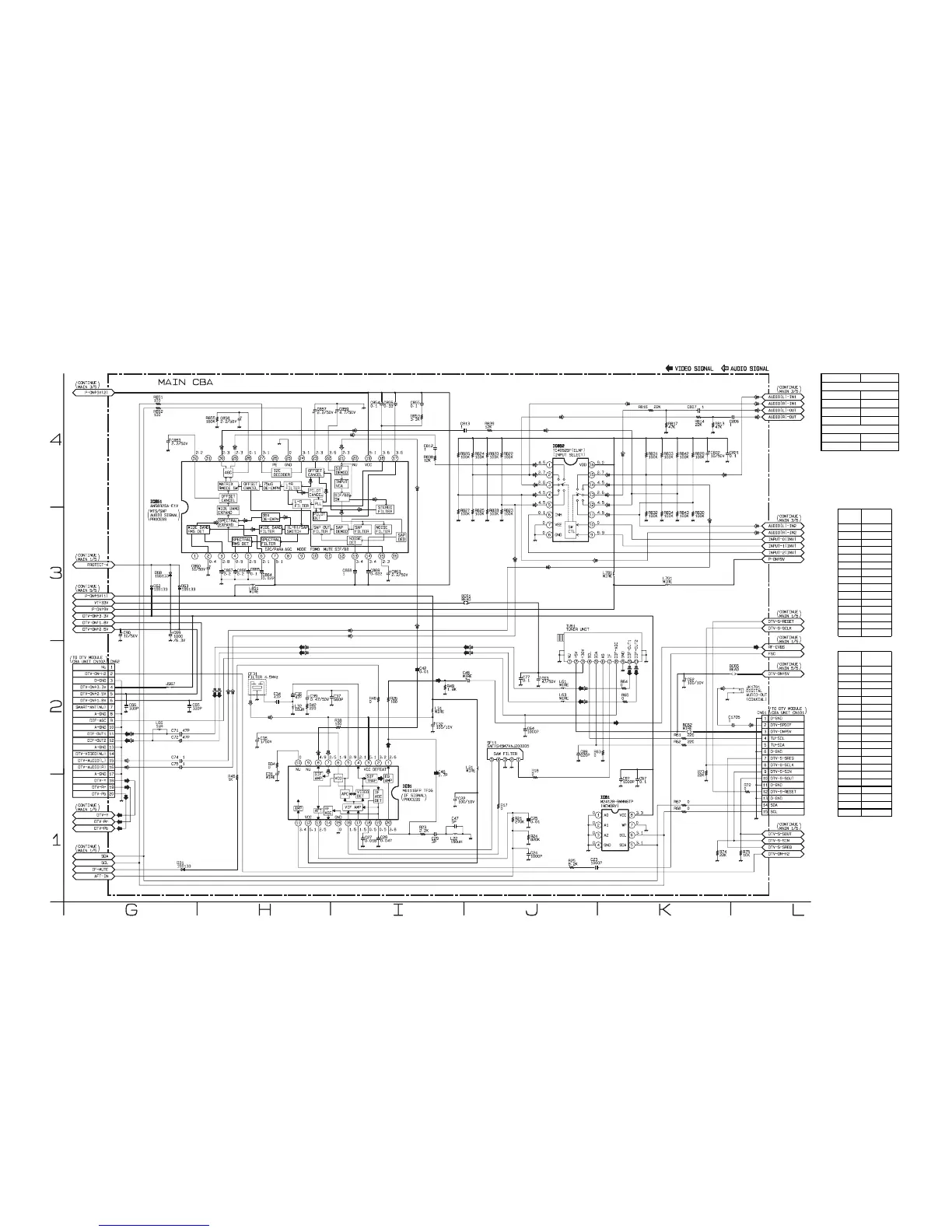

Main 2/5 Schematic Diagram
MAIN 2/5
Ref No. Position
IC31 I-1
IC61 K-1
IC851 G-3
IC852 J-4
CN61 L-2
CN62 G-2
ICS
CONNECTORS
CN61
10
21.9
35.1
43.1
53.1
60
73.2
83.4
93.4
10 0.1
11 0
12 0.1
13 0
14 3.1
15 3.1
CN62
1---
23.3
30
43.4
52.6
61.9
7---
80
94.4
10 0
11 0
12 0
13 0
14 ---
15 2.6
16 2.6
17 0
18 ~
19 ~
20 ~
VOLTAGE CHART
Pin No. Voltage
Pin No. Voltage
