Sharp LC-19LE320 User Manual

LC-19LE320, LC-22LE320, LC-26LE320, LC-32LE320, LC-37LE320, LC-42LE320
24
Fig.6

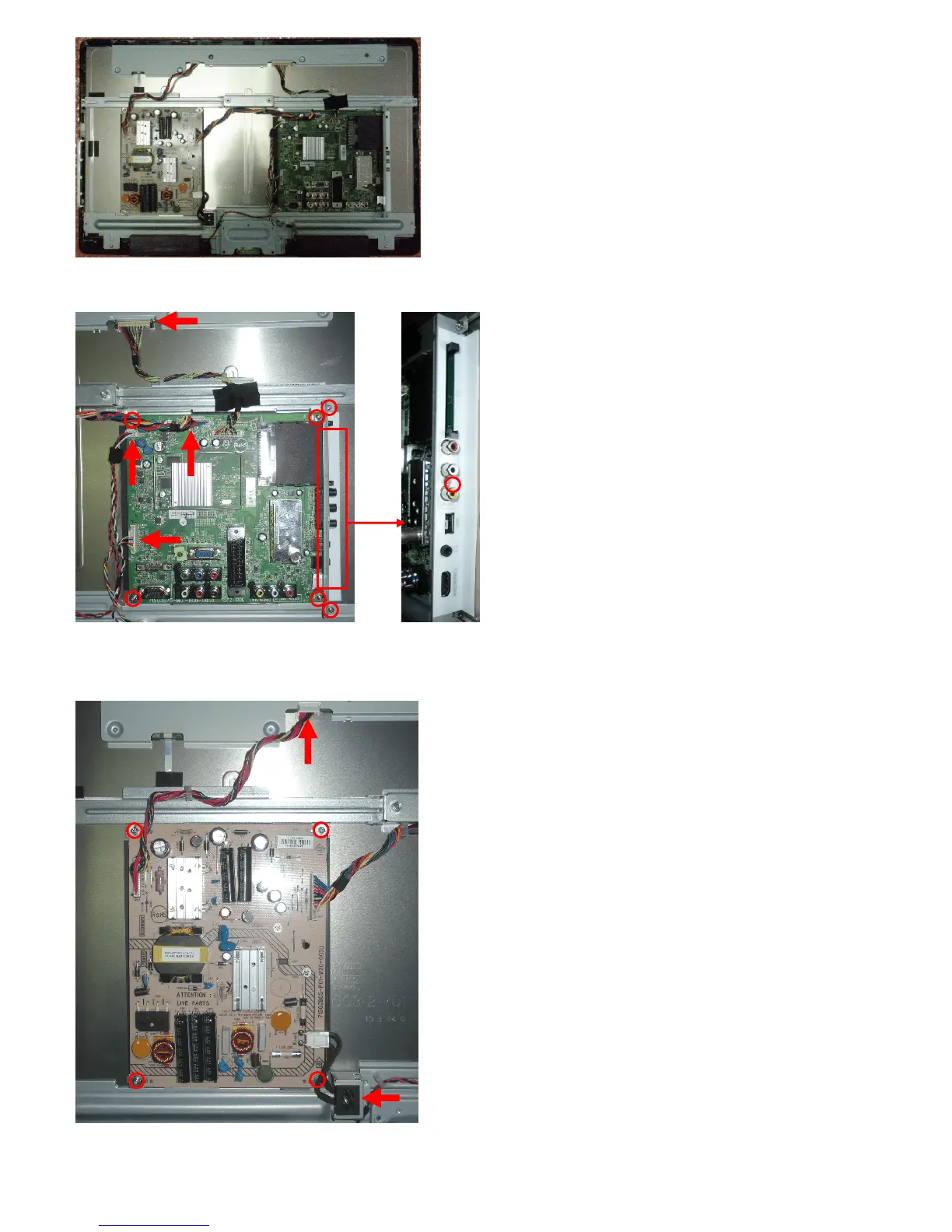

1. Remove the 7 screws and disconnect 4 cables. Detach the Main board as Fig.7 and Fig.8.
Fig.7 Fig.8
2. Remove the 4 screws and disconnect 2 cables. Detach the Power board as Fig.9.
Note: Move the AC port left from the Main frame assy, then disconnect the AC cable from the power board.
Fig.9
3. Release the speaker cable from its clamp, pull up and remove the speaker as Fig.10.
