LC-19LE320, LC-22LE320, LC-26LE320, LC-32LE320, LC-37LE320, LC-42LE320
25
Fig.10

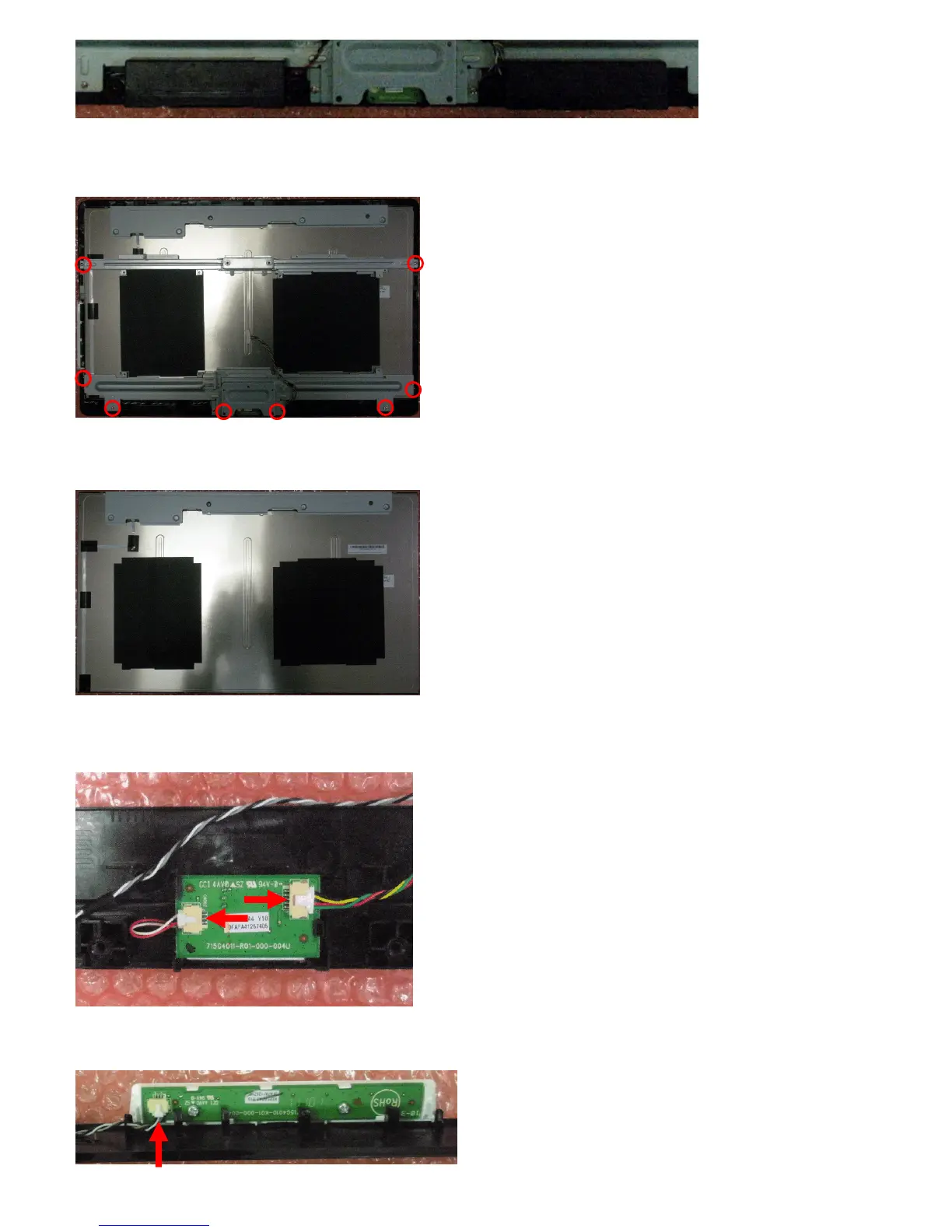

Step 4. Remove the Bracket and Bezel.
1. Remove the 6 screws. Detach the Bracket as Fig.11.
Fig.11
2. Remove the panel from the bezel as Fig.12
Panel:
Fig.12
Step 5. Remove the IR and Key board.
1. Disconnect 2 cables, then release the clips. Detach the IR board as Fig.13.
Fig.13
2. Disconnect 1 cable. Detach the Key board as Fig.17.
Fig.17
