LC-19LE320, LC-22LE320, LC-26LE320, LC-32LE320, LC-37LE320, LC-42LE320
33

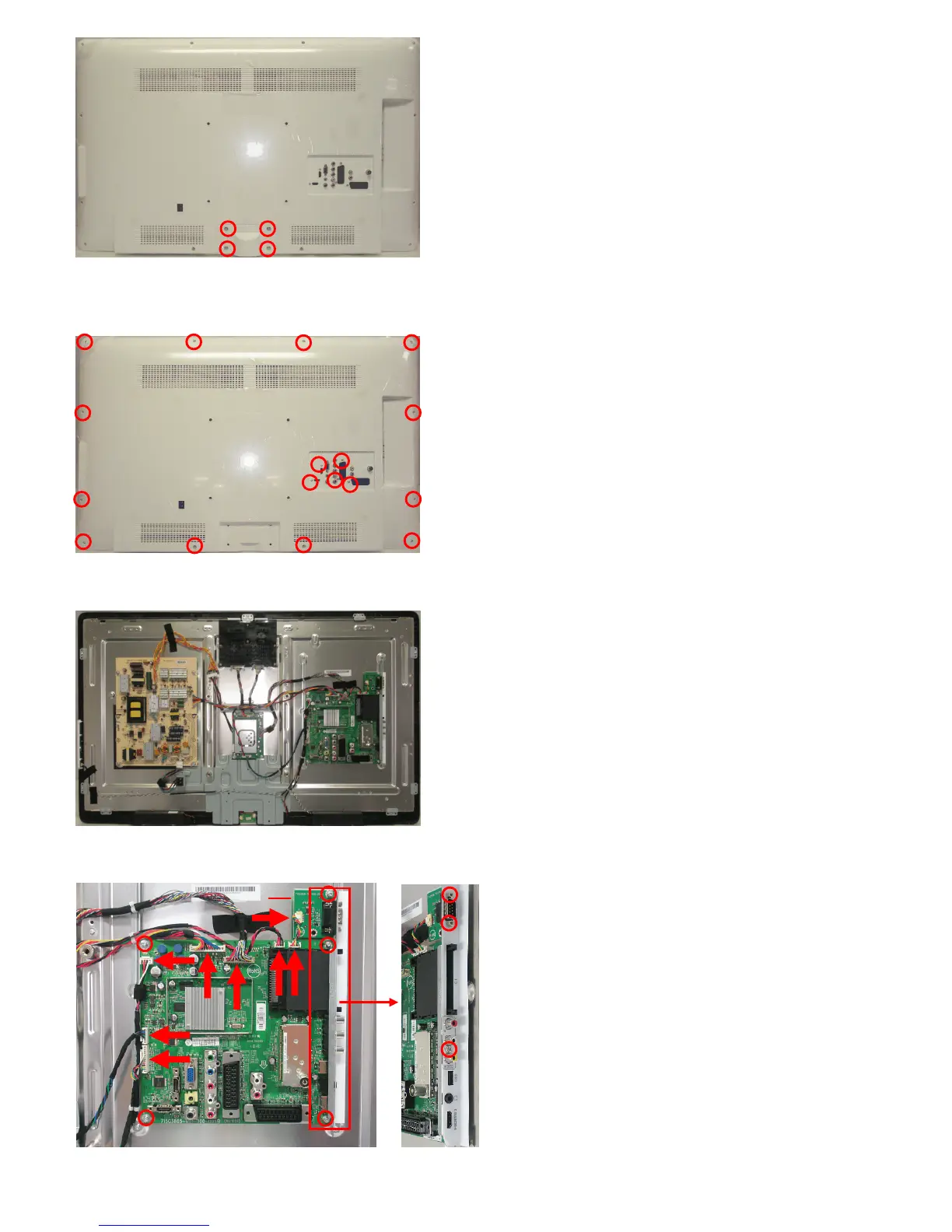

Fig.4
Step 2. Remove the REAR COVER Assy.
1. Remove the 17 screws. Detach the REAR COVER as Fig.5.
Fig.5
Step 3. Remove the Main, RS232, Power and MEMC board.
Fig.6
1. Remove the 8 screws and disconnect 8 cables. Detach the Main and RS232 boards as Fig.7 and Fig.8.
□
Fig.7 Fig.8
2. Remove the 6 screws and disconnect 3 cables. Detach the Power board as Fig.9.
Main board
RS232 board
