LC-19LE320, LC-22LE320, LC-26LE320, LC-32LE320, LC-37LE320, LC-42LE320
34
Note: Move the AC port left from the Bracket, then disconnect the AC cable from the power board.
Fig.9

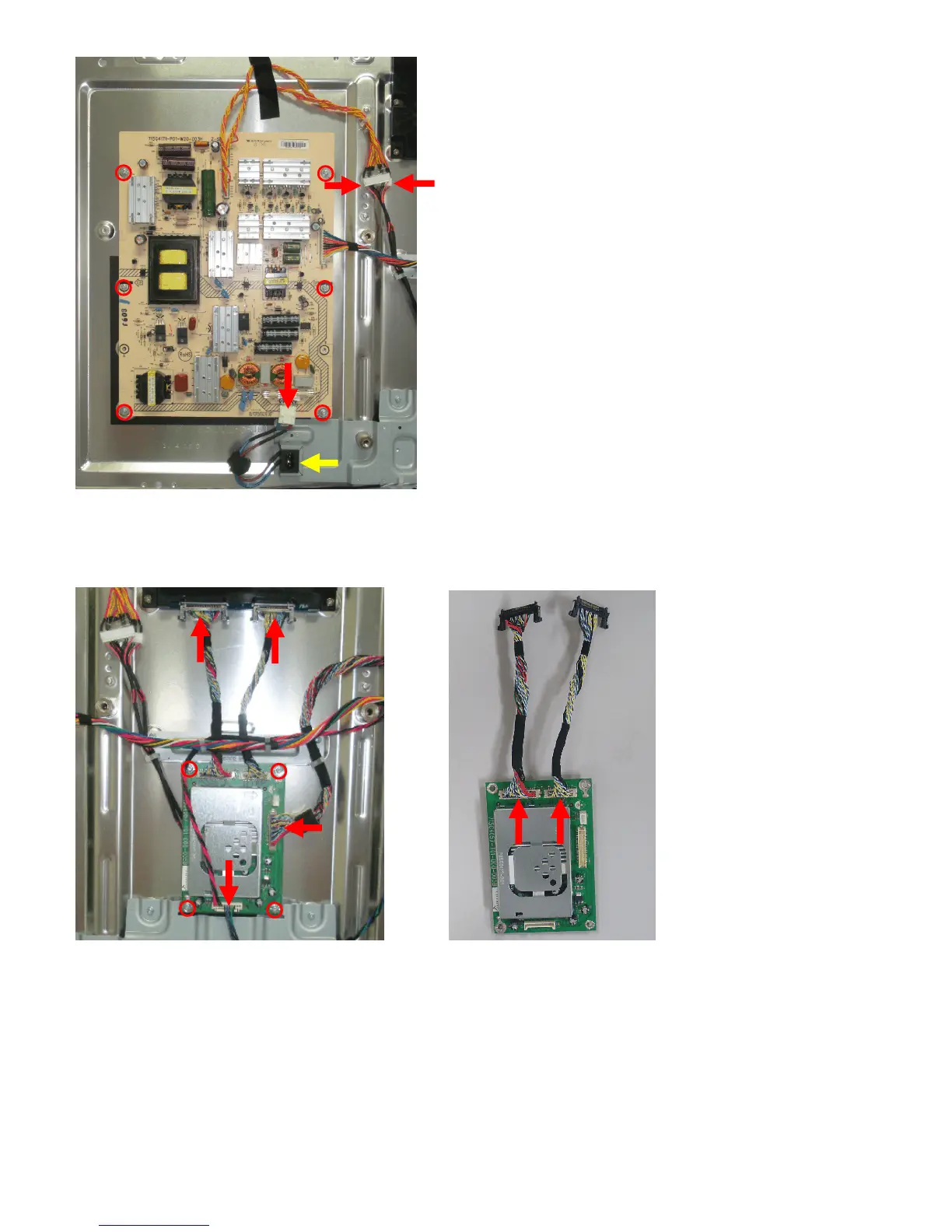

3. Remove the 4 screws and disconnect 4 cables. Detach the MEMC board as Fig.10.
Note: Please disconnect the LVDS cables with the panel firstly, then disconnect the LVDS with the MEMC board as Fig.11.
If you disconnect the LVDS cables with the MEMC board firstly, maybe the panel connector will be damaged because of the short LVDS cables.
Fig.10 Fig.11
Step 4. Remove the Bracket, Speakers and Bezel.
1. Remove the 66 screws. Detach the base support as Fig.12.
