LC-19LE320, LC-22LE320, LC-26LE320, LC-32LE320, LC-37LE320, LC-42LE320
35

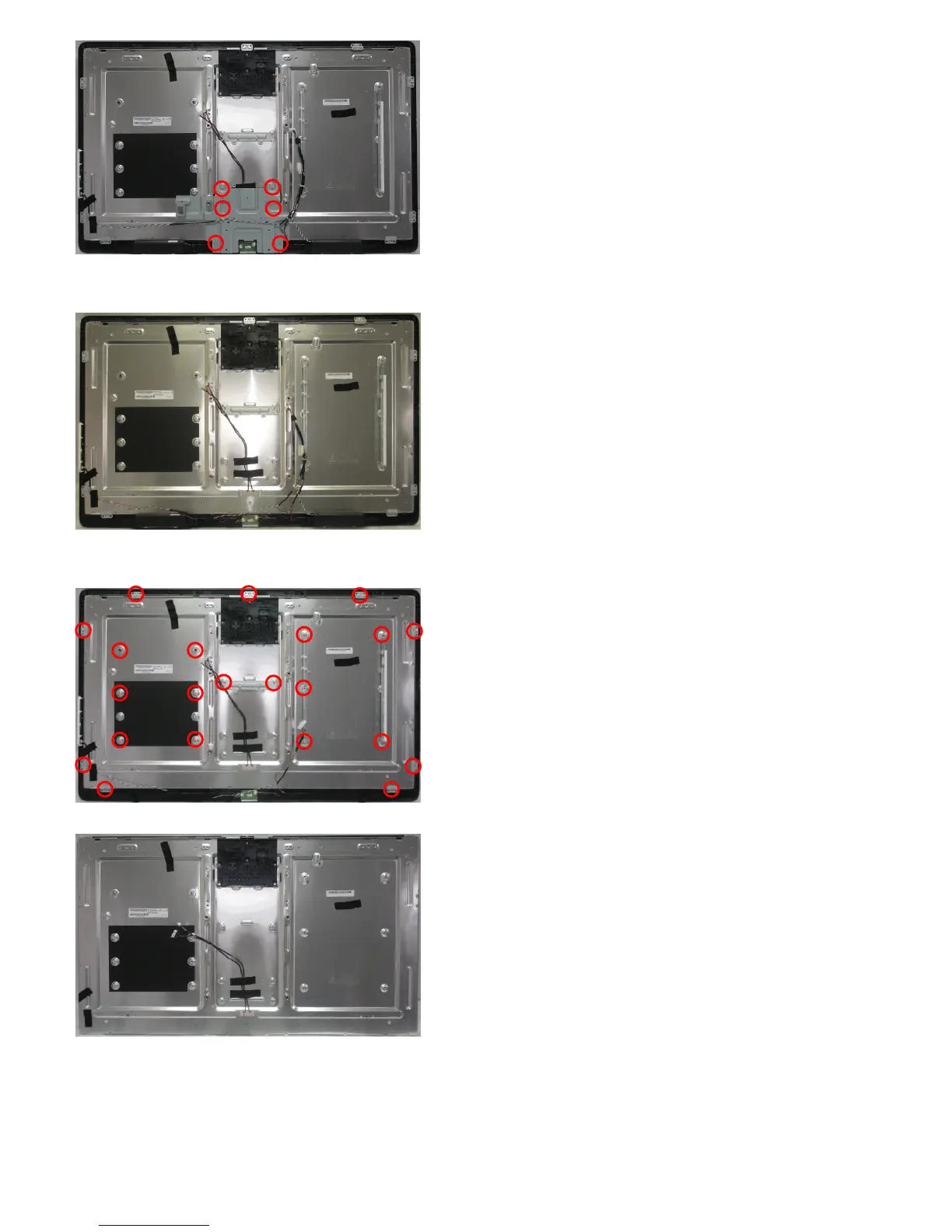

Fig.12
2. Release the speaker cable from its clamp, pull up and remove the speaker as Fig.13.
Fig.13
3. Remove the 22 screws to detach the Bracket and Bracket screws. Then take out of the panel from the bezel as Fig.14.
Panel:
Fig.14
Step 5. Remove the IR and Key board.
1. Disconnect 2 cables, then release the clips. Detach the IR board as Fig.15.
