LC-19S7E-BK LC-26S7E-BK LC-32S7E-BK
15
Fig.11

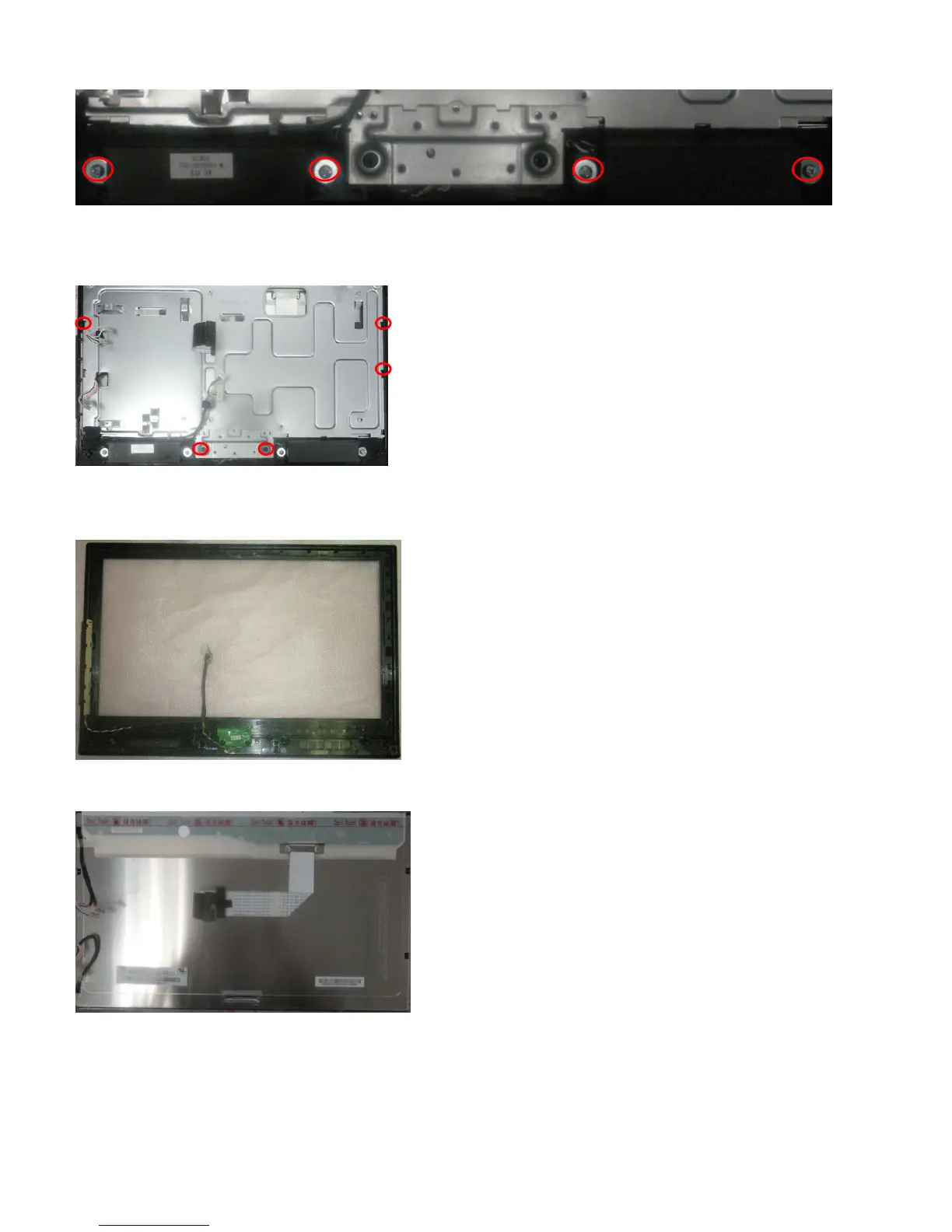

6. Remove the 4 screws .Detach the Speakers as Fig.12
Fig.12
Step 4. Remove the Metal Frame.
Remove the 5 screws. Detach the Metal Frame as Fig.13
Fig.13
Step 5. Remove the Bezel Assy.
1. Remove the Bezel Assy as Fig.14
Fig.14
2. The below picture is panel as Fig.15
Fig.15
REMOVING OF MAJOR PARTS(LC-26S7E-BK&LC-32S7E-BK)
1. Assy/Panel Removal
Notes: Please put your machine on soft material to avoid to scrape panel when you disassemble it.
Front view
To Next Page
