Sharp LC-19S7E-BK User Manual

LC-19S7E-BK LC-26S7E-BK LC-32S7E-BK

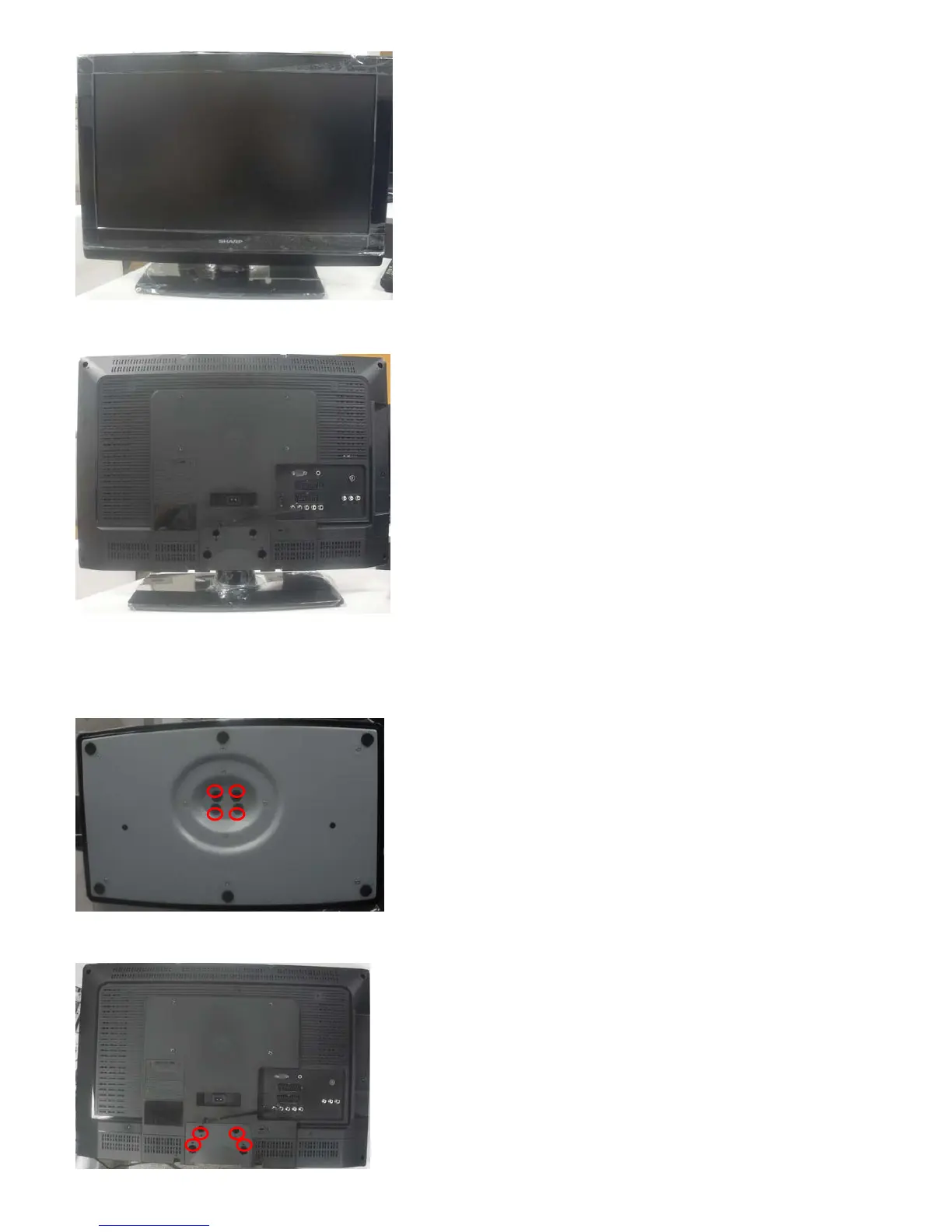

16
Fig.1
Back view
Fig.2
Step 1. Remove the Base Assy.
1. Remove the base plate as Fig.3.
Remove the 4 screws and pull out the base plate as Fig.3
Fig.3
2. Remove the 4 screws. Detach the BASE STAND as Fig.4.
Fig.4
