REMOVING OF MAJOR PARTS
(LC-19SK25U/LC-19SK25U-W)

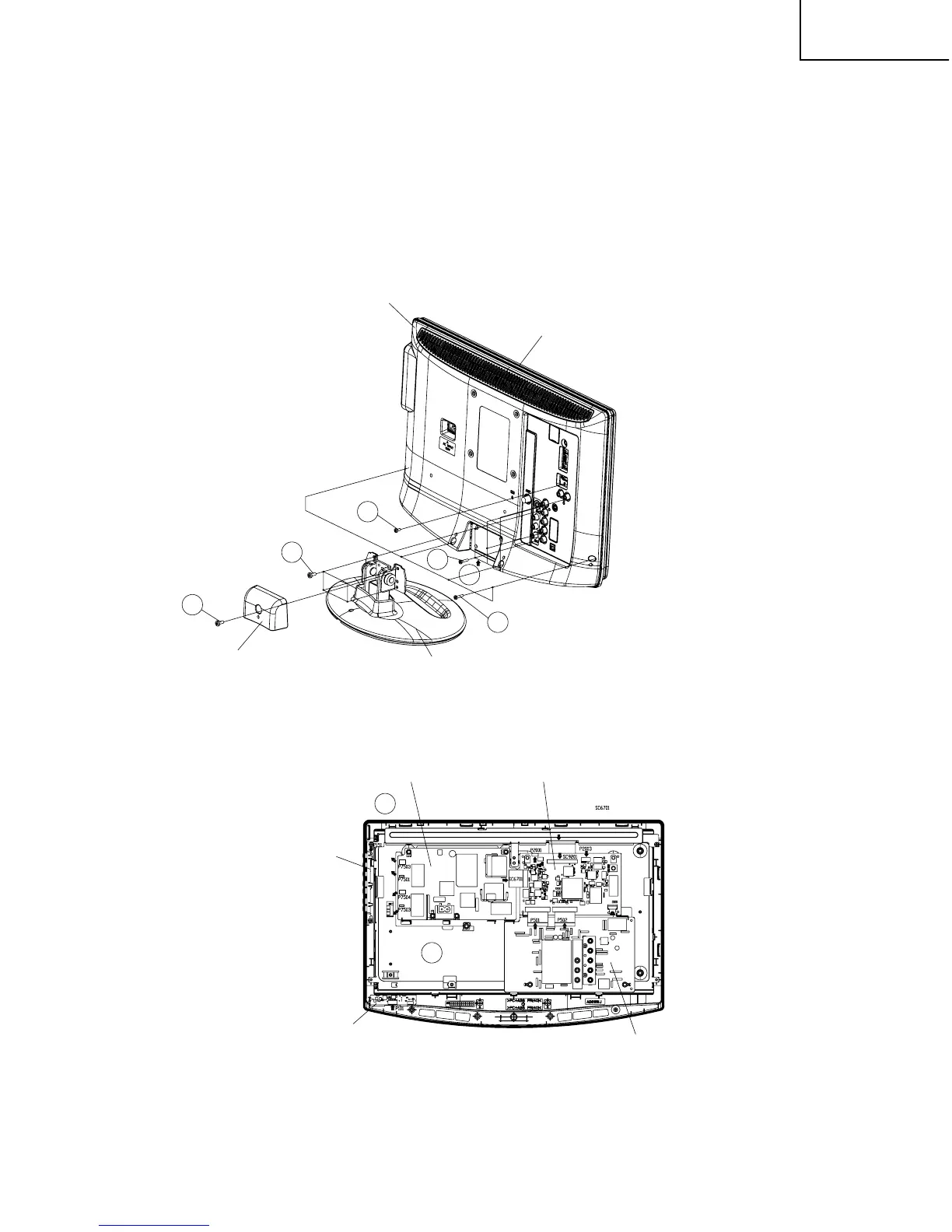

1. Remove the Stand HINGI Cover fixing screw (1 pc.).
2. Remove the stand fixing screws (4 pcs.).
3. Remove the cabinet B fixing screws (10 pcs.).
4. Remove the cabinet B after opening from the direction of an arrow.
5. Disconnect all the connectors from all the PWBs.
Cabinet B
Cabinet A
3
3
3
2
1
4
Stand HINJI Cover
Stand
5
5
Inverter PWB
Main PWB
BTN PWB
LED PWB
Sub PWB
