28
LC-19SK25U/U-W
LC-19SB25U/U-W
LC-19SB15U
LC-19D45U
5).

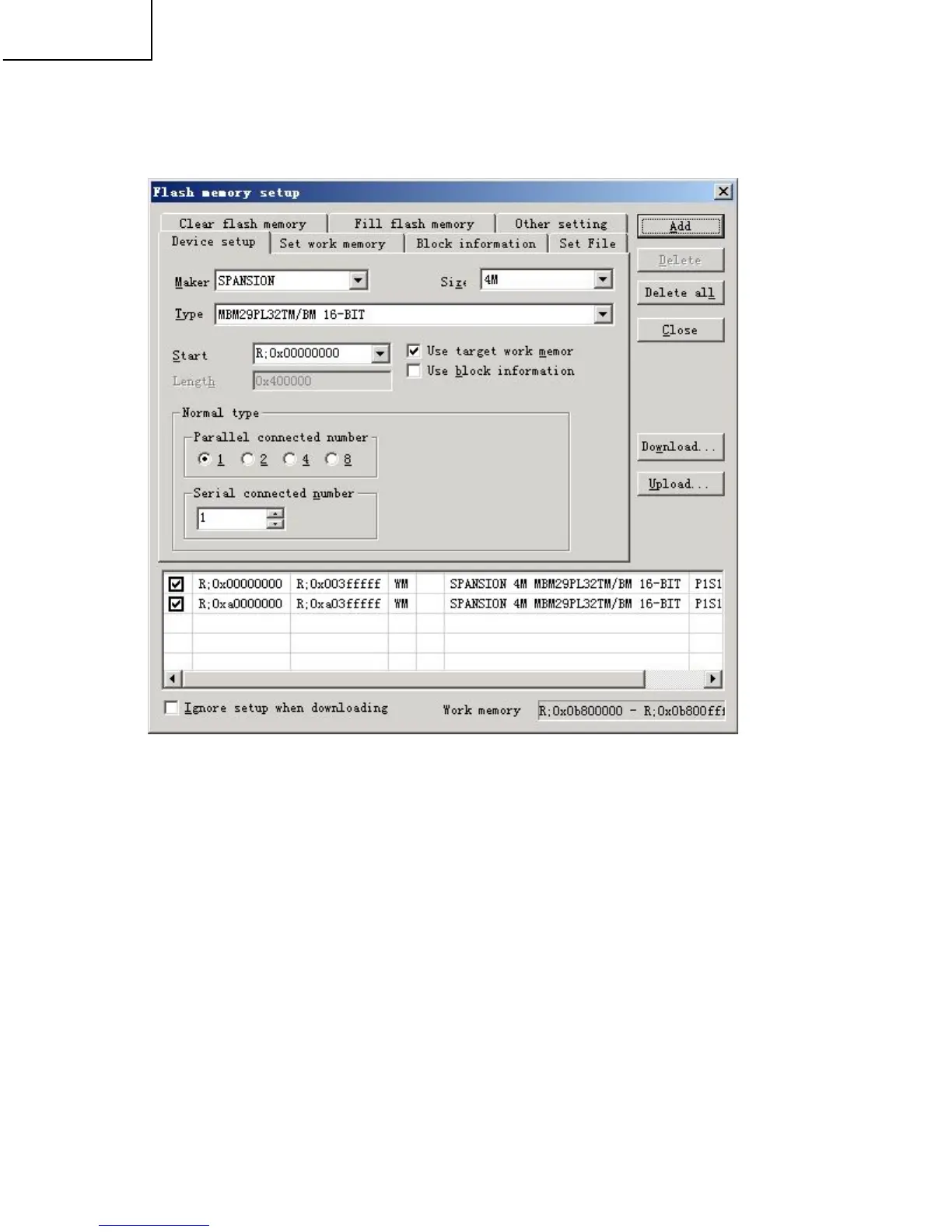

Enter menu Resource->Flash Memory->Device setup
Maker: SPANSION Size: 4M
Type: MBM29PL32TM/BM 16BIT
1. Start=0x00000000 “ADD”
2. Start=0xa0000000 “ADD”
6).
Flash Memory setup:
Start=0x0b800000 Range=0x1000
Press “Update work memory” then close.
27
29
Table of Contents
Table of Contents
1
ﾈ Important Service Safety Precaution
2
ﾈ Specifications
5
Part Names
7
ﾈ Operation Manual
7
Remote Control Unit
8
Basic Adjustment Settings
10
ﾈ Dimensions
11
ﾈ Removing of Major Parts
13
Adjusting Procedure of each Section
18
Adjustment Procedure
36
Software Version
39
Public Mode Setting Procedure
40
Troubleshooting Table
45
Major IC Informations
53
Block Diagram
54
Overall Wiring Diagram
56
Safety Notes
58
Description of Schematic Diagram
58
Schematic Diagram
59
RC/LED Unit
59
MAIN Unit
60
SUB Unit
78
POWER_INVERTER Unit
84
KEY Unit
86
Printed Wiring Board Assemblies
87
ﾈ Replacement Parts List
105
Packing of the Set
124
