LCD PANEL
ELECTRICAL ADJUSTMENTS

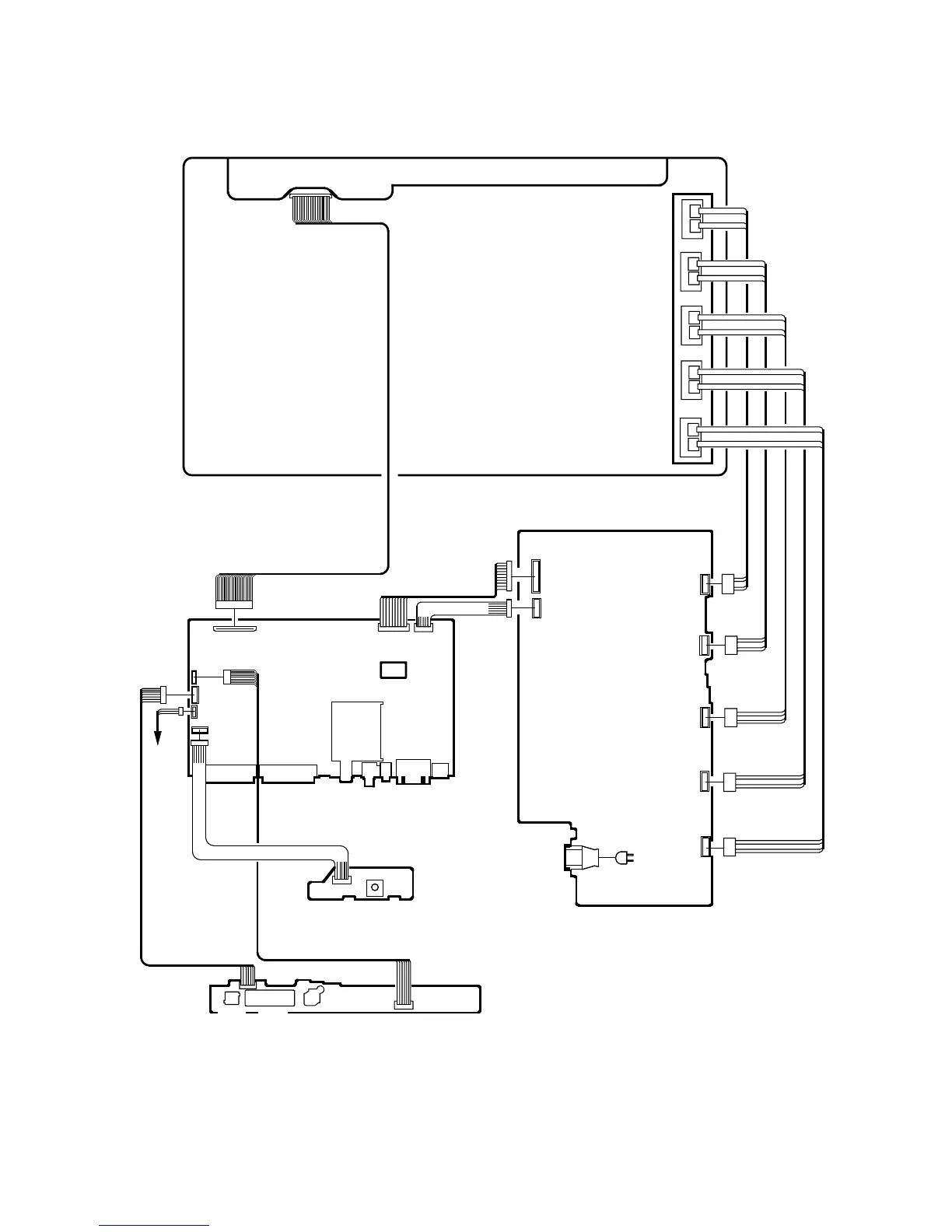

3. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION)
CP7201
CP102
POWER PCB
MAIN PCB
AC IN
CD3810
OS2201
CP2200
OPERATION PCB
REMOCON PCB
CD7201
D-4
CP503
CP4301
J4205 J4206
TU001
J4200
J4208
CP4302
CP3401
CP3400
CP302
CP301
CP4201
CP502
CD2200
J2200
J2201
J2202
CP2201
SPEAKER
CP6705
CP6703
CP6702
CP6701
CP6700
CP501
CD3401
CD3402
CD4302
CD306
