42
LC-22AD1E
RH-iXA416WJZZQ (ASSY:IC3202)

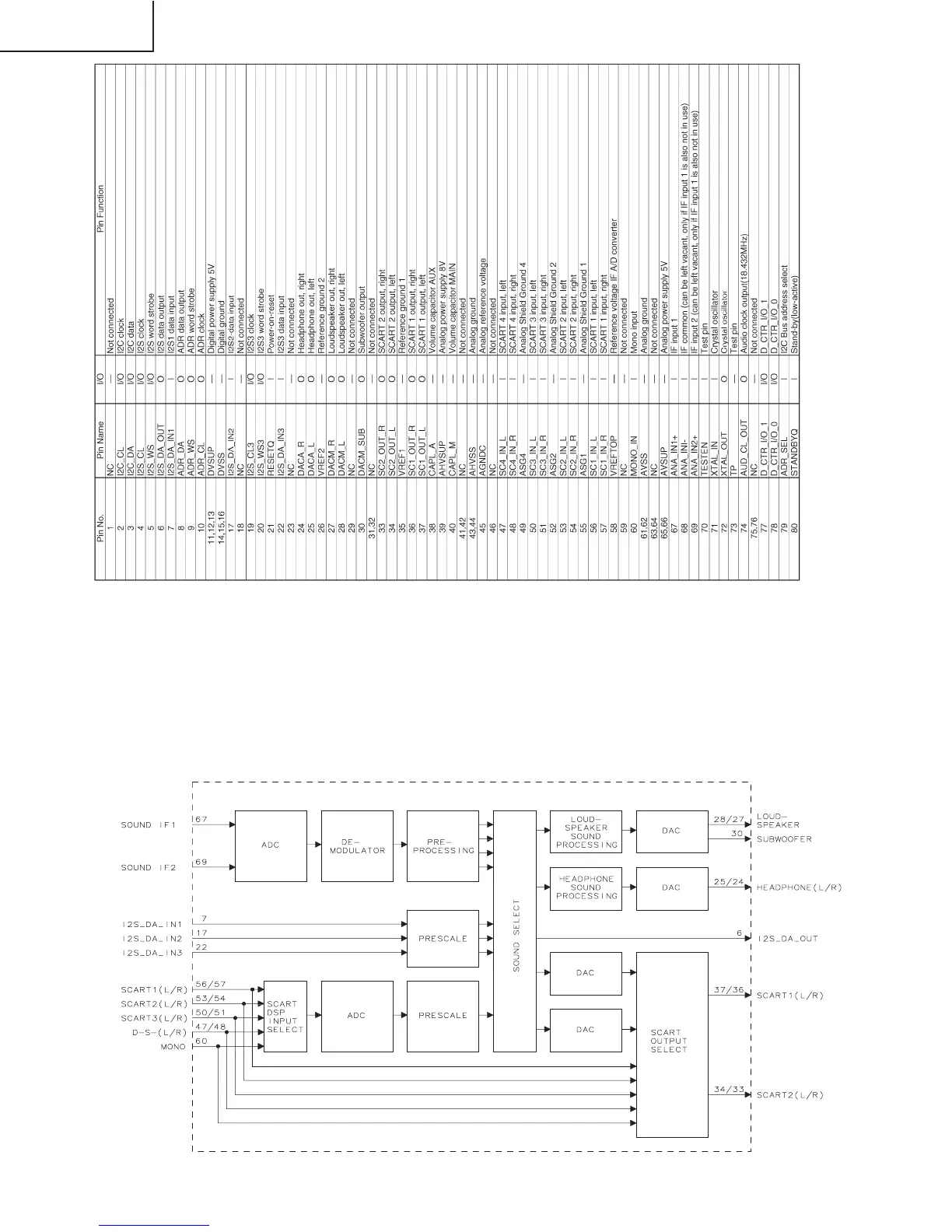

MSP (Muti Standard Sound Processor)
BLOCK DIAGRAM
Pin functions of MSP IC (IC3202) RH-iXA416WJZZ
