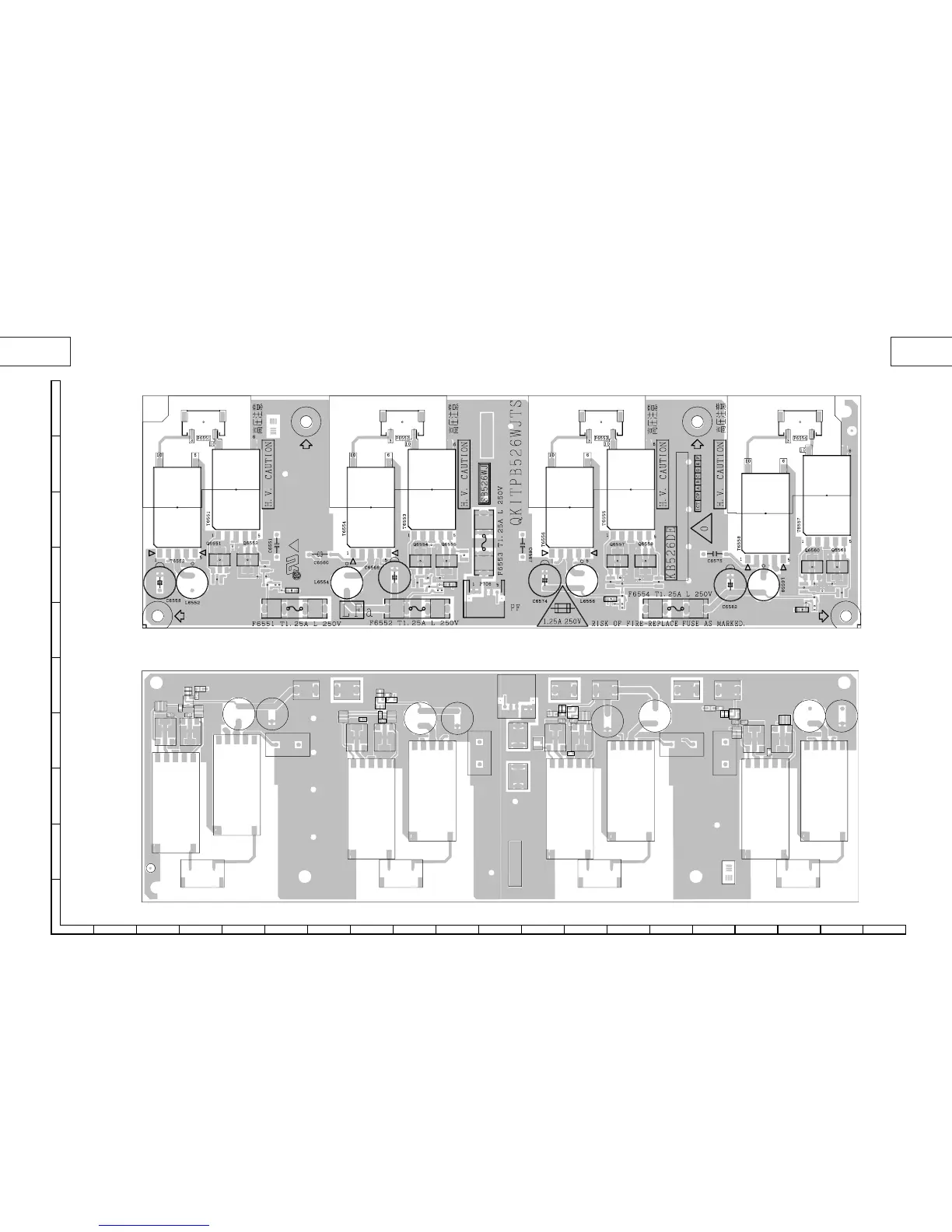

PRINTED WIRING BOARD ASSEMBLIES
INVERTER Unit (Side-A)
INVERTER Unit (Chip Parts Side-A)
C6580 D6554
R6566
R6565
Q6562
C6579
R6564
R6563
L6558 C6582
C6578 C6577
Q6561 Q6560
C6575
T6558
T6557
FDC1
P6554
P6553
T6555
T6556
Q6558 Q6557
C6569
C6570
L6556
R6560 R6559
C6571Q6559
D6553
R6561 R6562
C6572
FH6557 FH6558
FH6554
P706
R6557 C6564
Q6556
D6552 R6558
C6574
R6555
C6562 C6563
FH6556
Q6555 Q6554
R6556
C6567
C6561
FH6555
T6553
Z2
P6552
Z1
T6554
C6551
C6560
C6566
L6554
C6556 R6553
D6551 R6554
FH6553 FH6552 FH6551
L6552 C6558
Q6553
R6551
C6555 C6554
R6552
Q6552 Q6551
C6553
T6552
T6551
P6551
