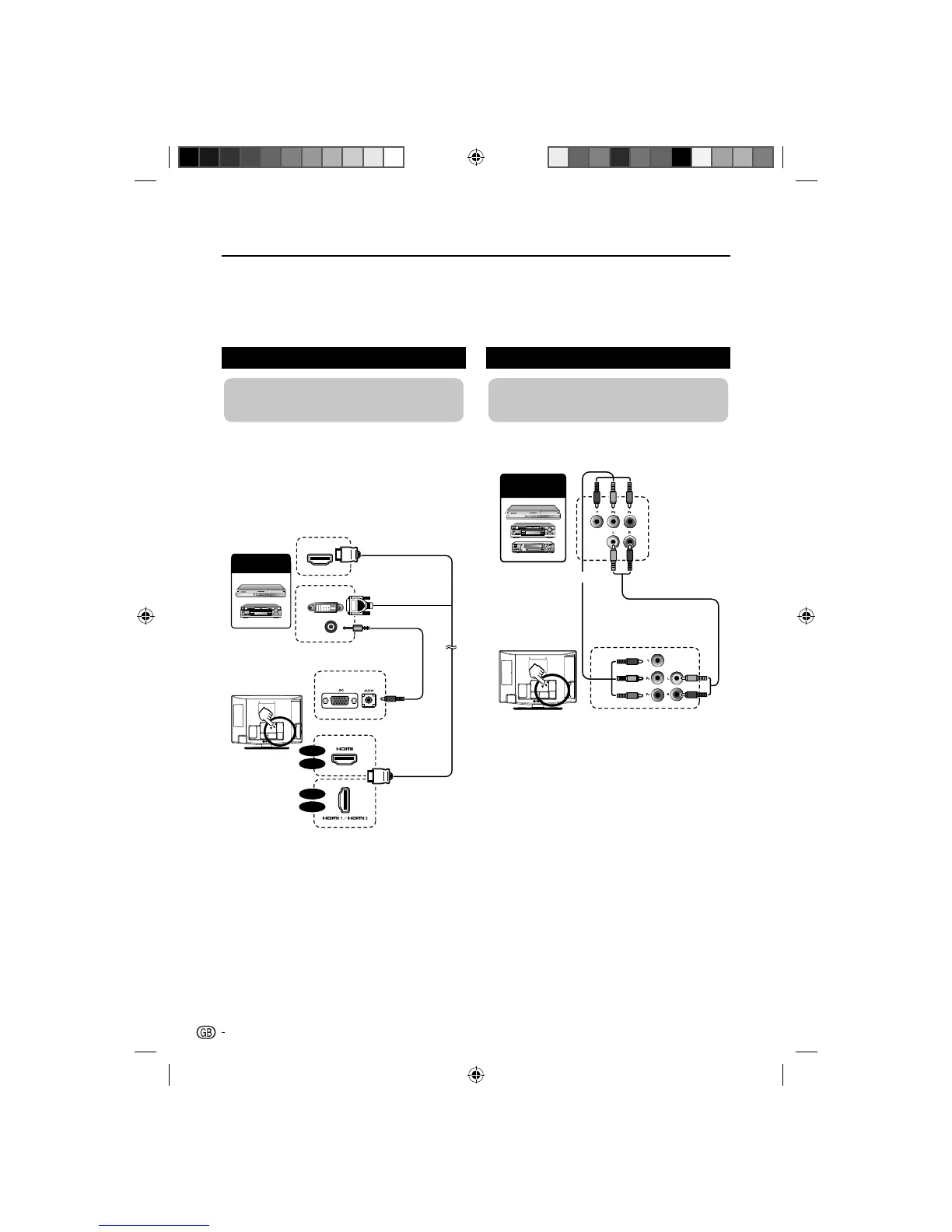

Connecting external devices
HDMI connection
Example of connectable devices
E DVD E Blu-ray player/recorder
The HDMI connections (High Definition Multimedia
Interface) permit digital video and audio transmission
via a connection cable from a player/recorder. The
digital picture and sound data are transmitted without
data compression and therefore lose none of their
quality. Analogue/digital conversion is no longer
necessary in the connected devices, which also would
result in quality losses.
HDMI
DVI
PC IN
DVI/HDMI conversion
Using an DVI/HDMI adapter cable, the digital video •
signals of a DVD can also be played via the compatible
HDMI connection. The sound must be fed in additionally.
Both HDMI and DVI use the same HDCP copy •
protection method.
Supported video signal:
480i, 480p, 576i, 576p, 720p, 1080i and 1080p
See page 35 for PC signal compatibility.
YPbPr (Component connection)
Example of connectable devices
E VCR E DVD E Blu-ray player/recorder
You will enjoy accurate colour reproduction and high
quality images through the (YPbPr) when connecting a
DVD recorder or other recording equipment.
COMPONENT
E
Before connecting ...
Be sure to turn off the TV and any devices before making any connections.•
Firmly connect a cable to a terminal or terminals.•
Carefully read the operation manual of each external device for possible connection types. This also helps you •
get the best possible audiovisual quality to maximise the potential of the TV and the connected device.
HDMI device
HDMI cable
DVI-HDMI cable
Audio cable
(YPbPr) Component
Connection
Component cable
Audio cable
19”
22”
26”
32”
32
