Sharp LC-22LE510K User Manual

English - 9 -

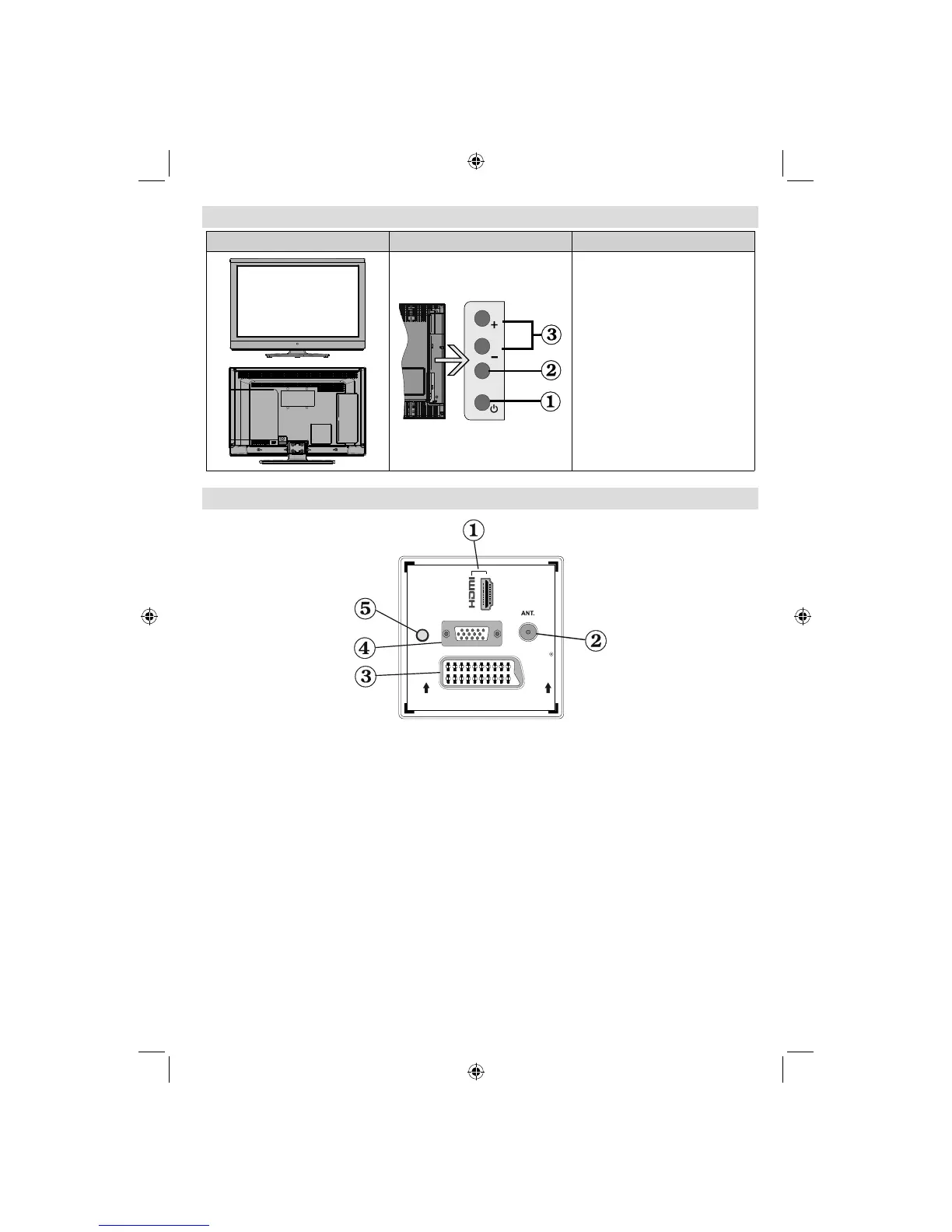

LCD TV and Operating Buttons
FRONT and REAR VIEW Control buttons VIEW Control Buttons
P\V-A
V
1. Standby Off/On button
2. TV/AV button
3. Programme Up/Down buttons-
Volume Up/Down buttons
Note:You can use +/- buttons
to change volume. If you want
to change channels, press P/V/
AV button once and then use
+/- buttons. If you hold the P/V/
AV button about a few seconds,
source OSD will be displayed.
Main menu OSD cannot be
displayed via control buttons.
Viewing the Connections - Back Connectors
SPDIF
SCART
VGA
Coax.OUT
1
HDMI 1: HDMI Input1.
HDMI Inputs are for connecting a device that has an HDMI socket. Your LCD TV is capable of
displaying High Defi nition pictures from devices such as a High Defi nition Satellite Receiver or DVD
Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets
can accept either 720p or 1080i signals. No sound connection is needed for an HDMI to HDMI
connection.
RF Input2. connects to an aerial antenna system.
Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device
to the television with an appropriate antenna cable, as shown in the illustration in the following pages.
SCART 3. input or output for external devices. Connect the SCART cable between SCART socket on TV and
SCART socket on your external device (such as a decoder, a VCR or a DVD player).
Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.
Note: S-VHS signal is supported via the scart socket.
PC Input4. is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.
SPDIF Coaxial Out5. outputs digital audio signals of the currently watched source.
Use an SPDIF coaxial cable to trasfer audio signals to a device that has SPDIF input
00_MB60_[GB]_1910UK_IDTV_PVR_BRONZE17_22942LED_YPBPR_ROCKER_10072632_50186842_td01.indd 900_MB60_[GB]_1910UK_IDTV_PVR_BRONZE17_22942LED_YPBPR_ROCKER_10072632_50186842_td01.indd 9 06.07.2011 17:31:1906.07.2011 17:31:19

Sharp LC-22LE510K Specifications

General

Screen shape	-
Response time	- ms
Display diagonal	22 \
Display brightness	- cd/m²
LED backlighting type	Edge-LED
Display diagonal (metric)	55 cm
3D	No
Annual energy consumption	31 kWh
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-T
Audio decoders	Dolby Digital, Dolby Virtual Speaker
RMS rated power	5 W
Number of speakers	2
HDMI version	1.3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Heavy metals free	Pb (lead)
Panel mounting interface	75 x 75 mm
Power consumption (off)	0.01 W
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth (with stand)	149 mm
Height (with stand)	377 mm
Weight (with stand)	4350 g
Depth (without stand)	35 mm
Width (without stand)	535 mm
Height (without stand)	353 mm
